Description

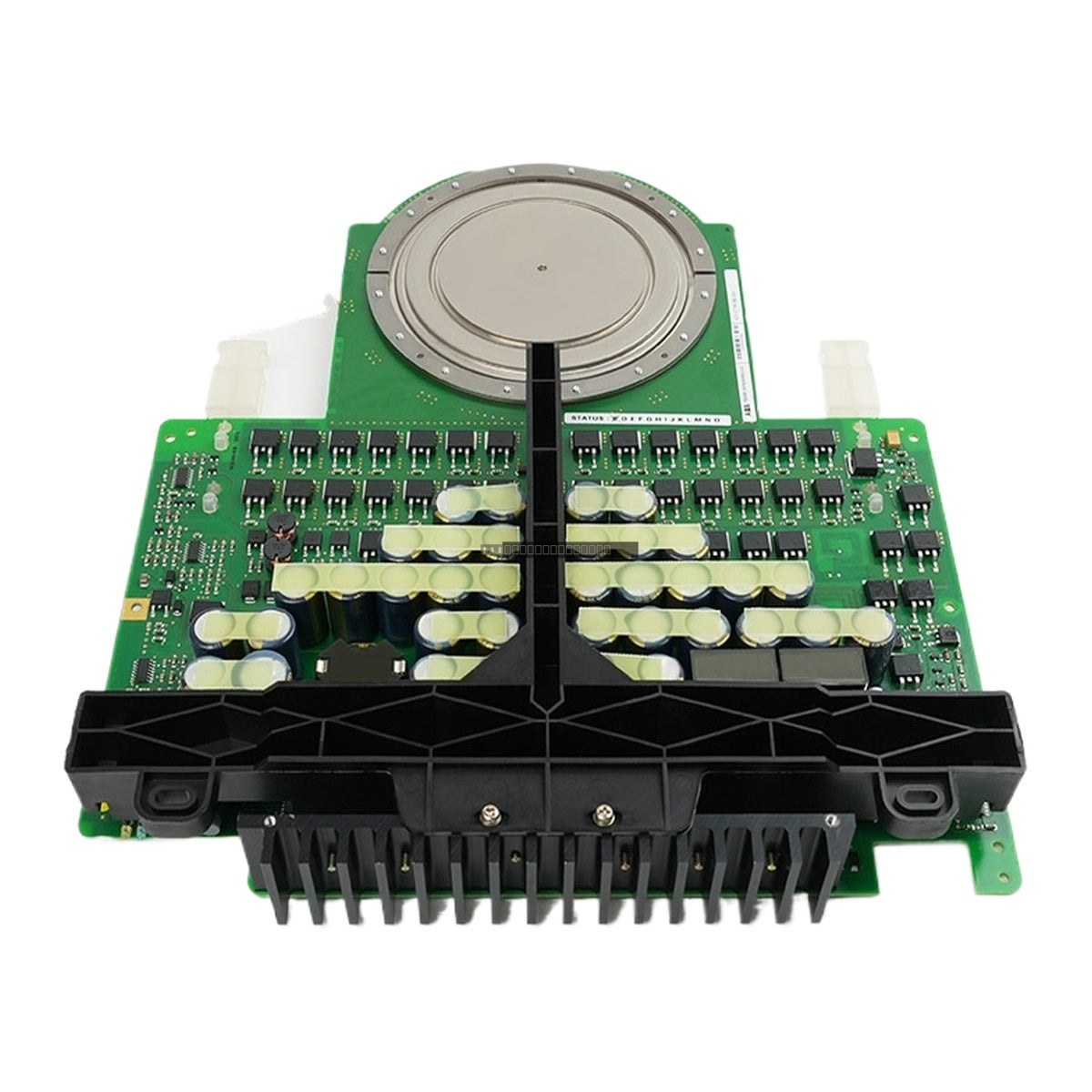

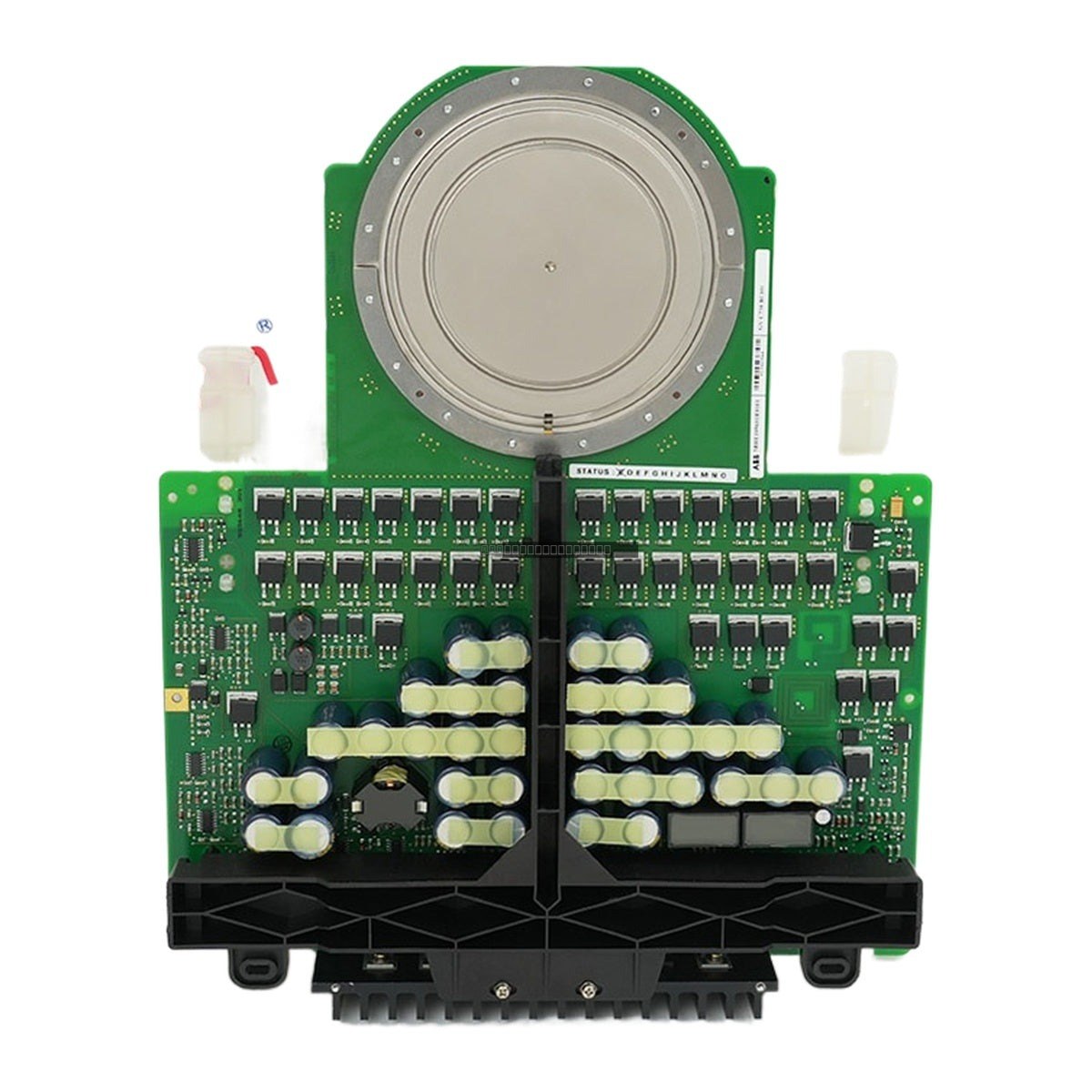

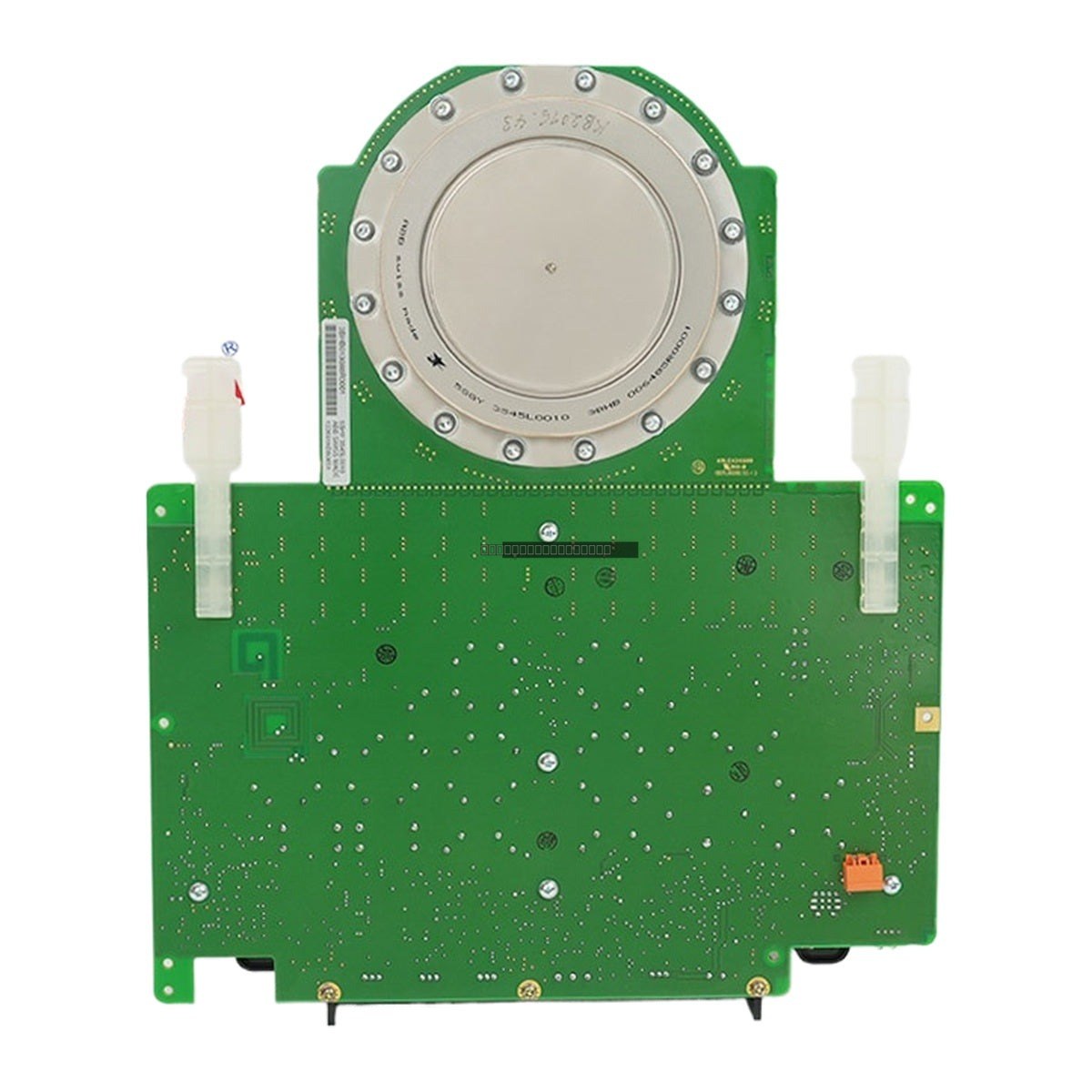

The ABB 3BHB013088R0001 (also referenced by 5SHY3545L0010, 3BHE009681R0101, GVC750, and BE101) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial power electronics applications. This power semiconductor module is engineered for high-voltage switching, providing robust performance in medium-voltage drives and power conversion systems.

Features

• High blocking voltage capability up to 4500V.
• Optimized for high-current applications with an average on-state current of 3500A.
• Fast switching characteristics with turn-on times under 5 microseconds and turn-off times under 10 microseconds.
• Supports switching frequencies up to 500Hz.
• Designed for high reliability in harsh industrial environments with a wide junction temperature range.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the drive system before handling or installing the IGCT module.
• Handle with care to avoid damage to the ceramic housing and contact surfaces; use appropriate ESD protection.
• Ensure proper thermal contact with the cooling system; use recommended thermal interface materials to maintain junction temperatures within specified limits.
• Verify that all electrical connections are clean and tightened to the manufacturer's specified torque values to prevent localized heating.
• Ensure the gate drive unit is properly connected and verified before applying main power to the module.

FAQ

What is the primary function of this module? This is an IGCT (Integrated Gate-Commutated Thyristor) module used for high-power switching in ABB medium-voltage drives and industrial power converters.

What are the key temperature limits for this device? The module is rated for operation at junction temperatures between -40 degC and +125 degC, with a storage temperature range of -40 degC to +140 degC.
