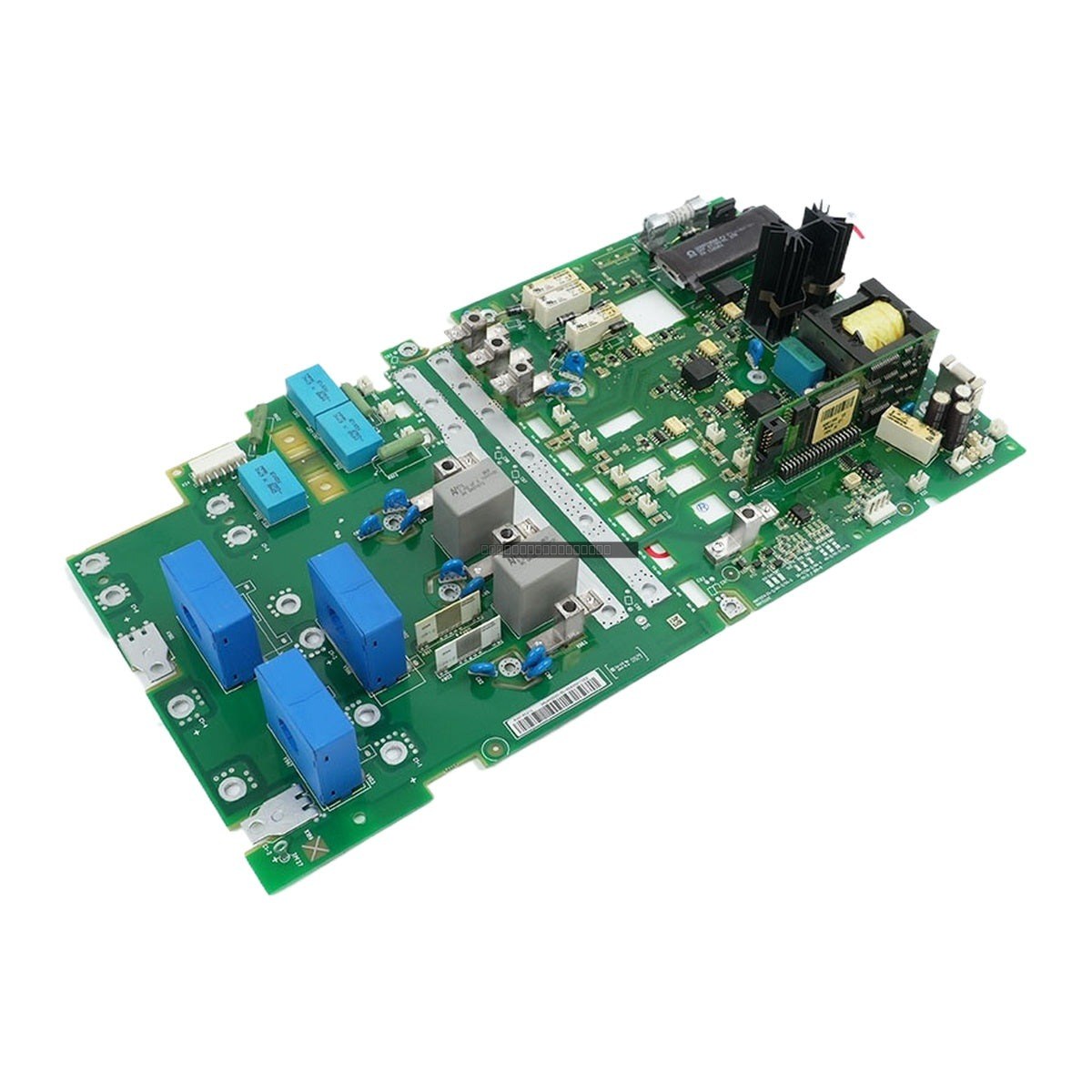

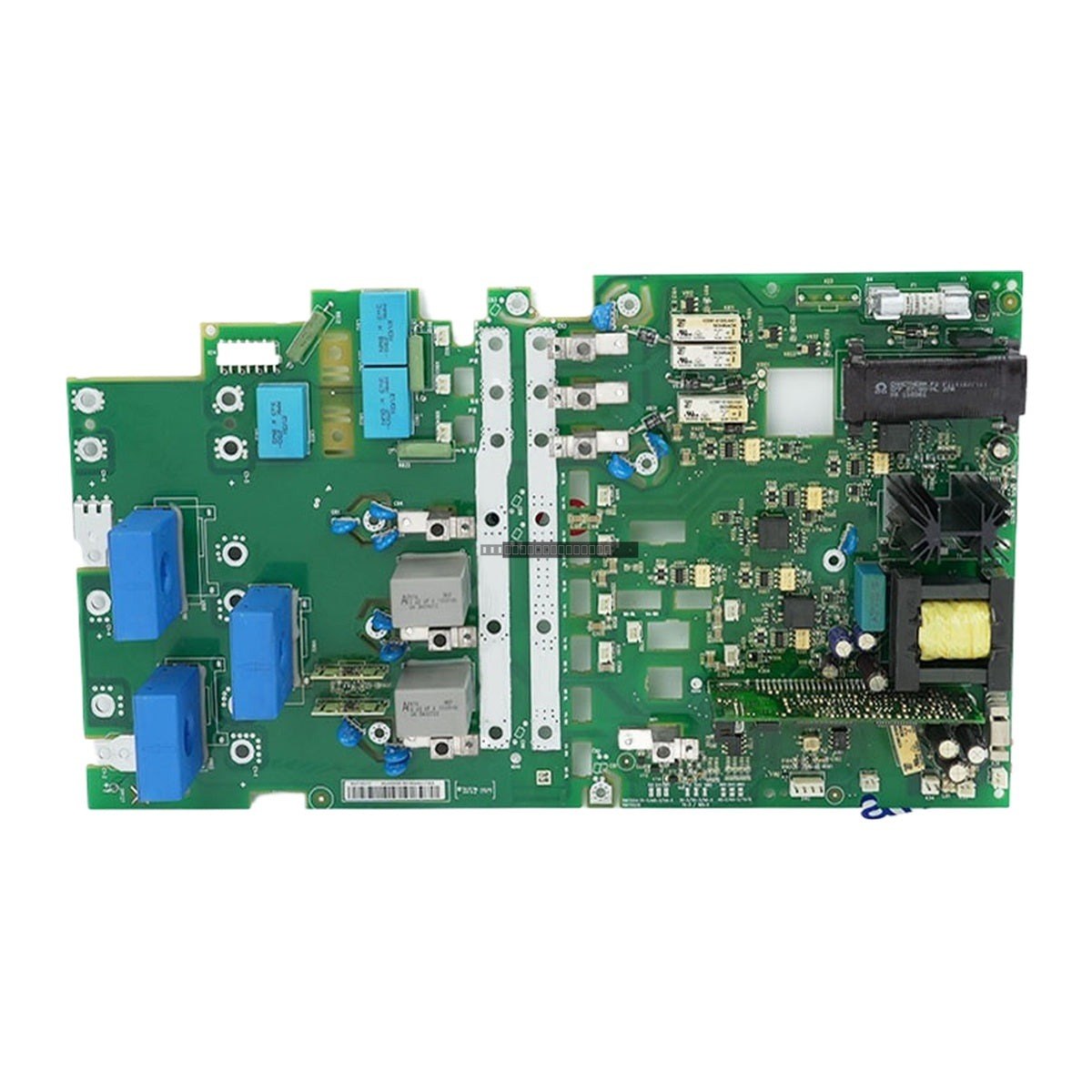

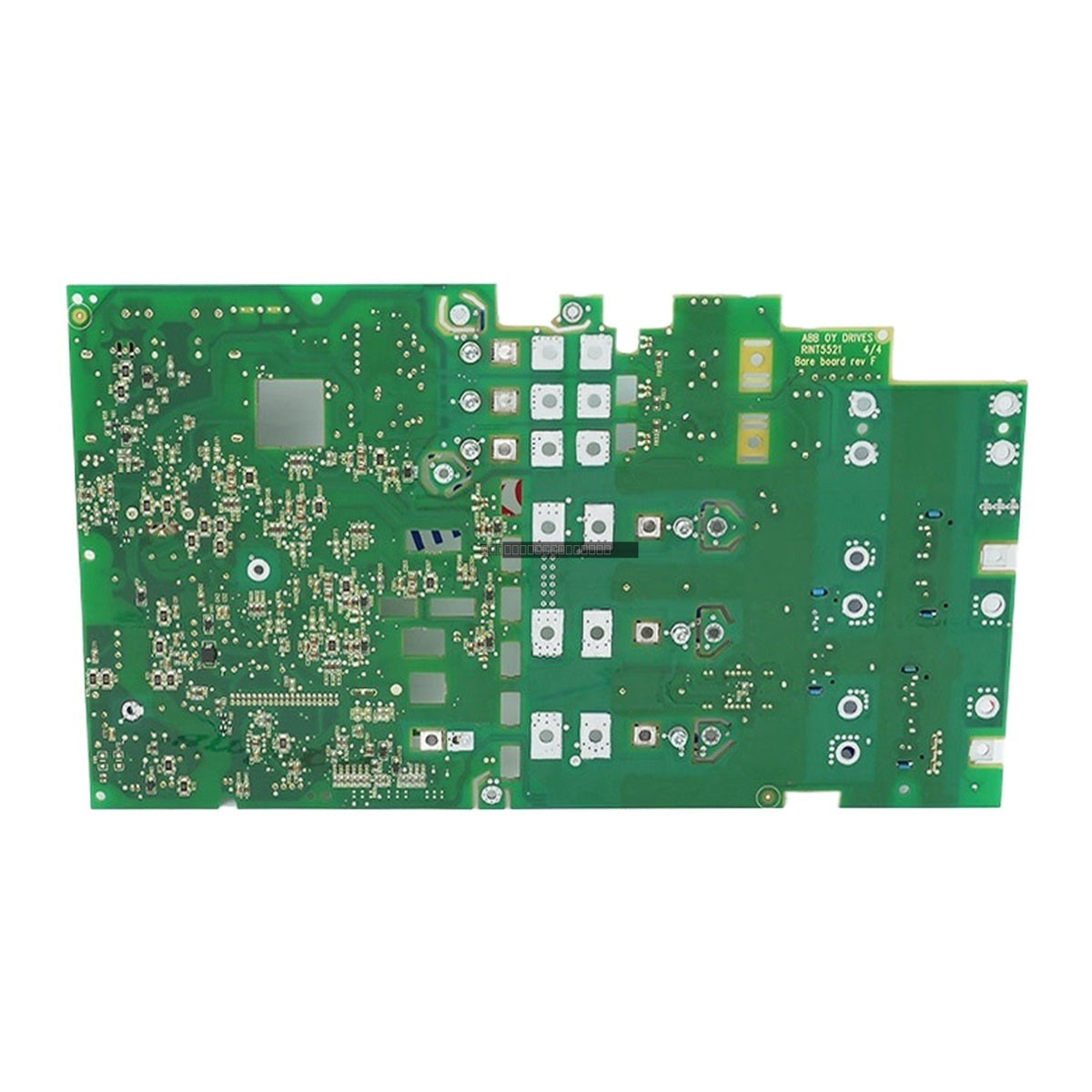

The ABB RINT-5521C (3AUA0000016016E) is a high-performance Main Circuit Interface and IGBT Gate Driver board engineered for the ABB ACS800 series variable frequency drives. This module is essential for managing power switching in industrial inverter systems, typically supporting units within the 55 kW to 75 kW power range.

Features

• Designed specifically for ABB ACS800 series drive architecture.
• Functions as a critical IGBT Gate Driver Interface Board.
• Supports Safe Torque Off (STO) functionality, meeting SIL 3 safety standards.
• Provides galvanic isolation for I/O signals to protect control logic from high-power circuit transients.
• Includes advanced thermal monitoring for IGBT junction and heat sink temperature management.
• Supports motor thermal protection estimation based on real-time load data.

Applications

• Power Generation: Control of pumps, fans, and auxiliary rotating equipment in power plants.
• Oil & Gas: Management of large motor drives in pumping stations, drilling platforms, and pipelines.
• Metallurgy & Mining: Startup and operational monitoring for heavy-duty industrial machinery.
• Chemical Processing: Precise speed and torque control for critical rotating equipment.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect all power sources from the drive before attempting to install or remove the RINT-5521C board.
• ESD Protection: Use an anti-static wrist strap and grounded work surface to prevent electrostatic discharge damage to sensitive electronic components.
• Configuration: Note that this board may require specific configuration (such as soldering jumpers) to match the current scaling for phases U, V, and W based on the specific inverter frame size.
• Seating: Ensure the board is firmly seated in the designated drive slot and all ribbon cables or connectors are fully engaged and locked.
• Environment: Ensure the drive cabinet provides adequate ventilation to maintain operating temperatures within the specified range.

FAQ

What is the primary function of the RINT-5521C?

The RINT-5521C acts as the main circuit interface and gate driver board for the ACS800 drive, facilitating the switching of IGBTs and providing essential safety and thermal monitoring signals.

Which drive models are compatible with this board?

This board is compatible with various ABB ACS800 series units, including the ACS800-01, ACS800-04, and ACS800-11 models within the 55 kW to 75 kW range.

Does this board support safety features?

Yes, it supports the Safe Torque Off (STO) function, which is designed to prevent the motor from generating torque, adhering to SIL 3 safety requirements.
