Description

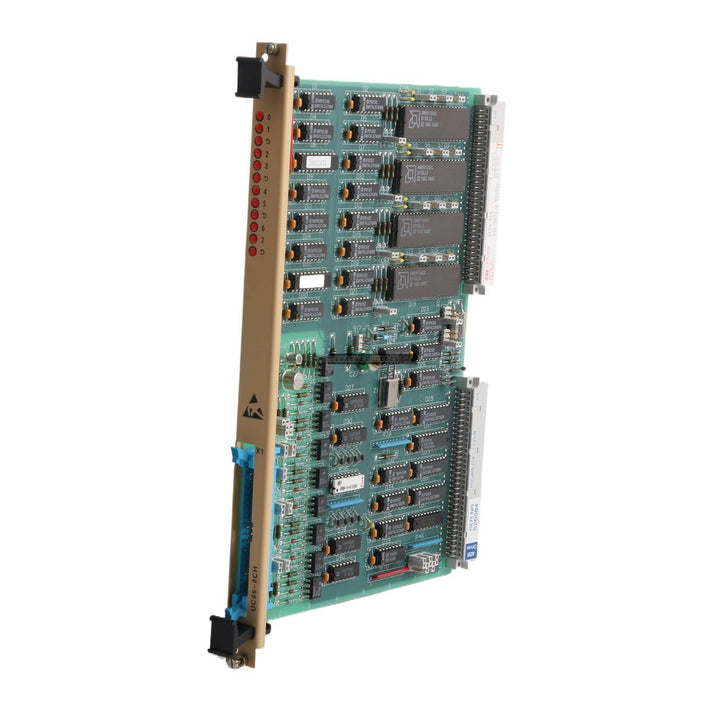

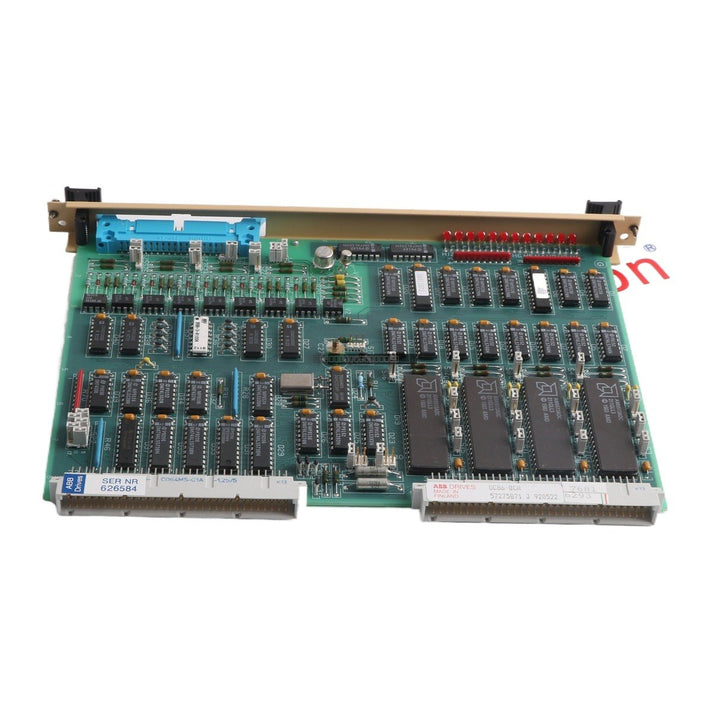

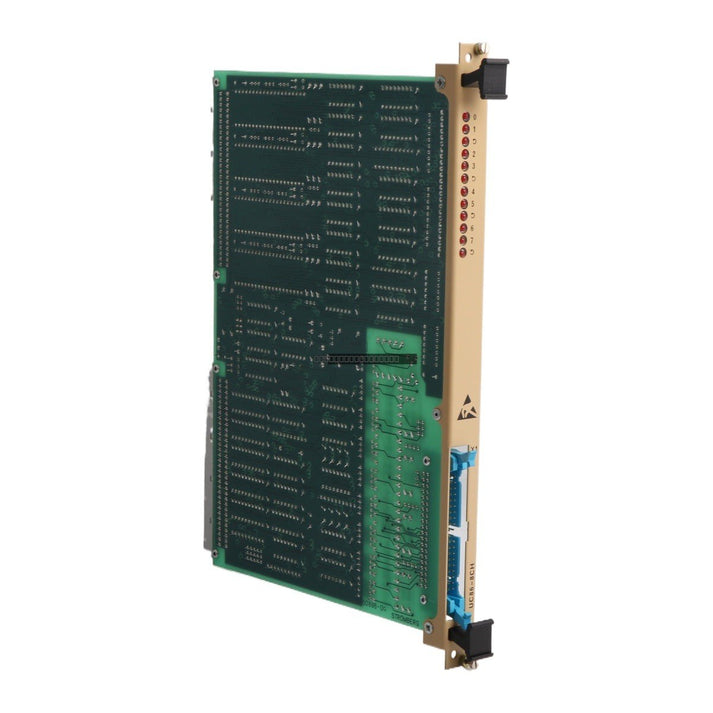

The ABB UC86-8CH is an 8-channel universal counter board designed for high-precision pulse counting and timing applications within industrial control environments. This module provides robust signal processing capabilities, featuring integrated system timing controllers to ensure synchronization and accuracy in demanding automation tasks.

Features

• 8 independent counter channels for versatile signal monitoring.
• Equipped with a latching front connector for secure and reliable field wiring.
• Integrated front-end status LEDs provide immediate visual feedback on channel activity and operational state.
• Includes four dedicated system timing controllers for precise time-base management.
• Designed for seamless integration into ABB drive and control system architectures.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the rack or cabinet before installing or removing the module to prevent electrical damage.
• Handle the board using ESD-safe practices to protect sensitive internal components from electrostatic discharge.
• Verify that the latching front connector is fully seated and locked to prevent intermittent signal loss due to vibration.
• Ensure adequate ventilation around the module housing to maintain operating temperatures within the manufacturer's specified range.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

What is the primary function of the UC86-8CH?

The UC86-8CH is a universal counter board used to process and track pulse signals across eight channels, typically utilized for speed monitoring, flow measurement, or position feedback in industrial systems.

Does this module require specific wiring connectors?

Yes, this board utilizes a latching front connector system. Ensure that your field wiring harness is compatible with this connector type to ensure a secure mechanical and electrical connection.

How can I verify the status of the channels?

The module is equipped with front-end status LEDs that allow operators to monitor the operational health and signal activity of each channel directly from the front panel.
