Description

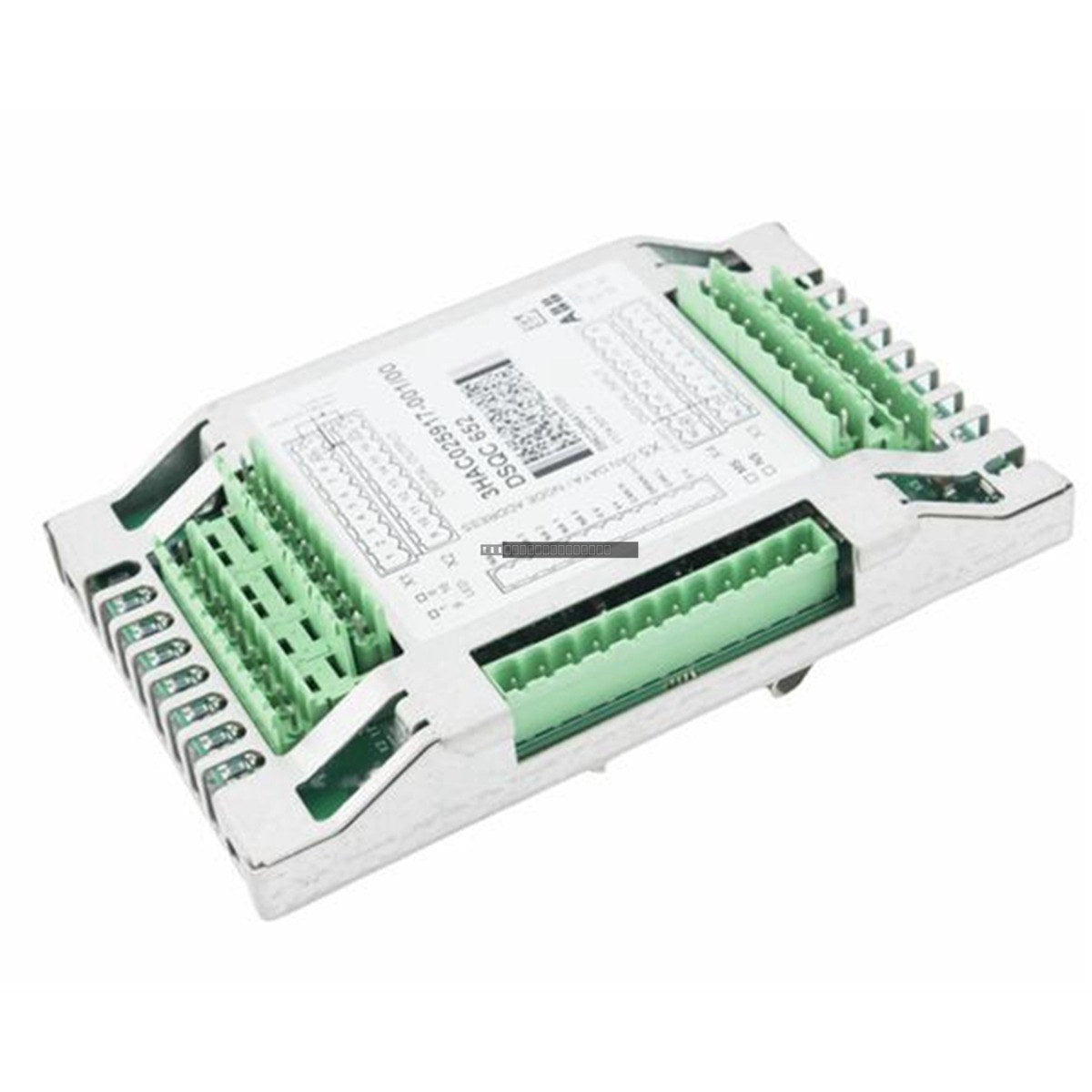

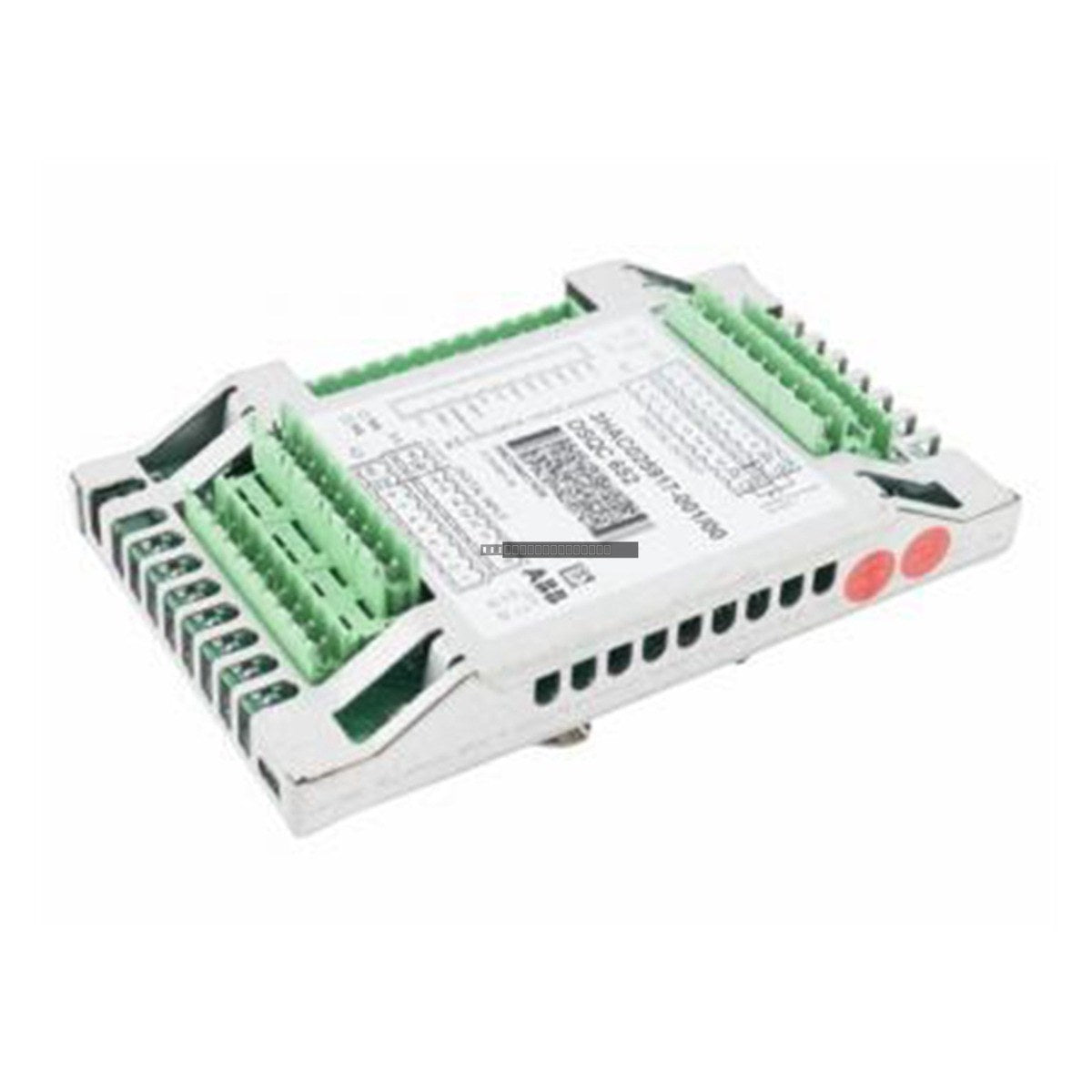

The ABB DSQC652 (3HAC025917-001) is a specialized digital I/O unit engineered for integration within ABB robotic control systems. This module provides essential input/output interfacing capabilities, facilitating reliable communication between the robot controller and external field devices. It is designed to handle standard 24 V DC signaling environments common in industrial automation, ensuring high-speed data acquisition and process control.

Features

• Equipped with 16 digital input channels for comprehensive monitoring of peripheral sensors and switches.
• Optimized for 24 V DC operation with a robust input voltage threshold range of 15 to 35 V.
• Features low response latency, with a delay of 0.5 ms or less, suitable for time-sensitive robotic tasks.
• Minimal power dissipation of 150 mW per channel, promoting efficient thermal management within the control cabinet.
• Designed for durability under standard industrial temperature conditions.

Technical Specifications

Installation Guidelines

• Ensure the robot controller is fully powered down before attempting to install or remove the DSQC652 module.
• Handle the unit using ESD-safe practices to prevent damage to internal circuitry.
• Verify that the module is securely seated in the designated rack slot to ensure proper backplane connection.
• Maintain proper cable routing for I/O signals, keeping them separated from high-voltage power lines to minimize electromagnetic interference (EMI).
• Verify that the operating environment remains within the specified temperature and humidity ranges to ensure long-term reliability.

FAQ

What is the primary function of the ABB DSQC652?
The DSQC652 is a digital I/O unit designed to interface external digital signals with ABB robot controllers, allowing the robot to monitor and interact with its surrounding work cell.

Can this unit be used in high-temperature environments?
The module is rated for operation up to 55 degC. Ensure the cabinet ventilation system is sufficient to keep internal temperatures within this limit.

Is this module hot-swappable?
No. For the safety of the module and the controller, always remove power from the system before installing or removing any I/O modules.
