Description

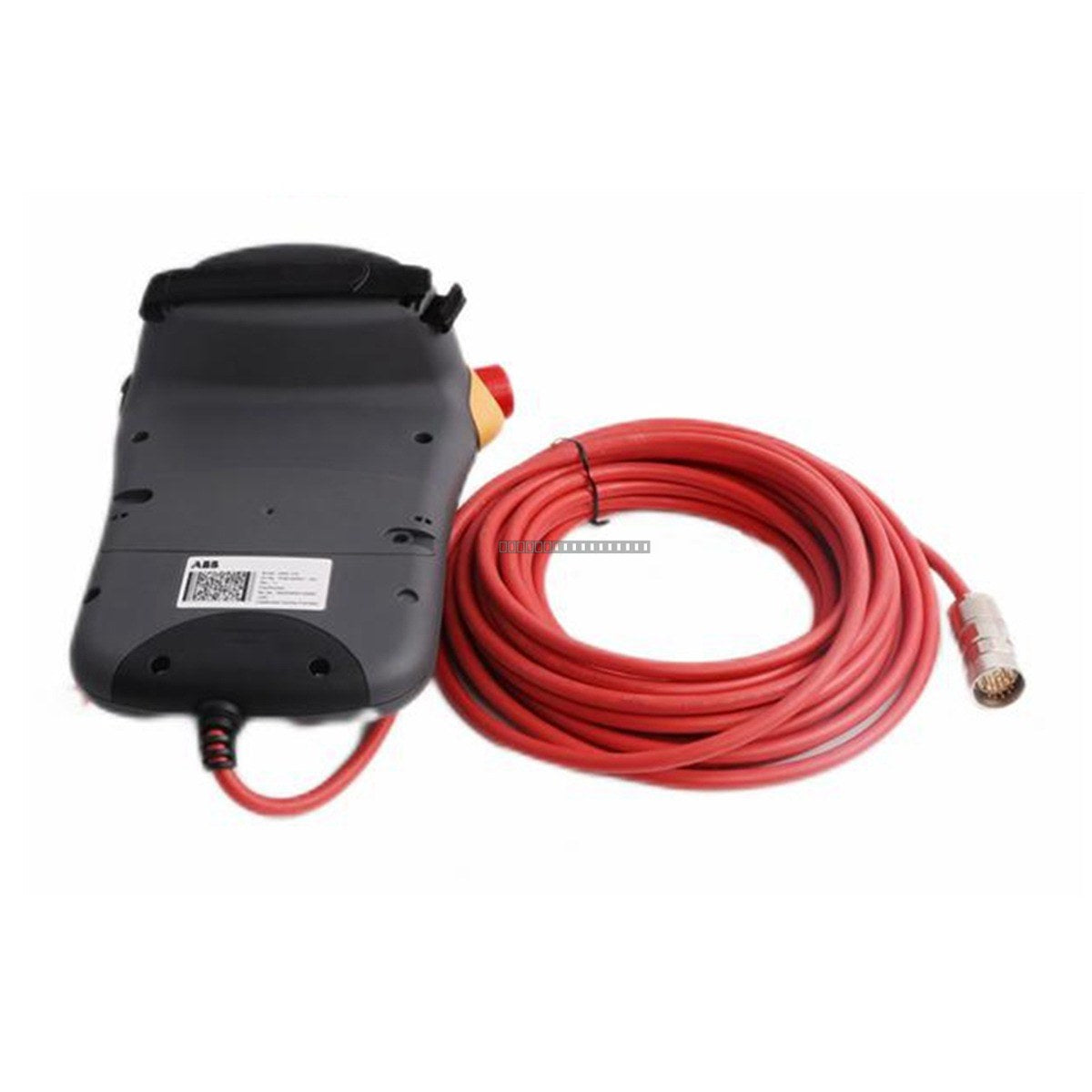

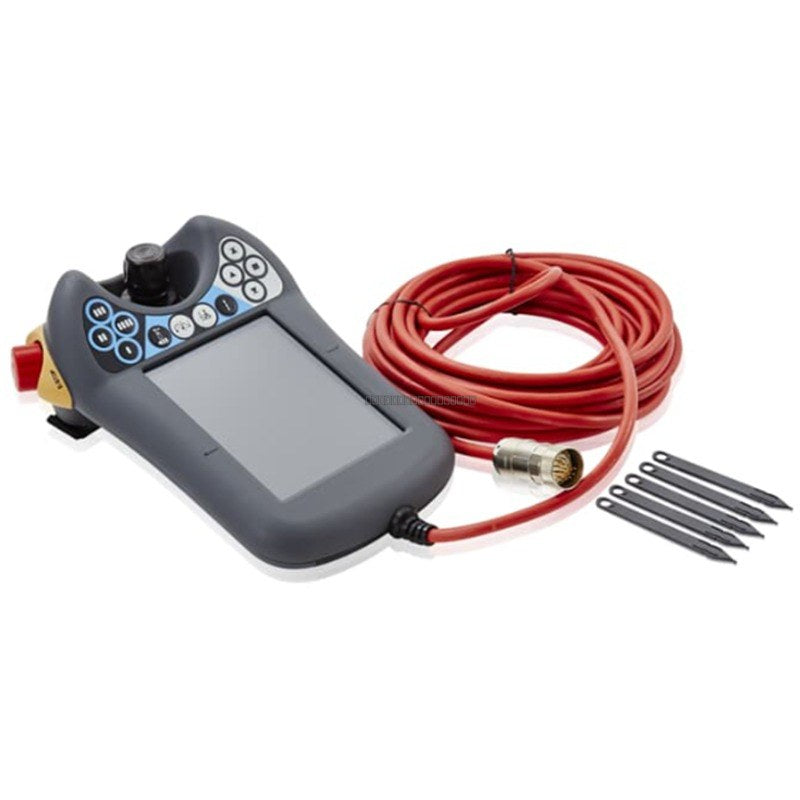

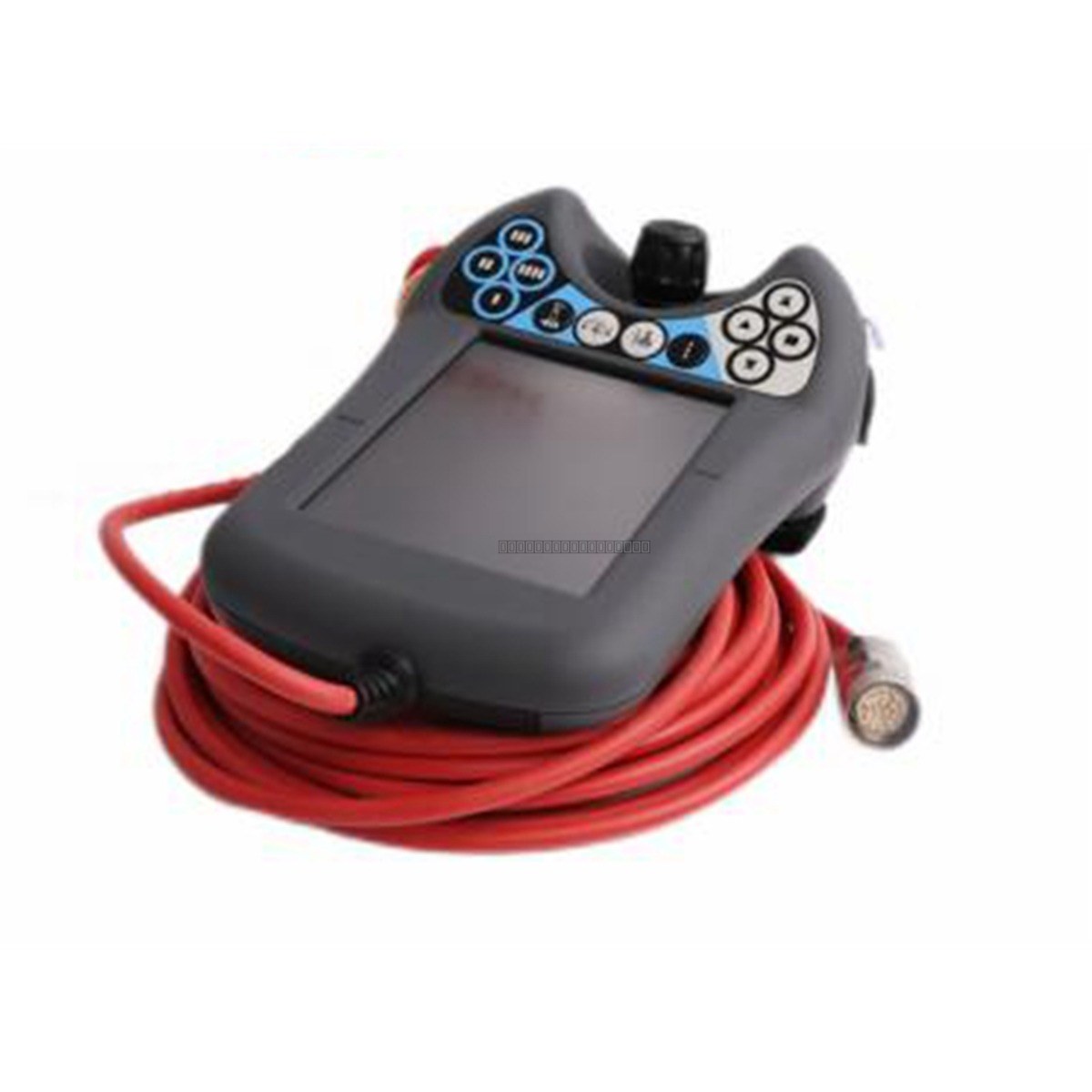

The ABB DSQC 679 (Order Code: 3HAC028357-001) is a high-performance Teach Pendant designed for use with ABB industrial robot controllers. This operator interface unit allows for manual control, programming, and monitoring of robotic systems, providing a direct human-machine interface for commissioning, path teaching, and diagnostic tasks on the factory floor.

Features

• Ergonomic design for comfortable manual operation during extended programming sessions.
• High-resolution display for clear visualization of robot status, coordinates, and program code.
• Integrated safety features, including an emergency stop button and enabling device (deadman switch).
• Durable construction suitable for harsh industrial environments.
• Direct connectivity to ABB robot controller systems for real-time interaction.

Applications

This Teach Pendant is utilized in various robotic automation applications, including automotive assembly, material handling, arc welding, and palletizing. It is essential for initial robot calibration, fine-tuning of motion paths, and troubleshooting system errors during production cycles.

Technical Specifications

Installation Guidelines

• Ensure the robot controller is powered down before connecting or disconnecting the Teach Pendant cable to prevent electrical surges or port damage.
• Route the communication cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure stable signal integrity.
• Verify that the connector pins are clean and free of debris before insertion.
• Store the unit in a secure, dry location when not in use to prevent mechanical damage to the screen or housing.
• Handle with care; avoid dropping the unit, as it contains sensitive electronic components and a high-precision display.

FAQ

Is this Teach Pendant compatible with all ABB controllers?

The DSQC 679 is specific to certain generations of ABB robot controllers. Please verify your controller model and software version against the 3HAC028357-001 part number before installation to ensure compatibility.

Does this unit include the connection cable?

This listing is for the Teach Pendant unit. Please check your specific hardware requirements to confirm if your existing cabling is compatible or if additional interface accessories are required for your specific controller cabinet.
