Description

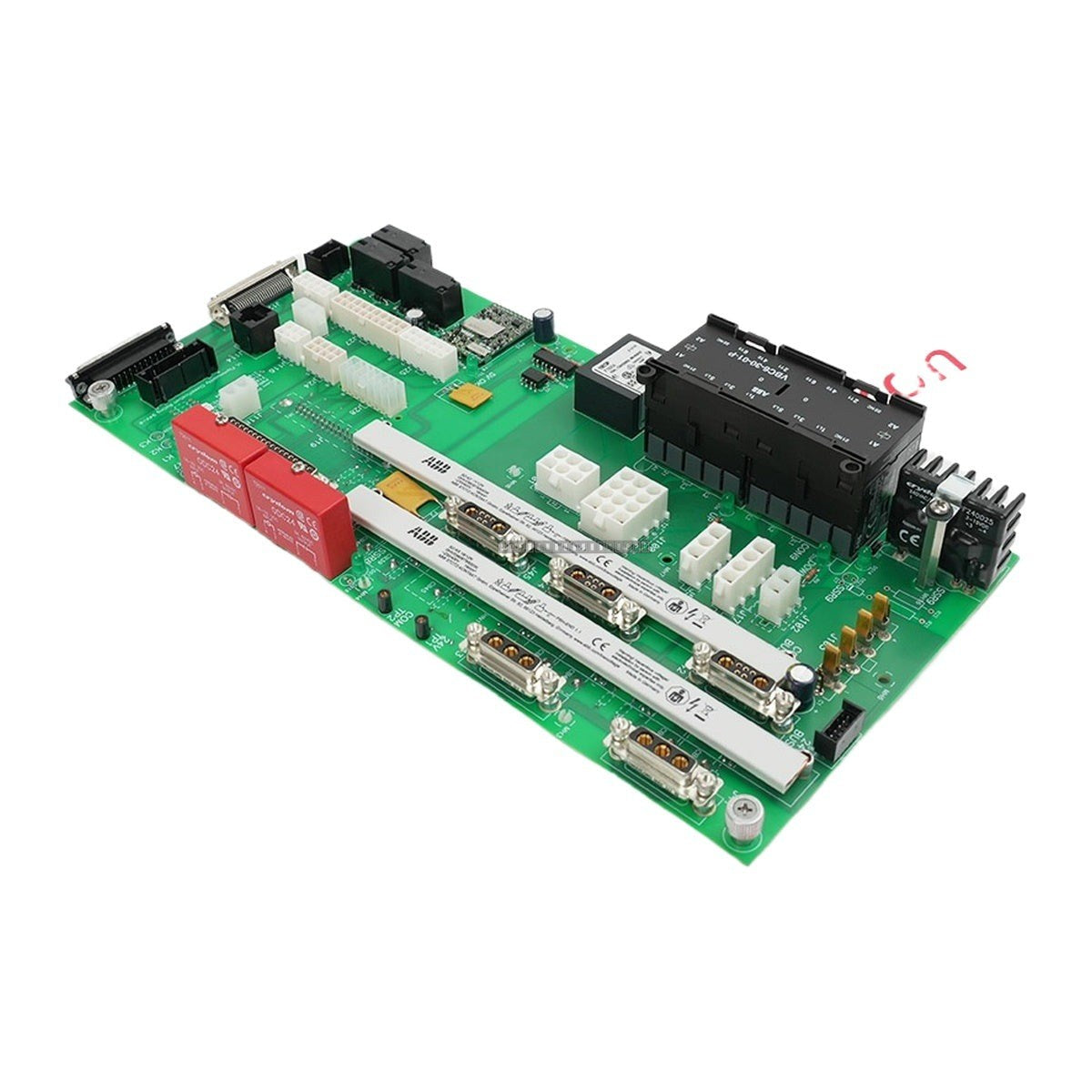

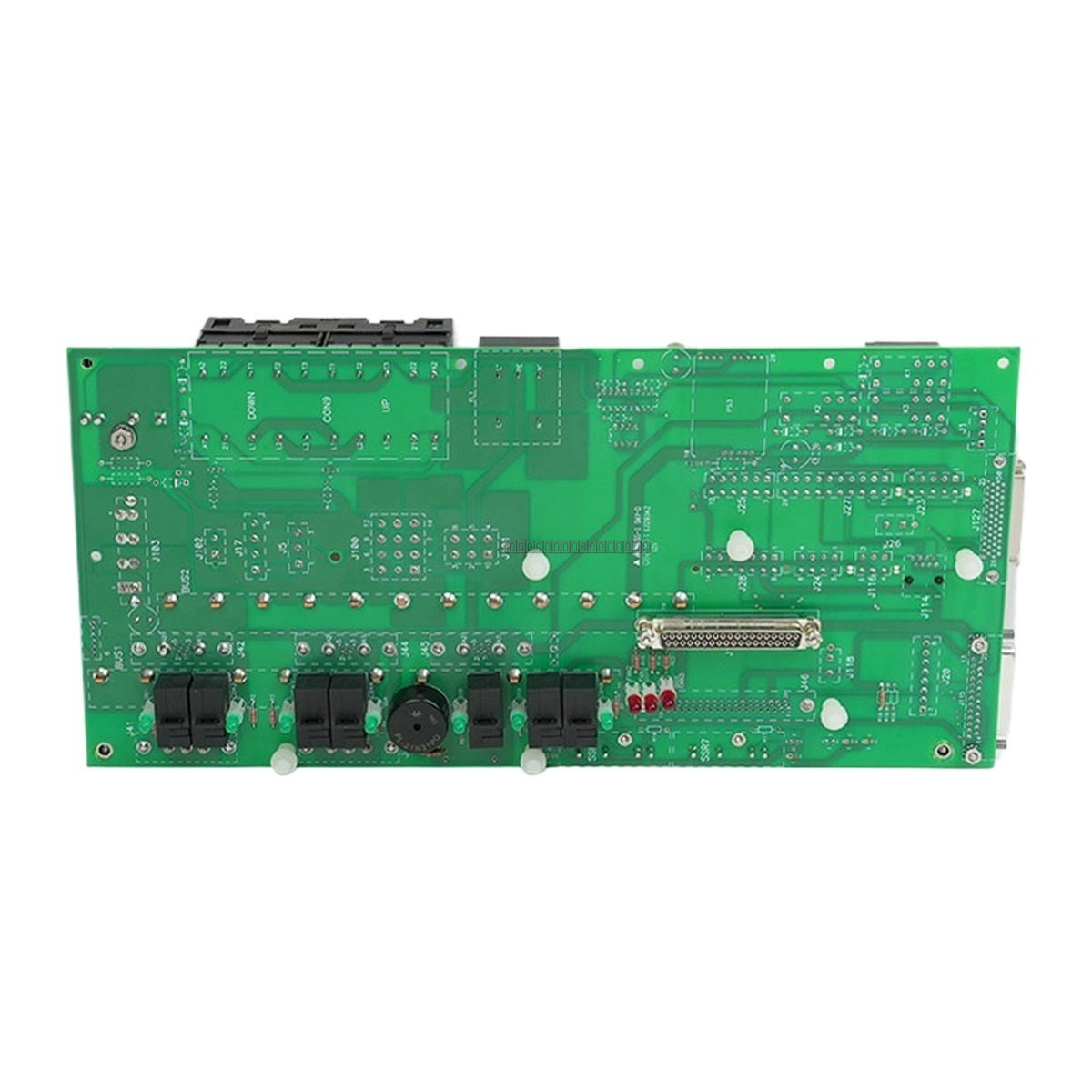

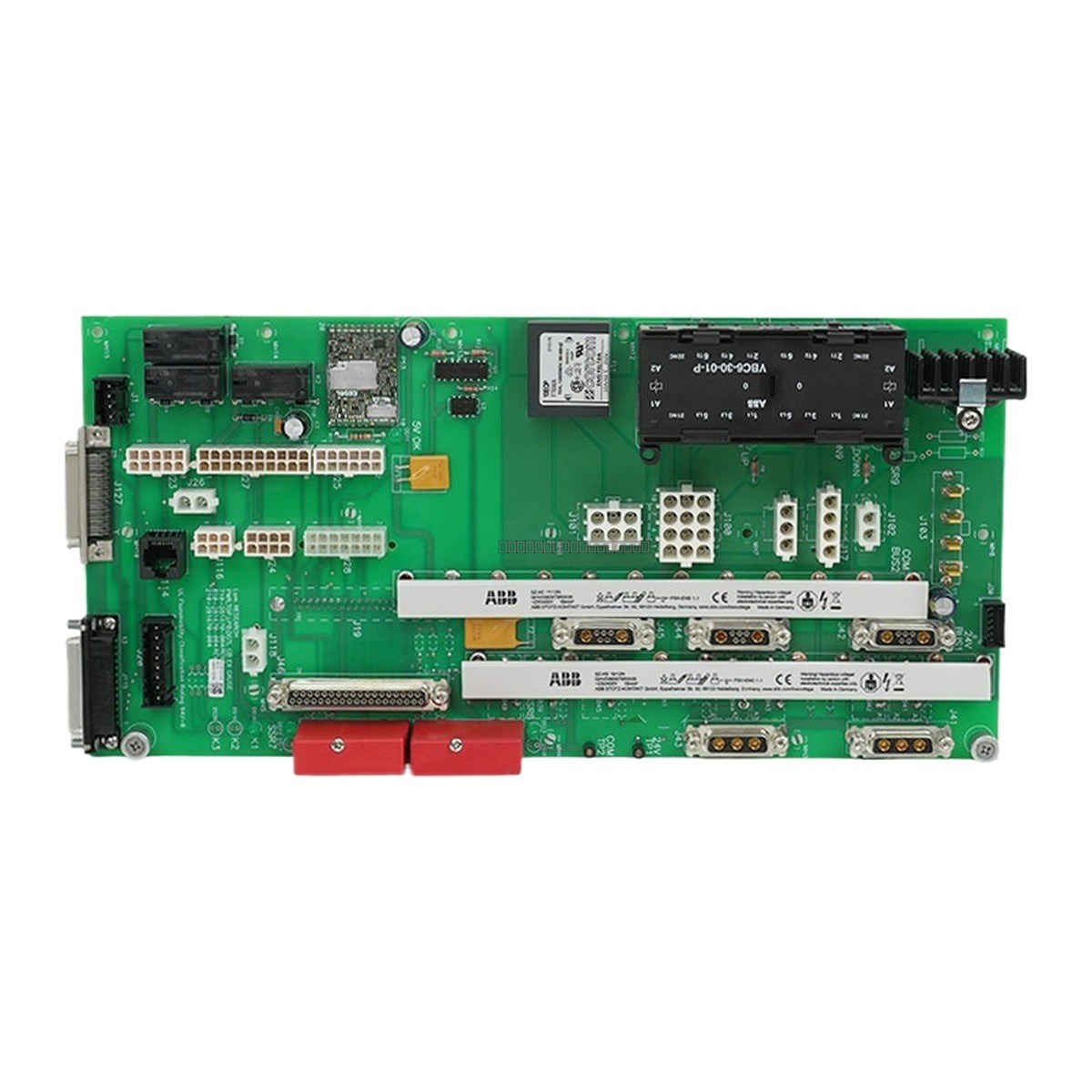

The ABB GHV0360875R0035 (also identified by spare model 810-281670-004) is a specialized drive board card designed for use within ABB drive and servo systems. This component is engineered to facilitate reliable signal transmission and control within industrial motion control environments.

Features

• Designed for integration with ABB drive and servo system architectures.
• Supports multi-conductor shielded cable configurations to minimize electromagnetic interference.
• Robust construction suitable for demanding industrial operating environments.
• Designed for consistent performance in high-precision motion control applications.

Technical Specifications

Installation Guidelines

• Ensure the drive system is fully powered down and locked out before attempting to install or remove the drive board card.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive electronic components.
• Verify that all multi-conductor shielded cables are properly seated and secured to ensure signal integrity.
• Ensure the environment meets the specified temperature and humidity requirements to prevent premature component failure.
• Check that the board is correctly aligned with the slot or mounting interface before applying pressure to seat the connector.

FAQ

What is the primary function of the GHV0360875R0035 drive board?

This board serves as a critical interface component within ABB drive and servo systems, managing signal routing and control logic for motor operation.

What type of cabling is recommended for this board?

The unit is designed to interface with multi-conductor shielded cables to ensure reliable operation and protection against electrical noise in industrial settings.

Are there specific environmental requirements for storage?

Yes, the module should be stored in a controlled environment within the range of -40 degC to +85 degC, kept dry, and protected from direct environmental contaminants.
