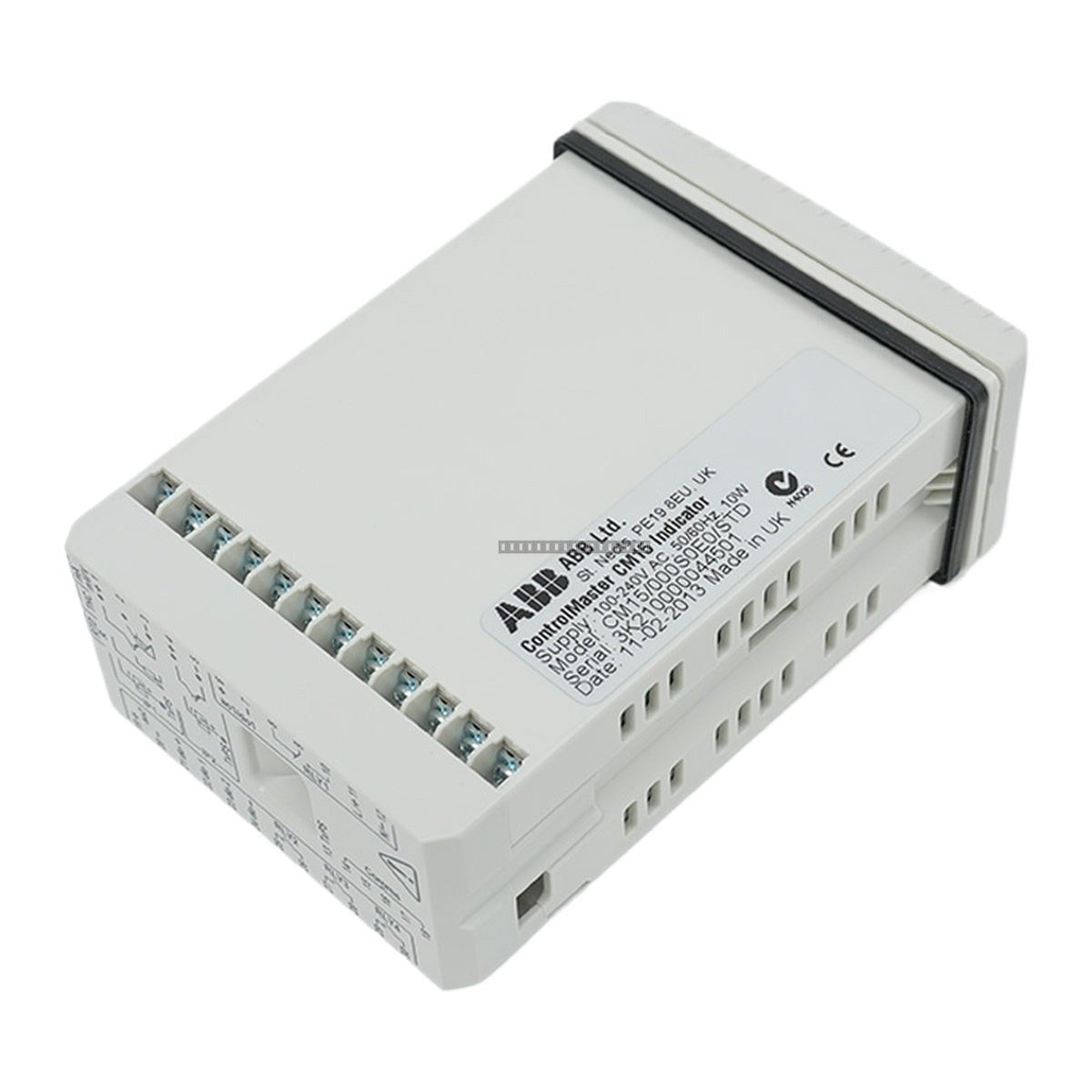

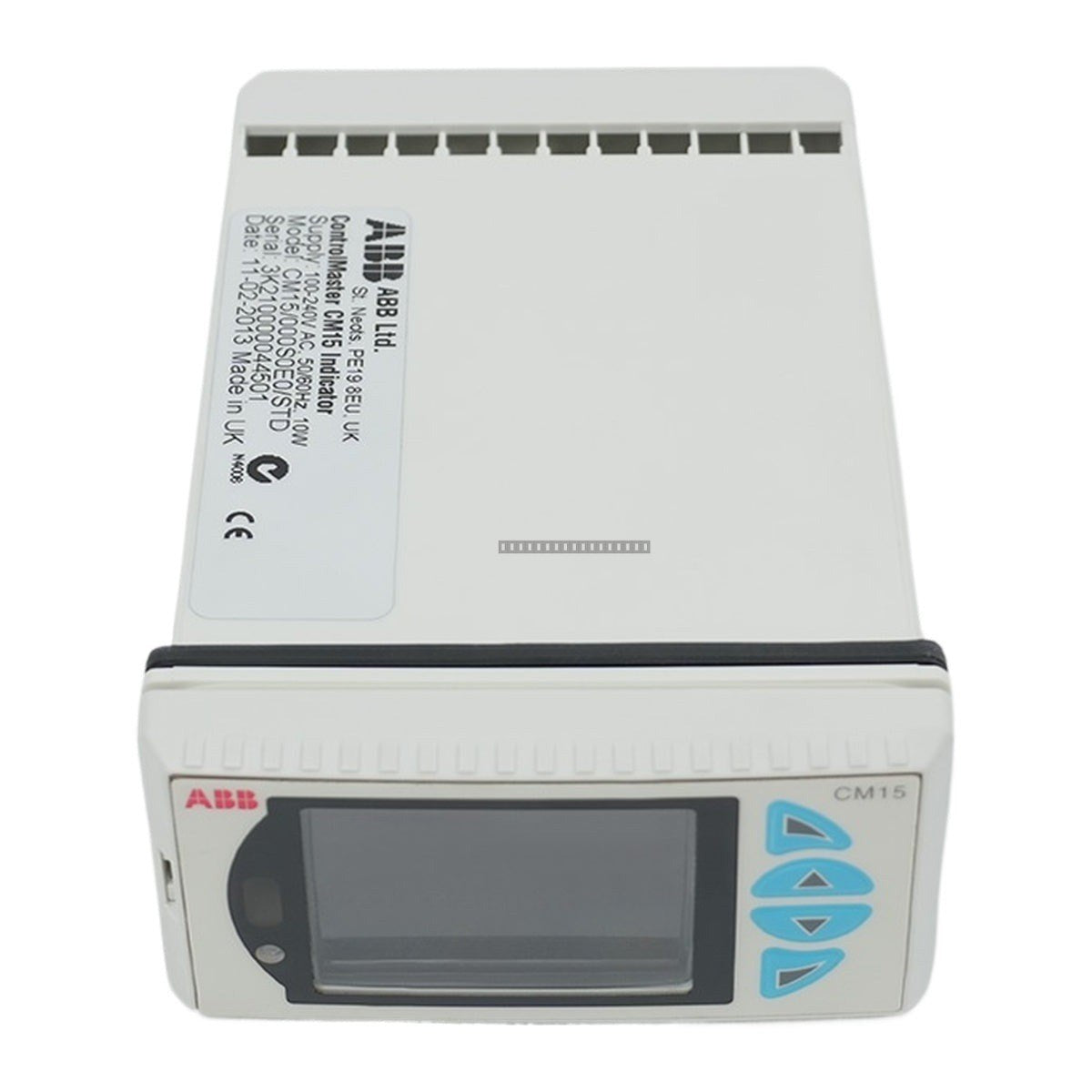

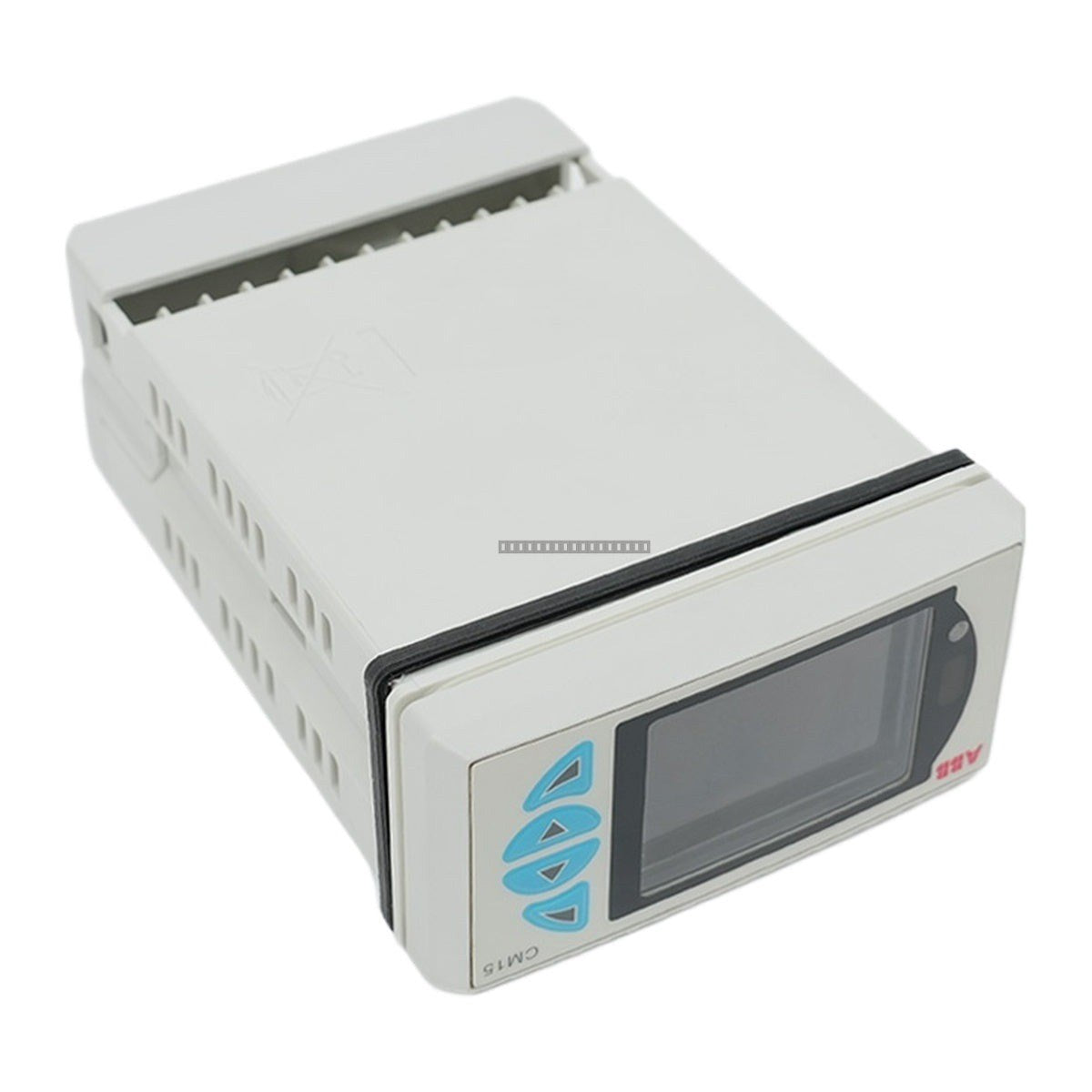

The ABB CM15/000S0E0/STD is a 1/8 DIN universal process indicator from the ControlMaster series, designed for high-accuracy monitoring and control of industrial process signals. Featuring a full-color TFT display, it provides clear, text-based menus for intuitive operation and configuration.

Features

• 1/8 DIN panel-mount form factor
• Full-color TFT multi-line LCD display
• Universal process input capability
• Configurable via front panel or ConfigPilot software
• Supports totalization, math, logic, and alarm functions
• IP66/NEMA 4X front-panel protection rating

Applications

• Food & Beverage: Monitoring of batch dispensing and mashing processes
• Water Treatment: Flow rate, pressure, and water quality monitoring
• Cold Storage: Precision temperature monitoring for sensitive environments
• Pump Stations: Bank control and wear-leveling management
• Storage Tanks: Non-linear level to volume conversion using 20-point linearizers

Technical Specifications

Installation Guidelines

• Ensure an external disconnecting device (switch or circuit breaker) is installed in close proximity to the unit for safety.
• For Thermocouple (THC) inputs, ensure the Cold Junction (CJ) sensor is correctly fitted to the terminals.
• For 4-20mA loops, install a 2V7 Zener diode across the input terminals to maintain loop continuity during power-off states.
• For 3-lead RTD connections, ensure lead resistances are equal to maintain measurement accuracy.
• Mount in a standard 1/8 DIN panel cutout; ensure the panel seal is properly seated to maintain the IP66/NEMA 4X rating.

FAQ

What are the primary applications for the CM15?

It is used for measuring, displaying, and controlling processes involving flow, temperature, level, and pressure. It is particularly suited for industrial applications requiring accurate, high-speed monitoring.

What are the inputs and outputs of this model?

This specific part number includes 2 universal analog inputs (supporting mV, V, mA, T/C, RTD, and Frequency), 1 analog output, and 1 relay output.

What is the environmental protection rating?

The front face is rated IP66/NEMA 4X, providing protection against dust and water ingress in harsh industrial environments.
