Description

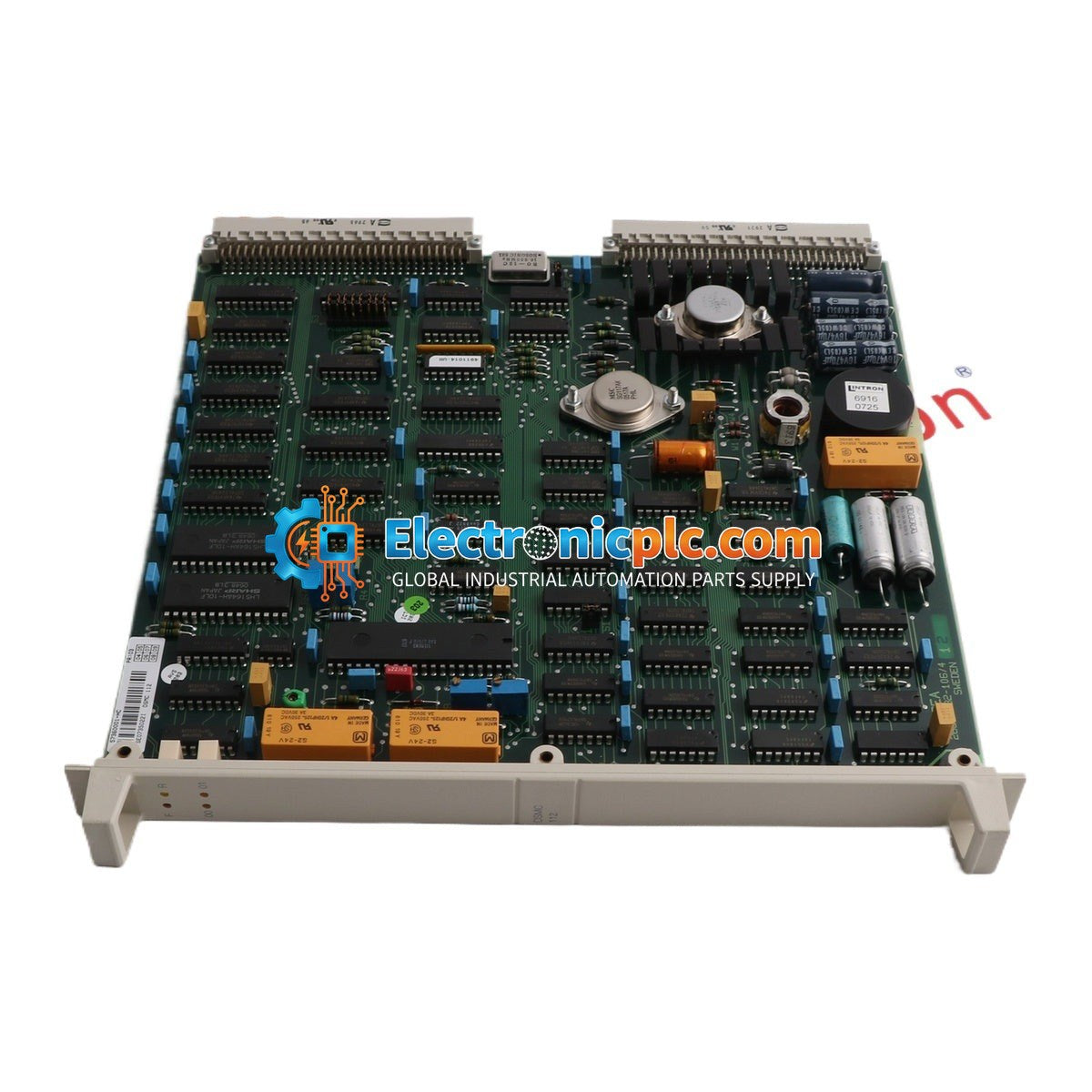

The ABB DSMC112 (Order Code: 57360001-HC) is a specialized FlexSK controller board designed for industrial automation systems. This module serves as a critical component for control and communication tasks within the ABB Master series architecture. It is often utilized in applications requiring precise motor control and data management, functioning as a controller board with integrated memory and disk control capabilities.

Features

• Designed for integration within ABB Master control systems.
• Supports FlexSK architecture for modular control applications.
• Integrated memory and controller functionality for system-level processing.
• Robust construction suitable for industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the DSMC112 module to prevent electrical damage.
• Handle the board using proper ESD (Electrostatic Discharge) protection practices to safeguard sensitive internal components.
• Verify that the module is securely seated in the designated rack slot to ensure proper backplane connection.
• Maintain adequate ventilation within the control cabinet to ensure the ambient temperature remains within the specified 0 degC to +55 degC range.
• Route signal and power cables away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the DSMC112?

The DSMC112 is a FlexSK controller board used in ABB Master systems, primarily responsible for control logic, memory management, and disk control operations.

Is this module compatible with other ABB Master components?

Yes, the DSMC112 is designed to operate within the ABB Master series ecosystem. Please verify your specific system revision and backplane compatibility before installation.

What are the power requirements for this board?

The board operates on a 24 V DC supply with a maximum current consumption of 0.5 A.
