Description

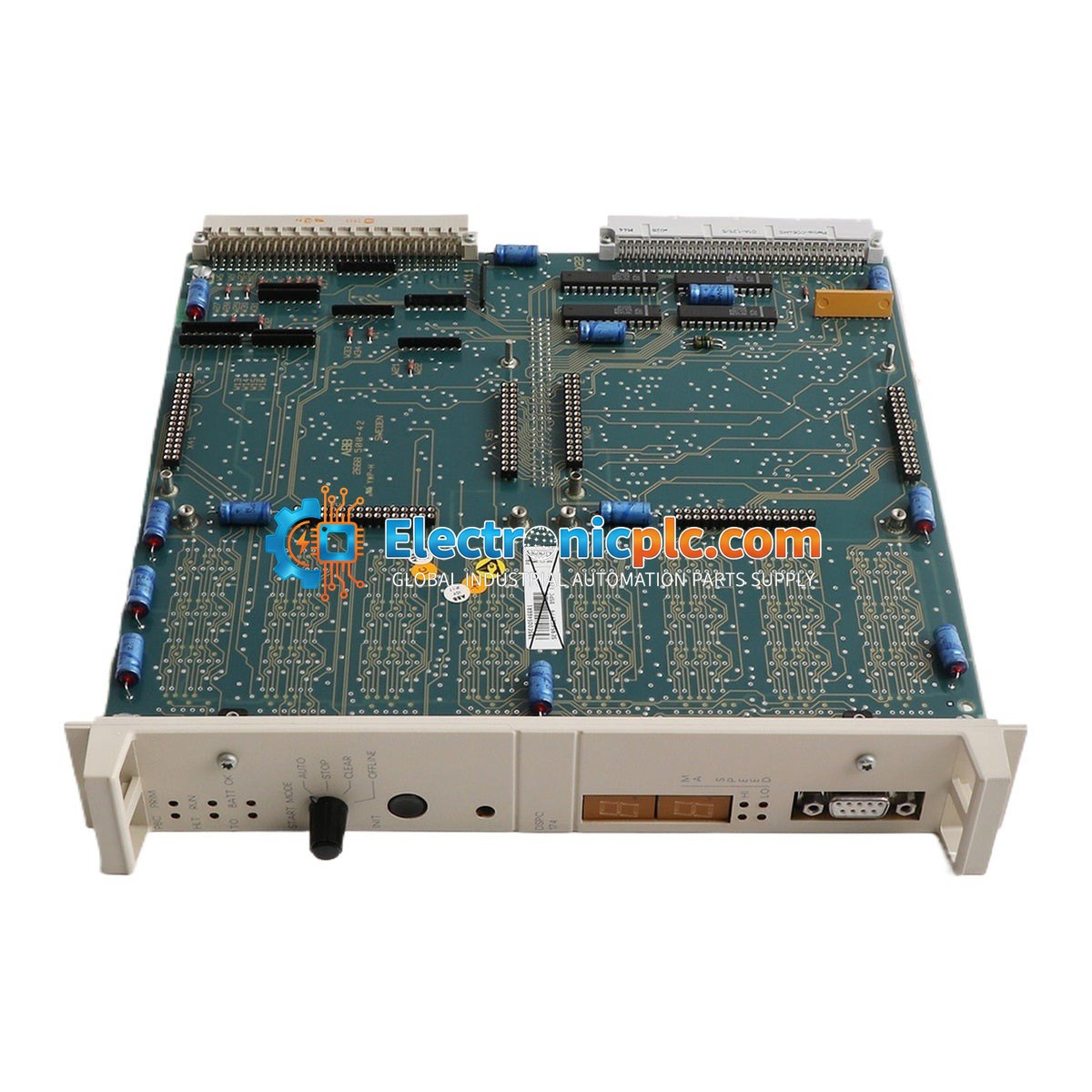

The ABB DSPC174 (3BSE005461R1) is a high-performance processor board module designed for the ABB Master control system architecture. As a core CPU component, this module handles critical logic processing, data management, and communication tasks within the Master series environment. It is engineered for reliability in demanding industrial automation applications, ensuring consistent execution of control algorithms and system monitoring.

Features

• Core processor module for ABB Master control systems
• Robust design suitable for industrial environments
• Integrated memory architecture for efficient task handling
• Low power consumption profile
• High-voltage isolation for enhanced system protection

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the DSPC174 module to prevent electrical damage.
• Handle the module using ESD-safe practices to protect sensitive internal components from electrostatic discharge.
• Verify that the module is fully seated in the designated rack slot and that all locking mechanisms are engaged.
• Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified range.
• Route communication and power cables away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the DSPC174 module?

The DSPC174 serves as a central processor board within the ABB Master system, responsible for executing control logic and managing data processing tasks for the automation network.

Is this module compatible with other ABB Master series components?

Yes, the DSPC174 is designed specifically for integration within the ABB Master series ecosystem. Please verify your specific system revision and backplane compatibility before installation.

What are the environmental requirements for this module?

The module is designed for wide-temperature operation, supporting environments from -40 degC to +85 degC, provided that the humidity remains within the 5-95% non-condensing range.
