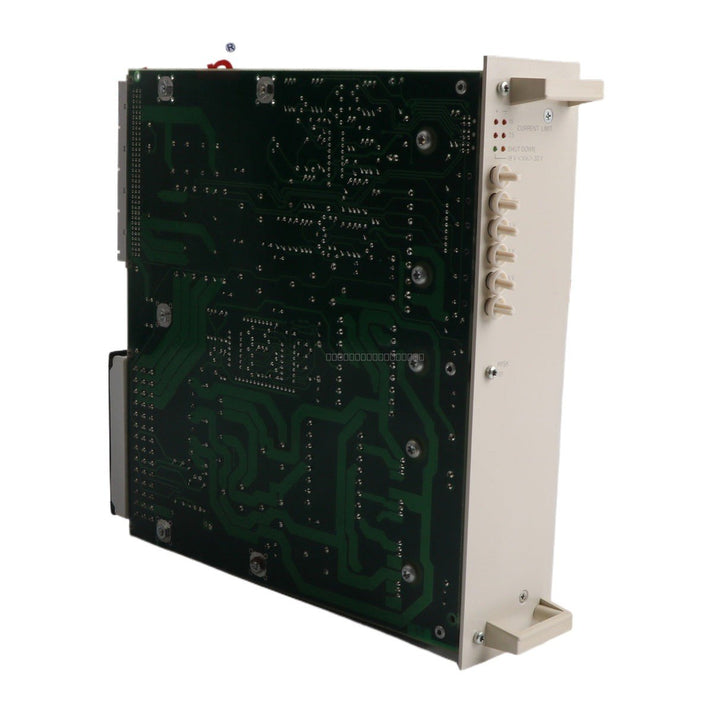

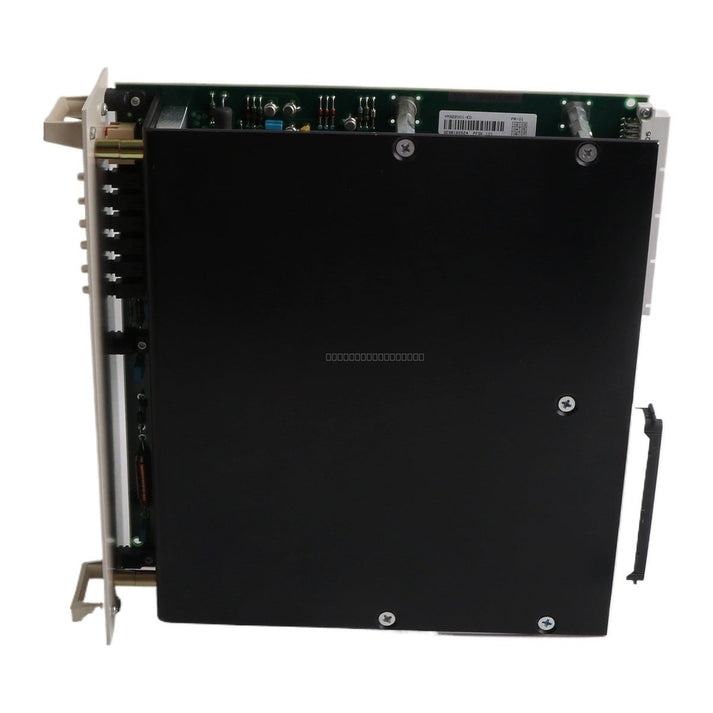

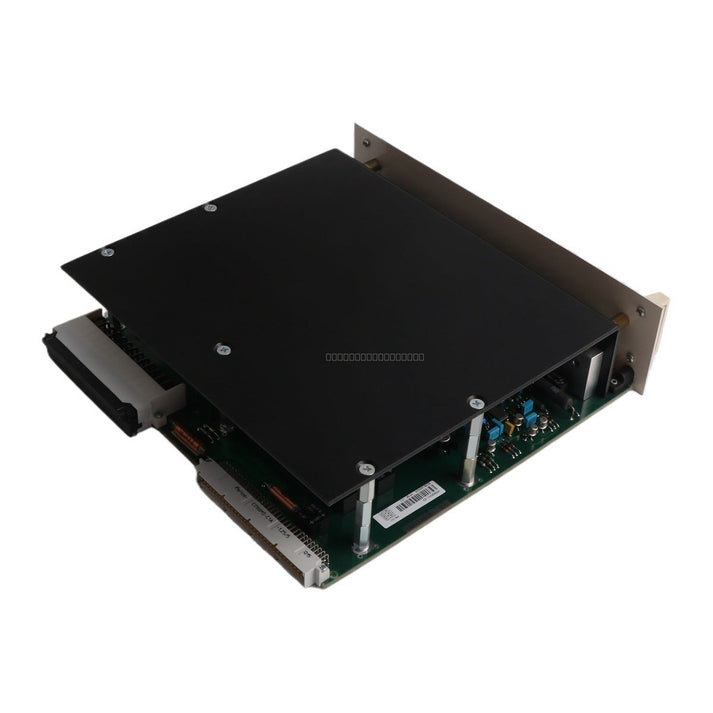

The ABB PFSK101 (YM322001-ED) is a regulated power supply unit designed for industrial automation applications. This unit provides a stable 24V DC output from standard AC input voltages, ensuring reliable operation for control systems and associated field devices.

Features

• Regulated 24V DC output voltage
• Continuous output current capacity of 5A
• 120W power rating for demanding industrial loads
• Wide operating temperature range from -25 degC to +70 degC
• Designed for high-reliability industrial environments

Technical Specifications

Installation Guidelines

• Ensure the power supply is installed in a well-ventilated area to maintain optimal thermal performance within the specified temperature range.
• Verify that the input voltage matches the configured settings (120V or 230V AC) before applying power.
• Always disconnect the main power source before performing any wiring, installation, or maintenance tasks.
• Use appropriate wire gauges for the 24V DC output to minimize voltage drop over long cable runs.
• Ensure the unit is securely mounted and properly grounded according to standard industrial electrical practices to mitigate EMI/RFI interference.

FAQ

Is the ABB PFSK101 still in production?

This specific unit is marked as obsolete. It is typically sourced as a spare part for legacy control systems.

What is the primary function of this module?

The PFSK101 serves as a dedicated power supply unit, converting AC line voltage into a regulated 24V DC supply required for powering PLC racks, I/O modules, and other automation instrumentation.
