Description

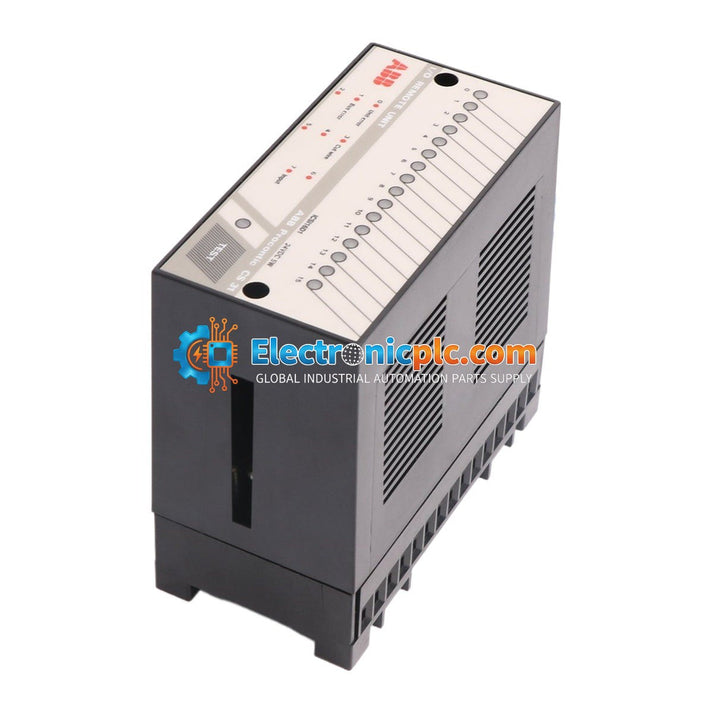

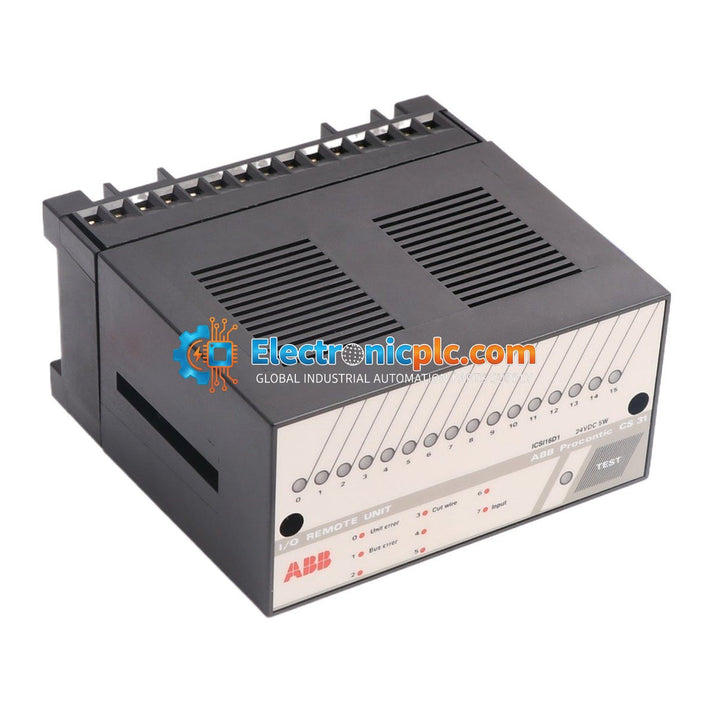

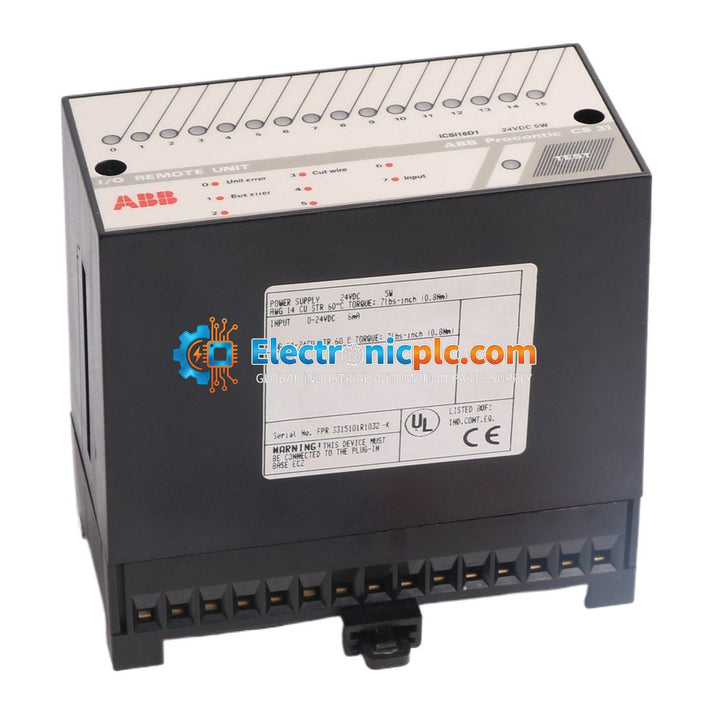

The ABB FPR3315101R1032, also identified by the model designation ICSI16D1, is a remote I/O unit designed for the ABB Procontic CS31 fieldbus system. This module serves as a distributed input/output interface, allowing for the expansion of control capabilities in industrial automation environments by connecting remote sensors and actuators to the central controller via the CS31 bus protocol.

Features

• Designed for integration with the ABB Procontic CS31 fieldbus architecture.
• Supports 24 Vdc power supply for standard industrial control loops.
• Compact design optimized for space-constrained control cabinets.
• Reliable data communication for distributed I/O applications.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module from the mounting rail.
• The module should be installed in a clean, dry environment within the specified temperature range to prevent component degradation.
• Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity on the CS31 bus.
• Ensure adequate ventilation around the unit to prevent overheating during continuous operation.
• Use shielded communication cables for the CS31 bus connection to reduce noise susceptibility in industrial environments.

FAQ

What is the primary function of the ICSI16D1?

The ICSI16D1 is a remote I/O unit used to extend the I/O capacity of an ABB Procontic CS31 PLC system, allowing the controller to interface with field devices located at a distance from the main processor.

Is this module compatible with other fieldbus systems?

No, this module is specifically designed for the ABB Procontic CS31 fieldbus protocol and is not compatible with other protocols like Profibus or Modbus unless used with a specific gateway.
