Description

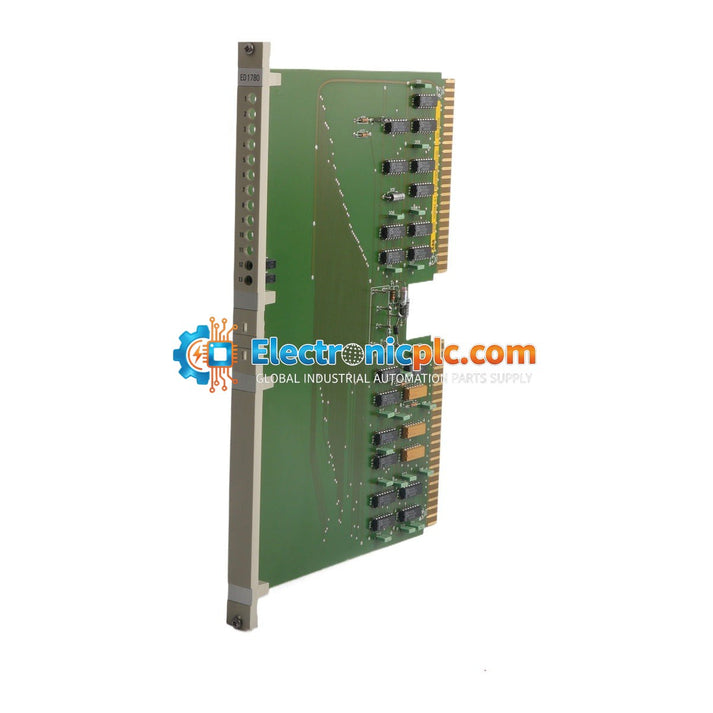

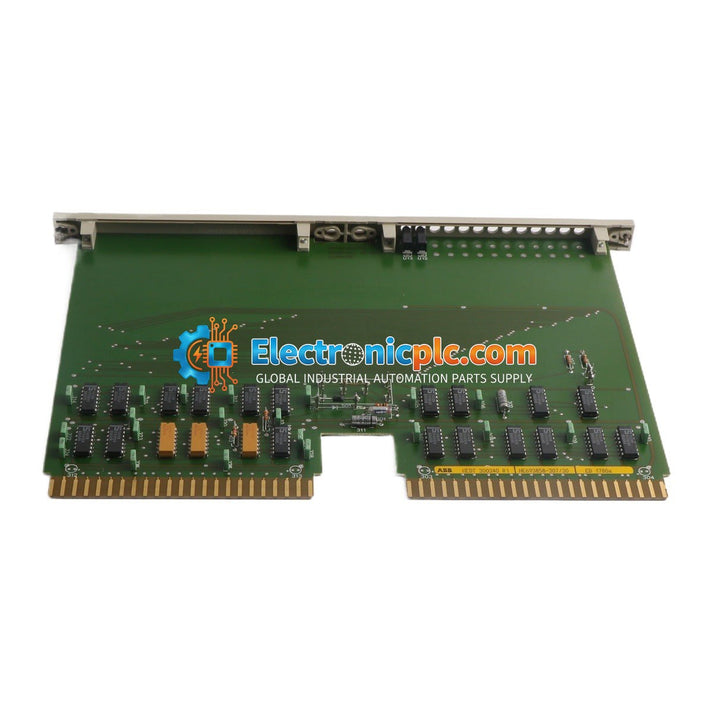

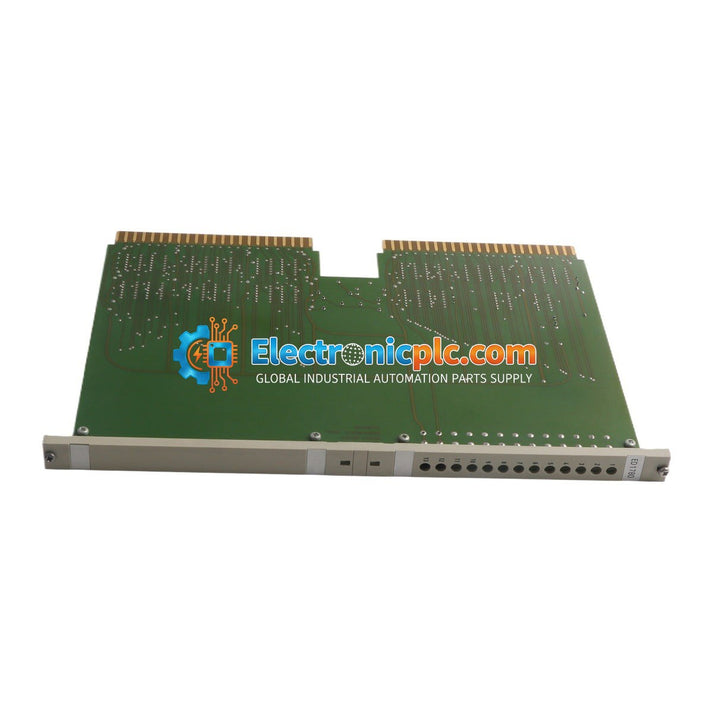

The ABB HEDT300340R1 is a System Bus Amplifier Module, specifically identified as the ED-1780a model within the ABB Procontic DP800 control system family. This module is designed to extend the signal integrity and physical reach of the system bus in industrial automation environments, ensuring reliable communication between distributed control components.

Features

• Designed for integration with the ABB Procontic DP800 series architecture.
• Functions as a signal repeater/amplifier to maintain bus performance over extended distances.
• Robust industrial design suitable for standard control cabinet mounting.
• Direct replacement for legacy ED-1780a system bus hardware.

Applications

This module is primarily utilized in legacy ABB Procontic DP800 automation systems where the physical layout of the I/O or controller racks requires signal amplification to maintain bus communication stability. It is typically deployed in manufacturing, power generation, and process control facilities that rely on the DP800 platform.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the module from the bus rack.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
• Verify that the module is firmly seated in the designated backplane slot to ensure proper electrical contact.
• Maintain adequate clearance around the module to allow for proper airflow and heat dissipation within the control cabinet.
• Route signal cables away from high-voltage lines or high-EMI sources to minimize interference with the bus communication.

FAQ

Is the ABB HEDT300340R1 still in production?

No, this module has been discontinued by the manufacturer. It is typically sourced as a spare part for maintenance of existing legacy systems.

What is the primary function of the ED-1780a module?

The ED-1780a acts as a system bus amplifier, which is necessary for maintaining signal strength and data integrity across the communication bus in larger or distributed Procontic DP800 installations.
