Description

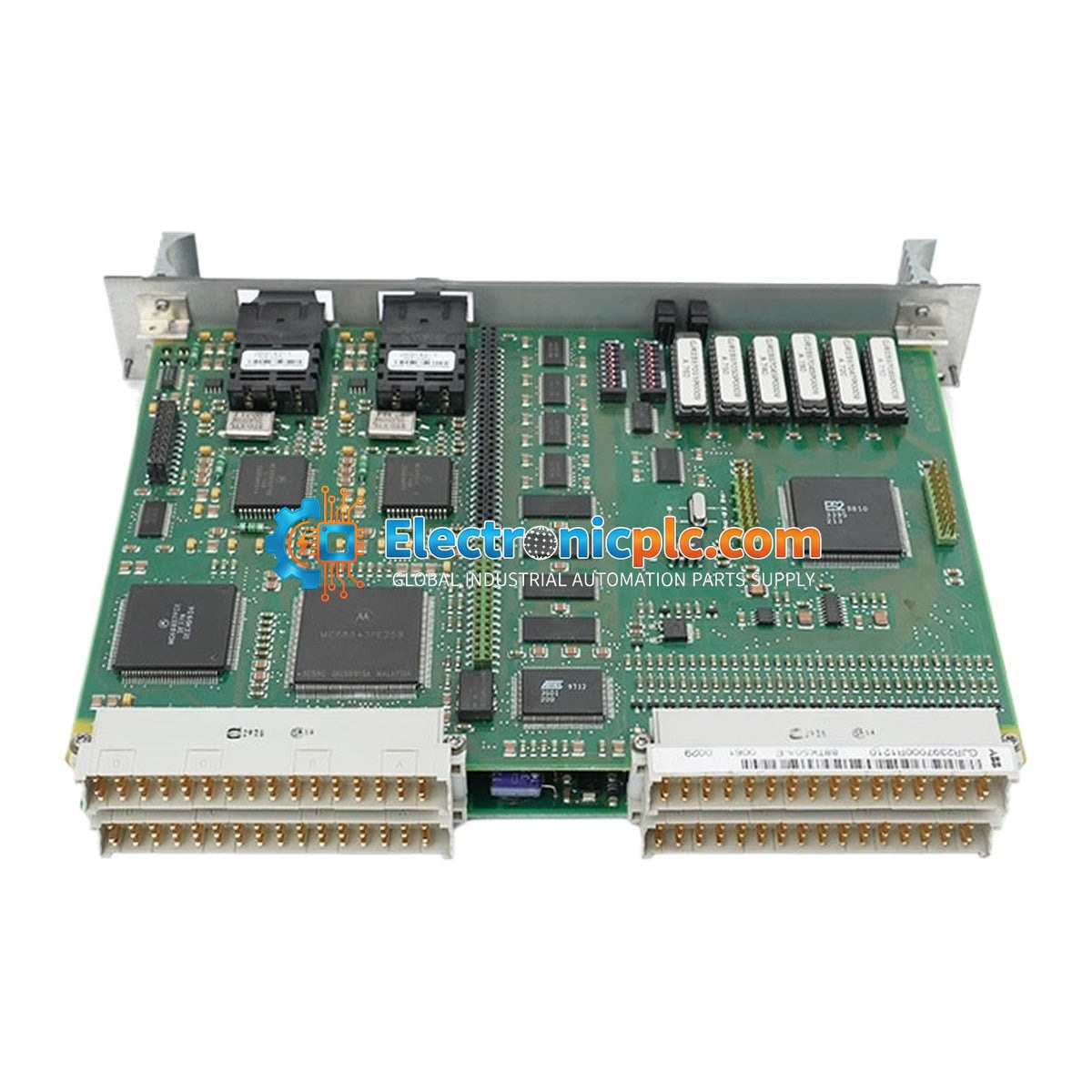

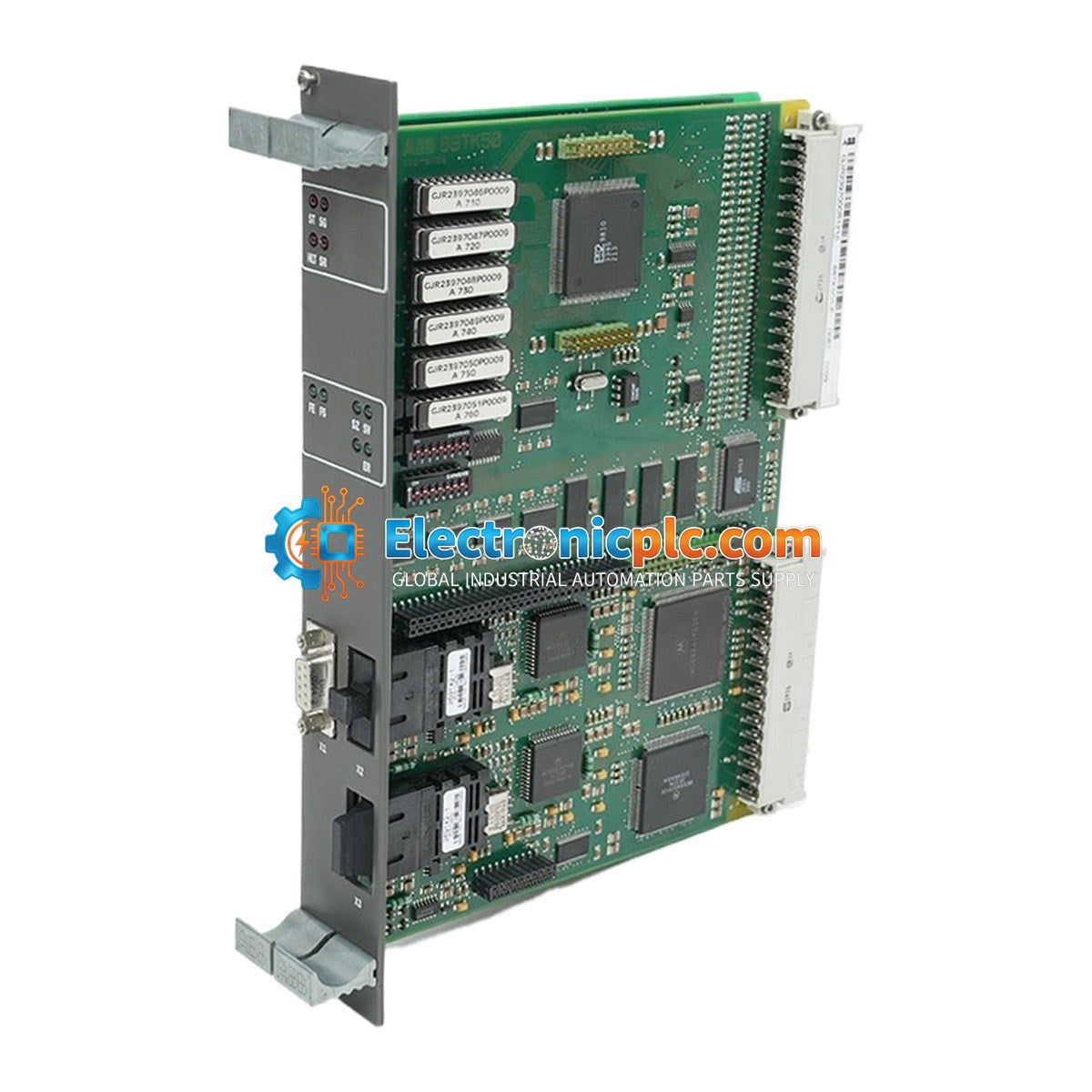

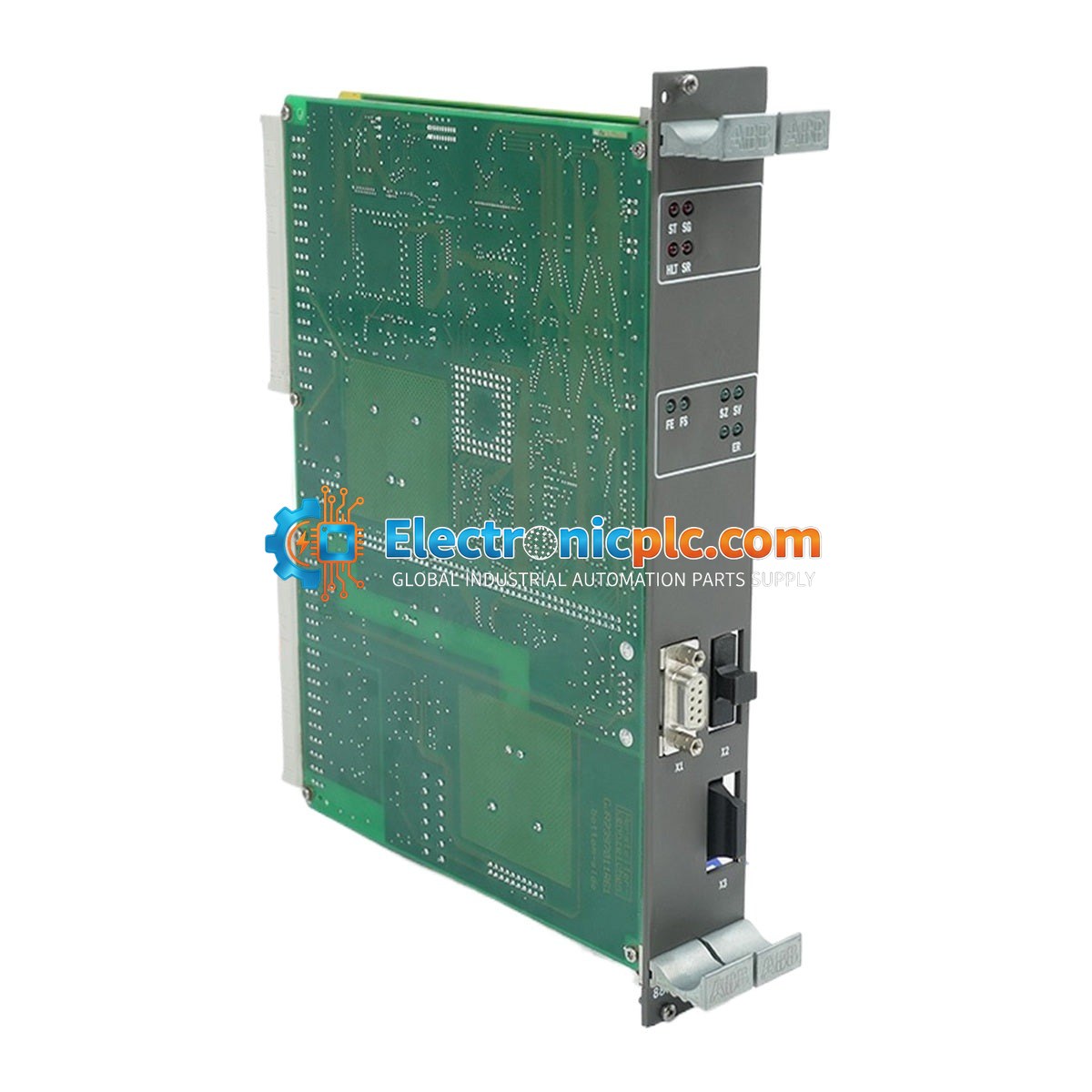

The ABB GJR2397000R1210 (Type 88TK50A-E) is a specialized Station Bus Coupling Module designed for the ABB PROCONTROL P14 industrial control system. This module facilitates high-speed data exchange by interfacing a local station bus with a Fibre Distributed Data Interface (FDDI) network. It acts as a critical communication bridge, enabling robust, real-time data transmission across large-scale automation architectures, including power generation and heavy manufacturing facilities.

Features

• Designed for integration with the ABB PROCONTROL P14 system.
• Utilizes FDDI (Fibre Distributed Data Interface) for high-speed, reliable network communication.
• Supports a data transfer rate of 100 Mbit/s using 4B/5B encoding.
• Provides 500 V DC module-to-earth isolation for enhanced signal integrity.
• Supports redundant module configurations for mission-critical applications.

Applications

• Power Generation: Control and monitoring in thermal, hydro, nuclear, and wind power plants.
• Heavy Manufacturing: Communication backbone for steel, automotive, and paper mill automation.
• Energy & Natural Resources: Data management for oil, gas, and chemical extraction processes.
• Remote Monitoring: Facilitates long-distance data collection and site management.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the fiber-optic cables are clean and properly seated in the FDDI ports to ensure signal quality.
• When using redundant modules, ensure both units are running the same firmware version to prevent communication synchronization errors.
• Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the function of the GJR2397000R1210?

It is a coupling module used to connect the PROCONTROL station to the PROCONTROL remote bus, utilizing an FDDI ring for high-speed communication.

What is the maximum distance between stations?

The distance between two stations connected to the FDDI ring must not exceed 2 km.

How is data protected?

Data transfer on the FDDI ring is protected by a generator polynomial as specified in the FDDI standard ISO 9314.
