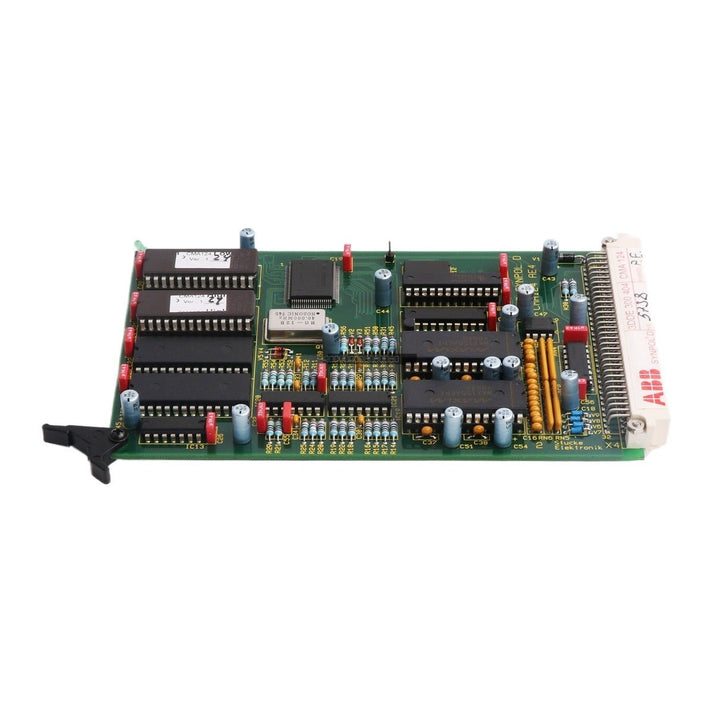

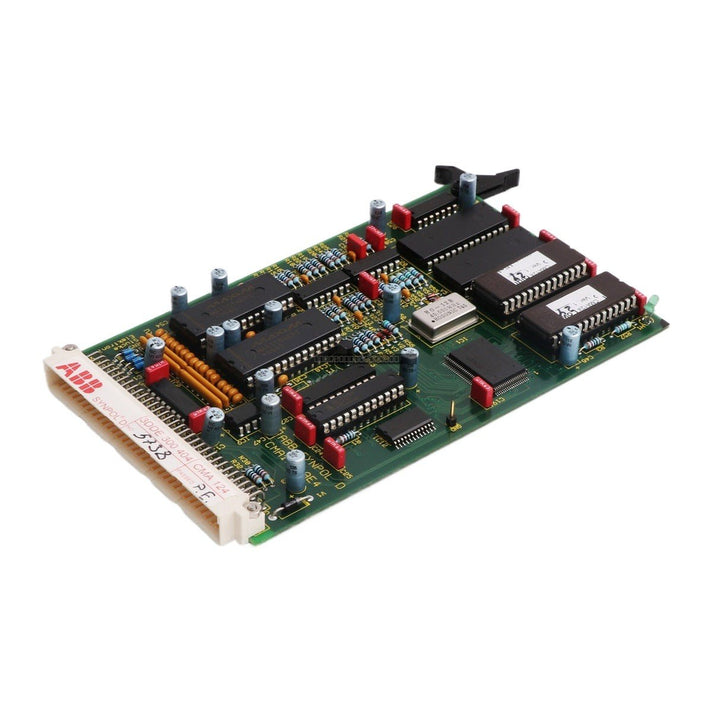

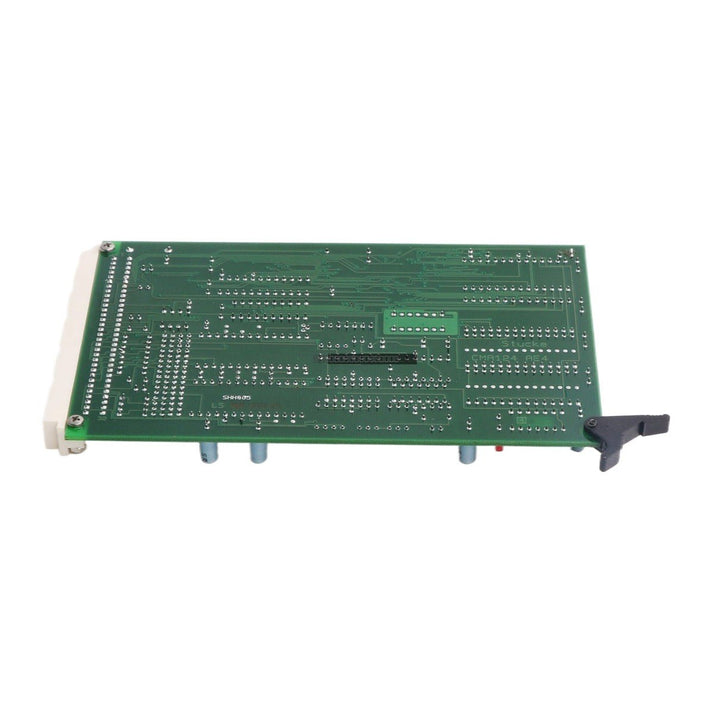

The ABB CMA124 is a specialized power measuring card designed for integration within the Synpol D system architecture. This module is engineered to provide precise measurement capabilities for industrial power monitoring applications. As a legacy component, it serves as a critical spare for maintaining existing Synpol D installations.

Features

• Designed for Synpol D system compatibility
• Precision power measurement functionality
• Compact form factor for efficient rack or panel mounting
• Robust construction suitable for industrial environments

Technical Specifications

Installation Guidelines

• Ensure the system power is fully disconnected before attempting to install or remove the CMA124 module.
• Handle the card using standard ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive internal circuitry.
• Verify that the slot interface is clean and free of debris before seating the module.
• Ensure the module is fully seated and secured according to the specific Synpol D rack configuration.
• Maintain adequate ventilation around the module to prevent overheating during continuous operation.

FAQ

Is the ABB CMA124 still in production?
No, this model has been discontinued by the manufacturer. It is primarily available as a spare part for legacy system maintenance.

What is the primary function of the CMA124?
The CMA124 is a power measuring card used within the Synpol D series to monitor and process power-related signals.
