Description

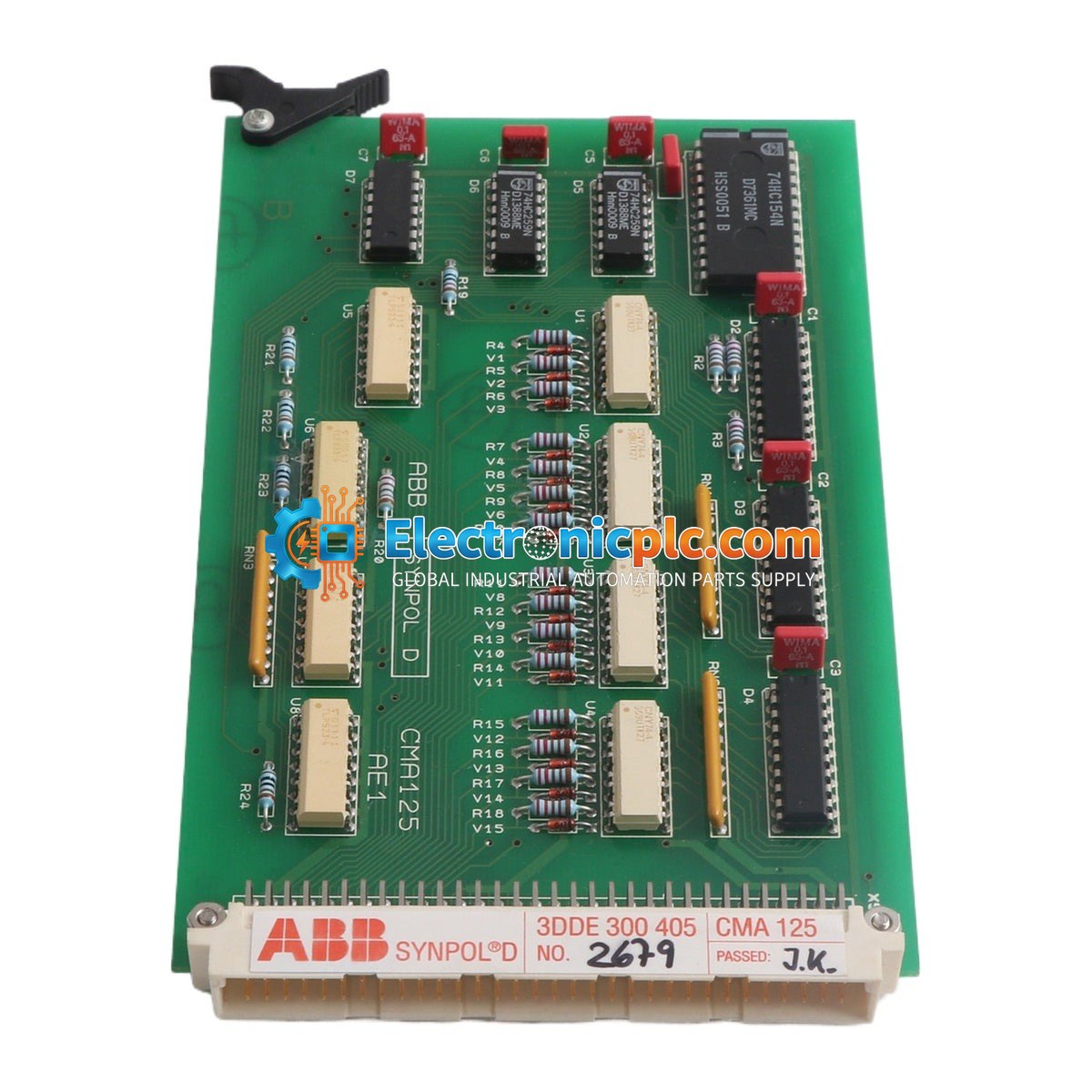

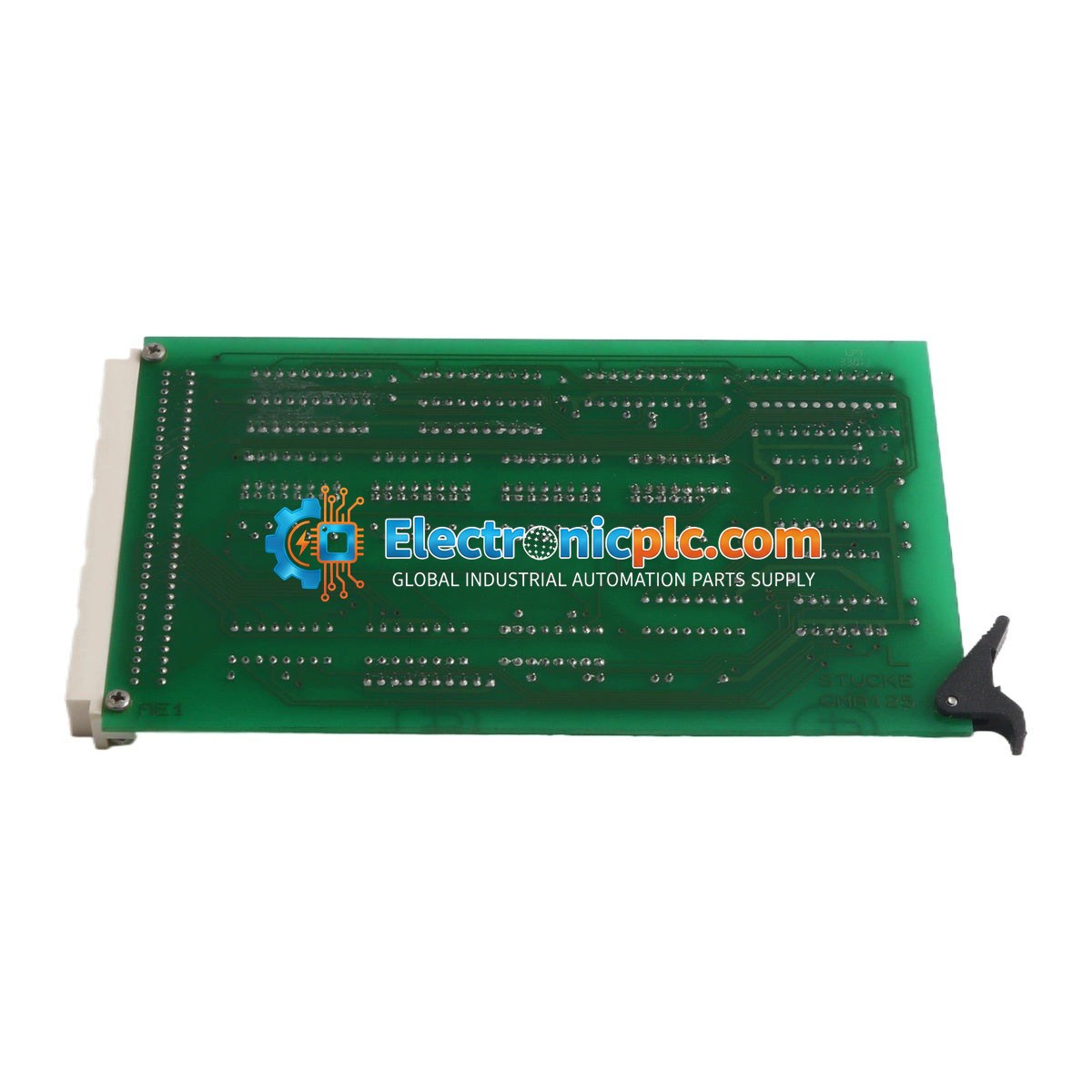

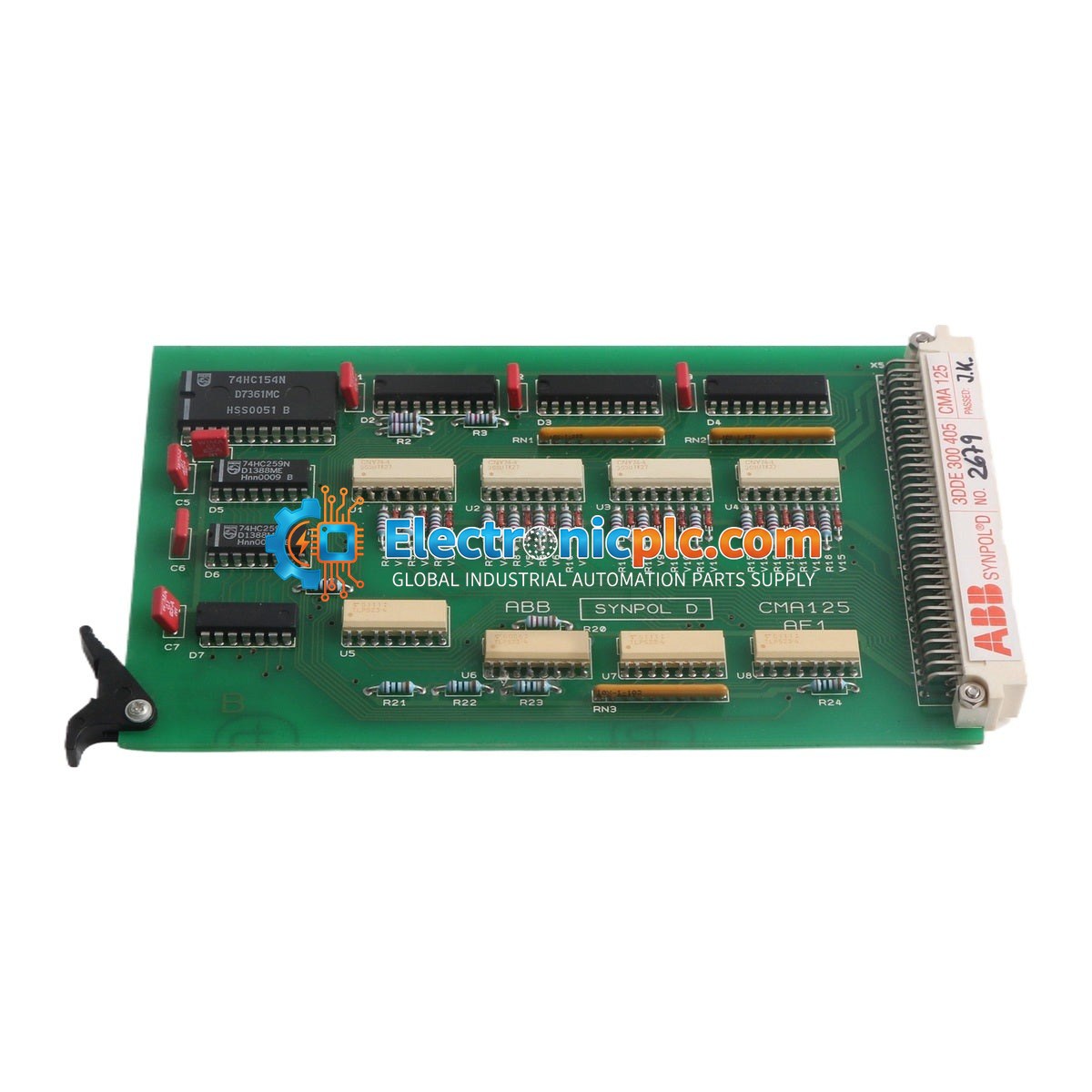

The ABB CMA125 is a specialized I/O generator card, historically utilized within ABB control and excitation systems. This module, also identified by the spare part reference 3DDE300405, is designed to facilitate signal processing and interface management within industrial generator control applications. As a legacy component, it is currently discontinued by the manufacturer, making it a critical spare for maintaining existing infrastructure.

Features

• Designed for integration with ABB Synpol D control systems.
• Functions as a dedicated generator I/O interface card.
• Compact form factor for efficient rack or panel mounting.
• Compatible with legacy ABB excitation and control hardware.

Technical Specifications

Installation Guidelines

• Ensure the control system is fully powered down before attempting to install or remove the CMA125 card.
• Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to sensitive internal circuitry.
• Verify that the card is correctly seated in the designated slot to ensure reliable electrical contact with the backplane.
• Ensure all associated wiring is properly routed and secured to prevent mechanical stress on the connector interfaces.
• Maintain adequate cabinet ventilation to prevent localized overheating of the control hardware.

FAQ

Is the ABB CMA125 still in production?

No, the CMA125 has been discontinued by ABB. We provide these units as refurbished or surplus spare parts to support legacy system maintenance.

What is the alternate part number for this module?

The CMA125 is also referenced by the spare model number 3DDE300405.
