Description

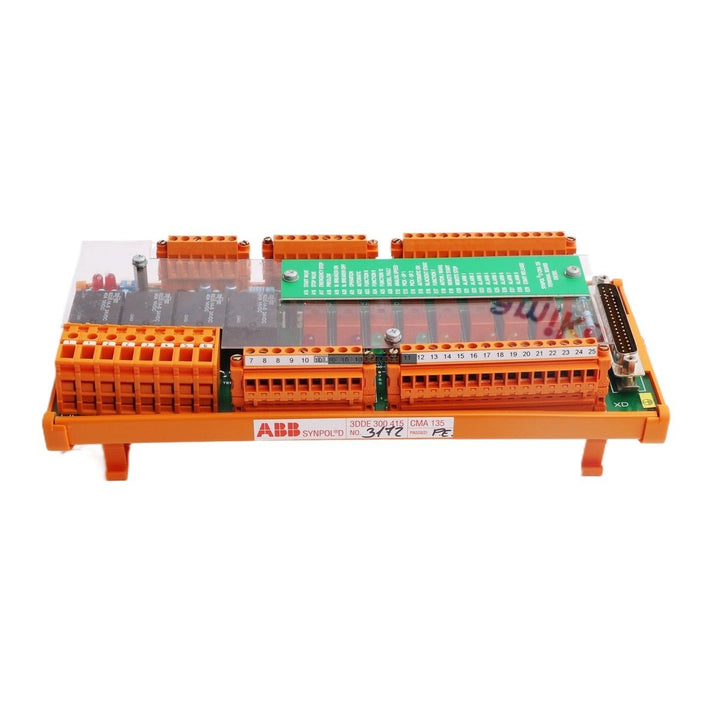

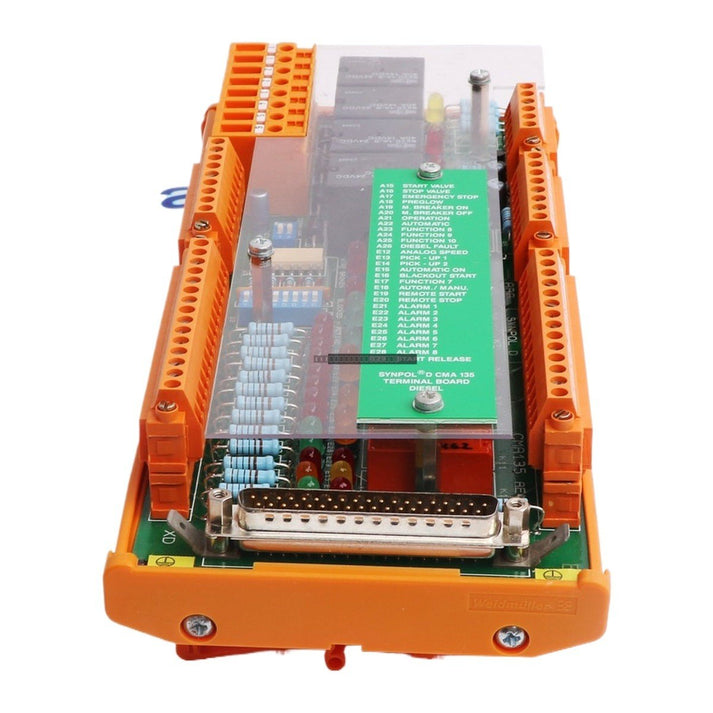

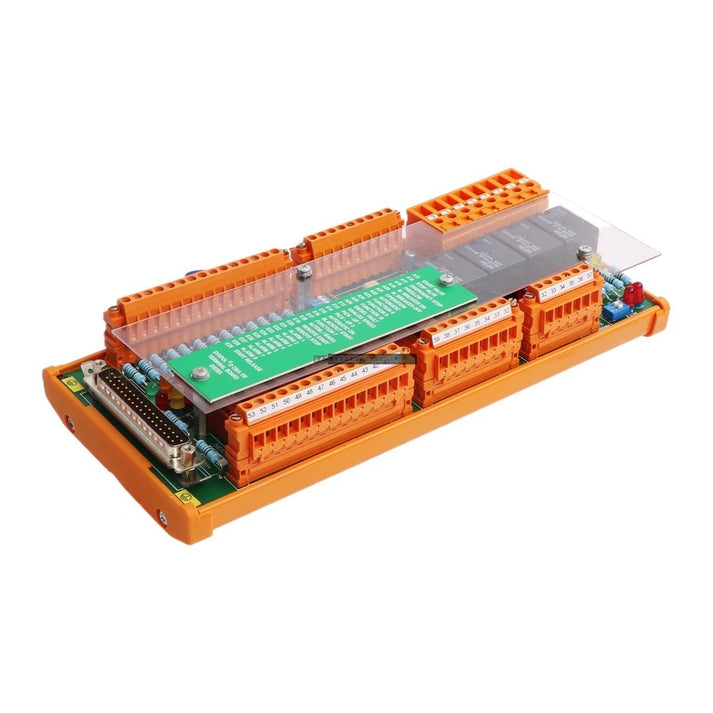

The ABB CMA135 is a specialized automatic control module designed for the starting and stopping of diesel engine systems. Known as the Synpol D, this unit provides reliable automated sequencing for engine management in industrial power generation or backup applications. It is engineered to handle the specific operational requirements of diesel-driven equipment, ensuring consistent performance and system protection.

Features

• Automated diesel engine start/stop sequencing
• Robust industrial design for reliable operation
• Compatible with specific ABB Synpol D control architectures
• Compact form factor for efficient panel integration

Technical Specifications

Installation Guidelines

• Ensure the control panel is de-energized before installing or removing the module.
• Mount the unit in a clean, dry environment protected from excessive vibration and extreme temperatures.
• Verify that all wiring connections are secure and follow the terminal diagrams provided in the original system documentation.
• Use shielded cables for signal connections to minimize electromagnetic interference (EMI).
• Ensure proper chassis grounding to maintain system stability and safety.
• Maintain adequate clearance around the module to allow for proper airflow and heat dissipation.

FAQ

What is the primary function of the ABB CMA135?
The CMA135 is an automatic control module specifically designed to manage the start and stop cycles of diesel engines within industrial control systems.

Is the CMA135 compatible with the CMA 135/3DDE 300 415?
Yes, the CMA 135/3DDE 300 415 is identified as a spare or alternative model designation for the CMA135 unit.
