Description

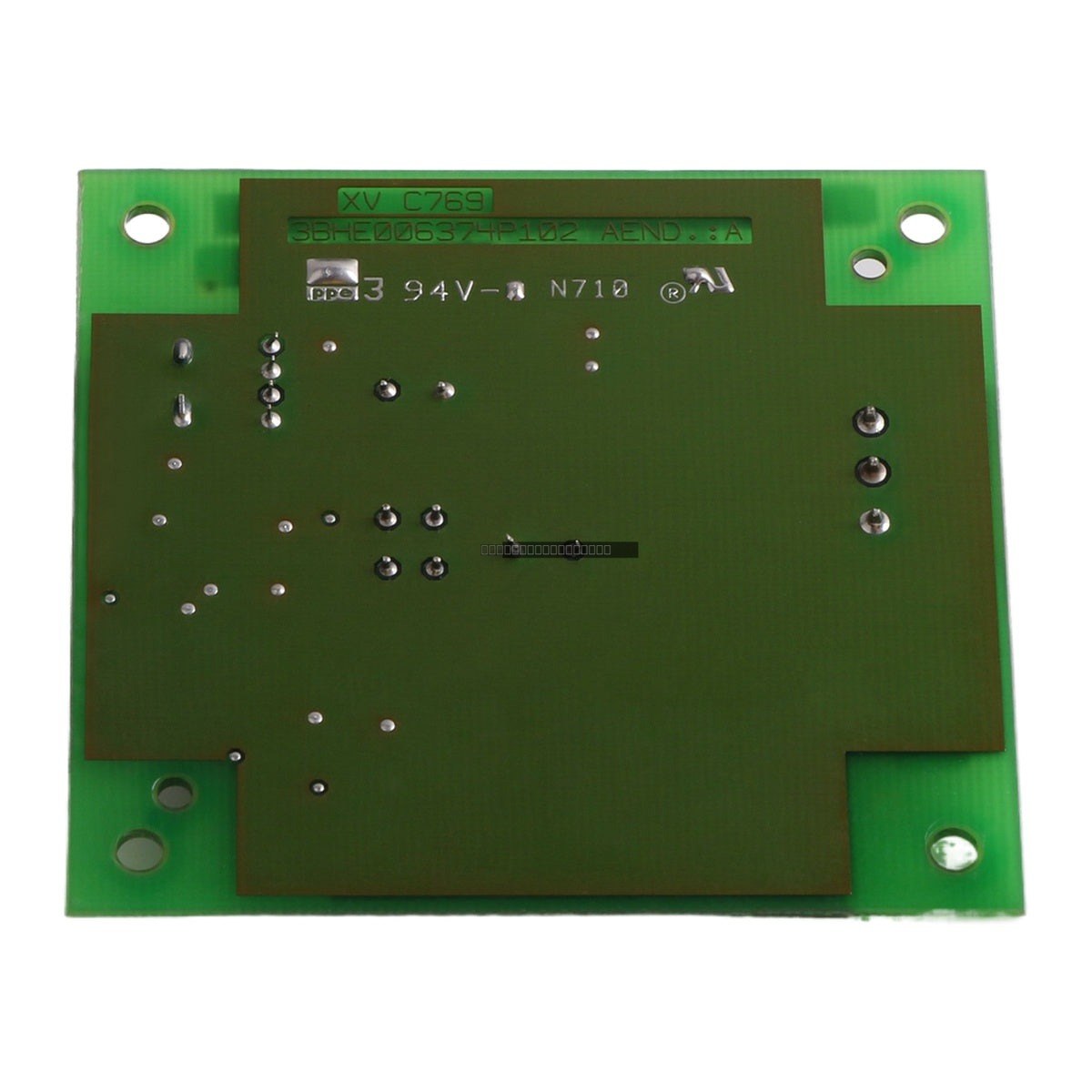

The ABB XV C769 A101 (3BHE006373R0101) is an OEI-Board designed for integration within ABB industrial control systems. This component serves as a critical interface module, facilitating reliable communication and signal processing within the designated rack or cabinet environment.

Features

• Original ABB spare part for industrial automation systems.
• Compact form factor optimized for standard control cabinet mounting.
• Designed for consistent performance in demanding industrial environments.
• Compatible with specific ABB hardware configurations requiring the 3BHE006373R0101 assembly.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before attempting to install or remove the OEI-Board.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
• Verify that the board is correctly seated in the designated slot to ensure proper electrical contact.
• Maintain adequate ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to 60 degC range.
• Route signal cables away from high-voltage or high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the ABB XV C769 A101?

The XV C769 A101 is an OEI-Board used as a spare part in ABB automation systems to support system-level communication and interface requirements.

What is the operating voltage for this module?

This module is designed to operate on a standard 24V DC supply.

Is this part compatible with other ABB systems?

Compatibility is dependent on the specific system architecture and revision. Please verify the 3BHE006373R0101 order code against your existing hardware documentation or system manual before installation.
