Description

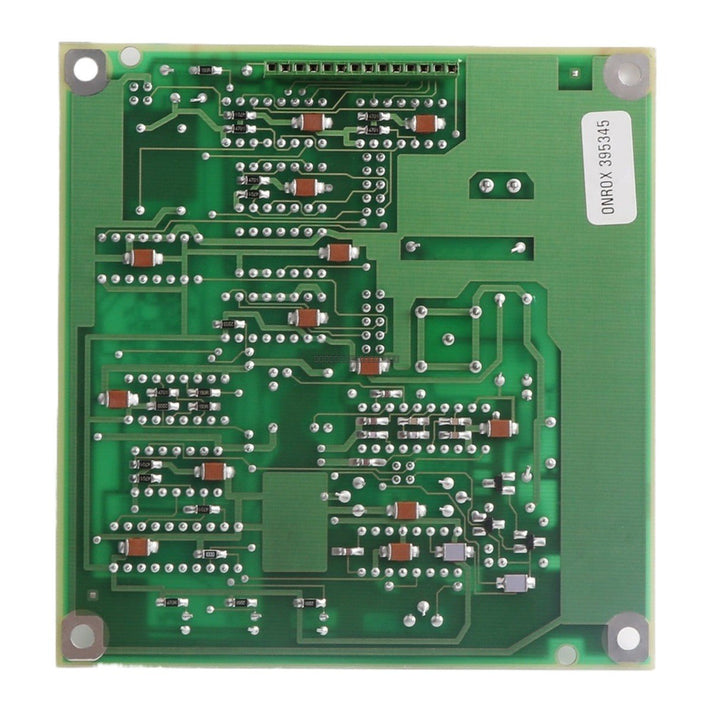

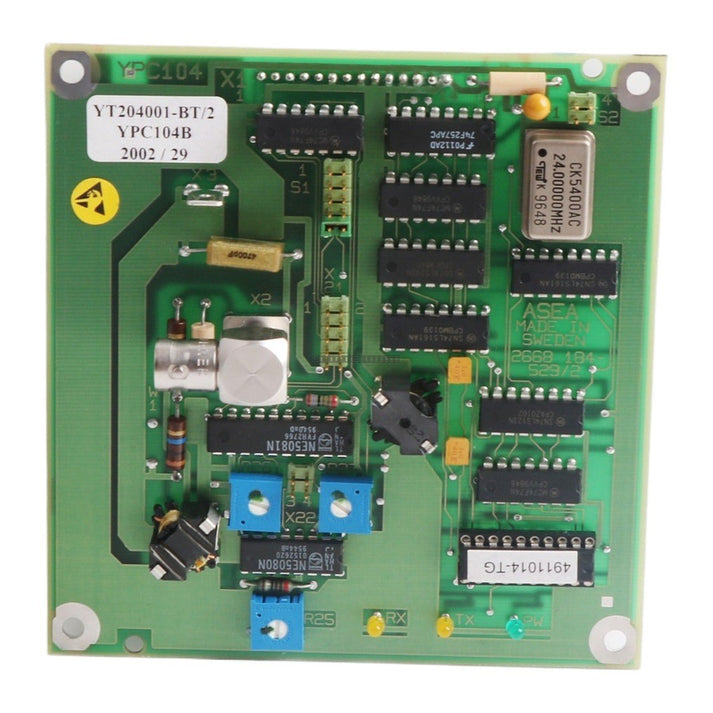

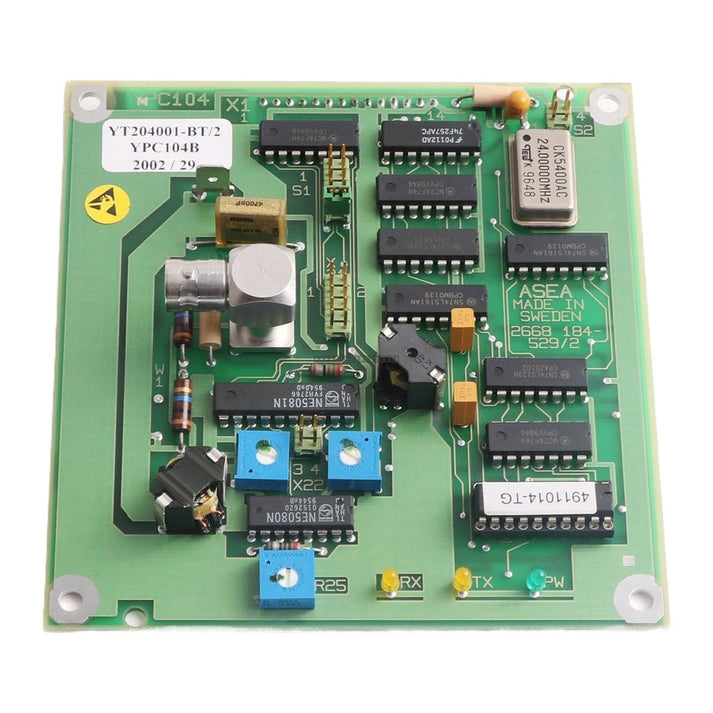

The ABB YPC104B (YT204001-BT) is a specialized FSK (Frequency Shift Keying) modem communication board designed for industrial data transmission applications. This component serves as a critical interface for MP communication systems, facilitating reliable signal modulation and demodulation within the ABB control environment. Please note that this unit has been officially discontinued by the manufacturer.

Features

• Type: FSK-Modem communication interface board
• Application: MP communication module
• Compatibility: Designed for integration within specific ABB control systems
• Status: Discontinued by manufacturer

Technical Specifications

Installation Guidelines

• Ensure the system is fully powered down before inserting or removing the communication board to prevent electrical damage.
• Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the board is securely seated in the designated slot and that all locking mechanisms are engaged.
• Ensure the environment is free from excessive vibration and moisture to maintain long-term signal integrity.
• Consult the original system documentation for specific configuration settings or jumper requirements associated with the YPC104B module.

FAQ

Is this module still in production? No, the ABB YPC104B (YT204001-BT) has been discontinued by the manufacturer.

What is the primary function of this board? This is an FSK-Modem board used for MP communication within industrial control architectures.

Can I use the YT204001-BT/2 as a replacement? The YT204001-BT/2 is listed as a spare model for this unit; however, always verify compatibility with your specific system revision before installation.
