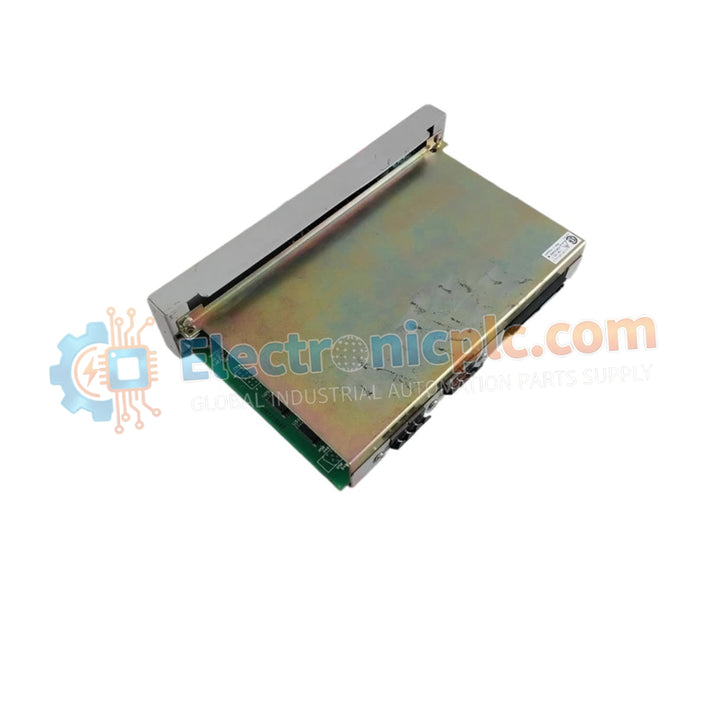

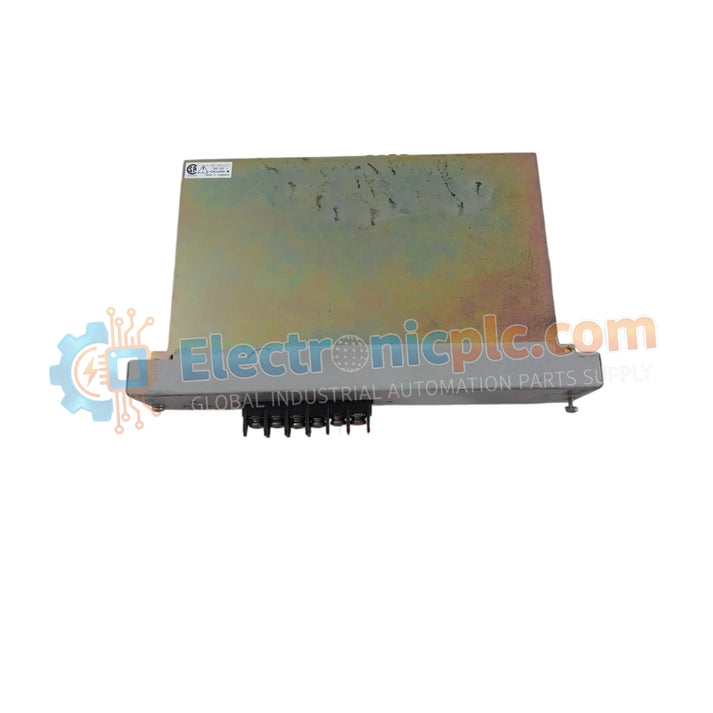

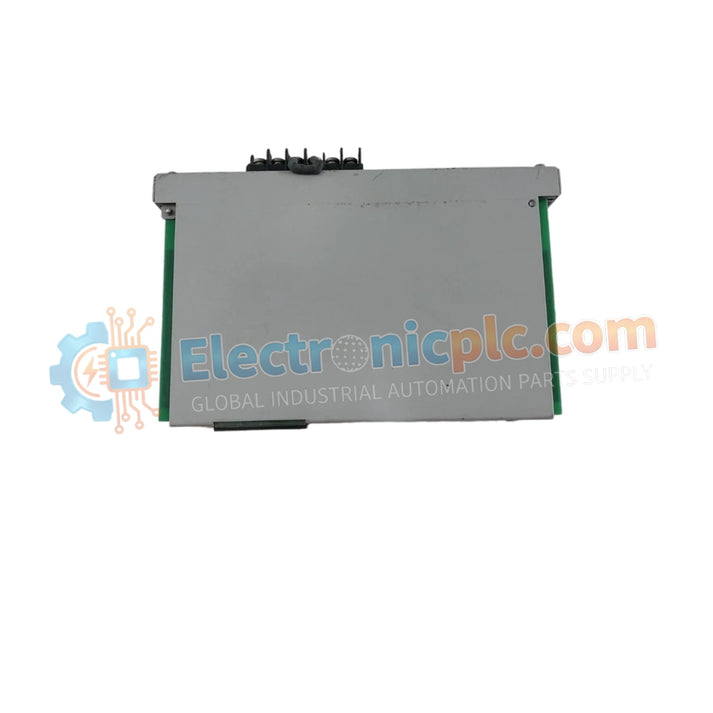

The Yokogawa ACM12, also cataloged as the ACM12 Access Control Module, operates as a dedicated hardware component for authorization management and secure data flow regulation within industrial control network environments.

Hardware Specifications

Industrial Control and Data Integrity

The ACM12 module architecture is engineered to regulate command execution priority across the control backplane. By managing authentication handshakes, the module ensures that only authorized control signals are processed by downstream CPU modules, effectively preventing unauthorized system modifications. The module employs high-speed backplane bus communication velocity to minimize processing latencies, ensuring that access verification does not create bottlenecks during deterministic scan cycles.

Frequently Asked Questions

Q: Can the ACM12 module be utilized to isolate secure network segments from the main plant backbone?

A: Yes. The ACM12 acts as an intelligent gatekeeper, utilizing internal logic to filter and authorize data packets based on predefined system access levels and originating device identifiers.

Q: Is this module capable of on-the-fly updates to security credentials?

A: Security configuration parameters are managed via the host DCS or PLC software environment. The module does not support local credential editing; all updates must be pushed from the central management station to ensure synchronized access policies.

Field Installation Guidelines

• Mechanical Installation: Mount the ACM12 onto a standard DIN-rail or dedicated equipment rack. Ensure the module is seated securely to maintain grounding continuity with the equipment chassis.
• Grounding Requirements: Connect the module’s frame ground terminal to the common cabinet protective earth (PE) bus. A low-impedance ground path is required to suppress high-frequency noise that could interfere with authentication logic signals.
• Wiring Practices: Use shielded twisted-pair cabling for all communication connections to the module. Ensure shields are terminated at the cabinet entry point to effectively mitigate electromagnetic interference (EMI) and cross-talk.
• Environmental Considerations: Maintain the ambient cabinet temperature within the 0 to 55 deg C range. Keep the module clear of high-heat sources to ensure stable processor operation and to prevent degradation of internal components over the long term.
