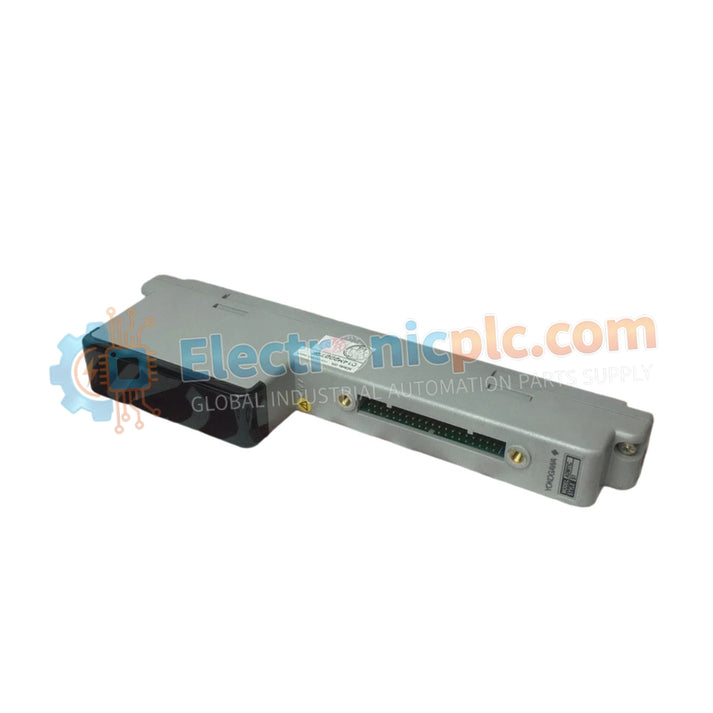

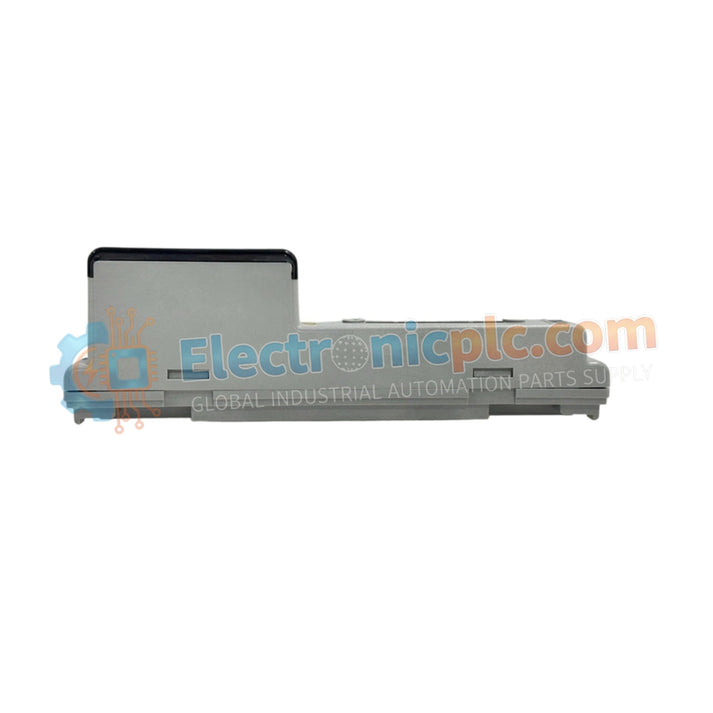

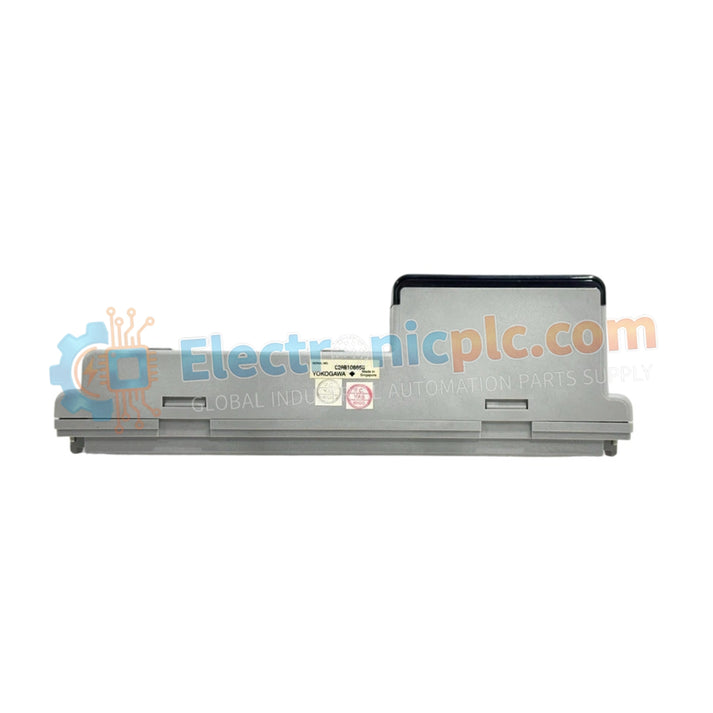

The Yokogawa ADM11, also cataloged as the ADM11 Contact Input Module, operates as a dedicated hardware component for monitoring discrete field states within CENTUM distributed control system platforms. This module provides 16 individual input channels to facilitate the acquisition of binary signals from switches, pushbuttons, and industrial sensors, enabling real-time status updates across the control network.

Hardware Specifications

DCS Process Control Features

The ADM11 is engineered for direct integration with CENTUM CS and CENTUM VP architectures. It utilizes channel-to-channel isolation to prevent potential electromagnetic interference from field-side wiring from impacting the backplane communication bus. This design maintains signal integrity during high-density switching operations. Furthermore, the module includes standardized input signal filtering to ensure that process transitions are captured accurately within the control system logic without latency induced by external electrical noise.

Frequently Asked Questions

Q: Is this module compatible with both CENTUM CS and CENTUM VP platforms?

A: Yes, the ADM11 is hardware-compatible with both CENTUM CS and CENTUM VP system backplanes.

Q: What is the required physical installation method?

A: The module is designed for standard DIN-rail mounting, providing mechanical stability within the control cabinet environment.

Field Installation Guidelines

1. Ensure the mounting rail is securely fixed to the cabinet backplane to facilitate proper chassis ground continuity.
2. Terminate all field signal wiring using shielded twisted-pair cables to mitigate the effects of induced noise on the 4-32 V DC signal lines.
3. Verify that the shield drain wire is connected to a common instrument ground point at the cabinet entry to prevent ground loops.
4. Confirm that the input source voltage does not exceed 32 V DC to avoid damage to the module input circuitry.
5. Provide adequate spacing between this module and high-power VFD output cabling to maintain electromagnetic compatibility.
