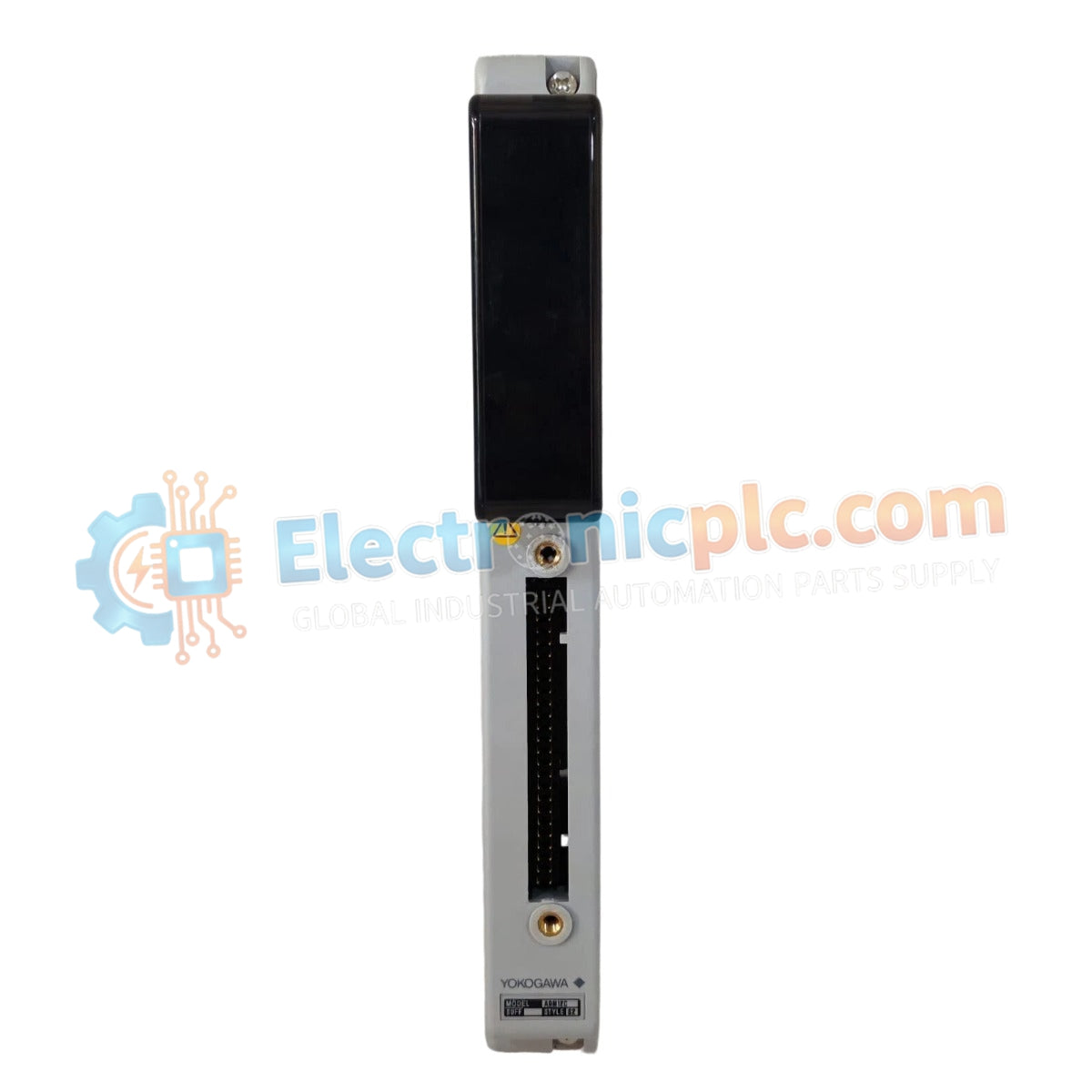

Configured for high-density discrete signal acquisition, the Yokogawa ADM12T (ADM12T Contact Input Module) provides a 32-channel interface for monitoring industrial switch states, delivering high-fidelity digital signals to Yokogawa control systems.

Hardware Specifications

Process Instrumentation and Signal Monitoring

The ADM12T module is engineered to handle large-scale contact input requirements in demanding industrial environments. By employing a robust threshold-based detection method, it accurately distinguishes between open and closed circuit states, ensuring reliable monitoring of switches and field sensors. The module’s integrated contact output capability provides added flexibility for localized signaling or interlocking requirements, maintaining stable process operation across a wide thermal range.

Frequently Asked Questions

Q: Can the ADM12T module be powered by 24 VDC instead of the specified 5 VDC?

A: No, the module is designed strictly for a 5 VDC power supply; connecting it to a 24 VDC source will cause immediate electrical damage to the internal logic circuitry.

Q: How does the module handle the contact output ratings?

A: The contact output is rated for up to 250 VAC/VDC at 0.5 A. Ensure your field devices do not exceed these limits to prevent premature wear or catastrophic failure of the switching contacts.

Field Installation Guidelines

1. Confirm that the power distribution system is set to 5 VDC before making any connections to the module power input.
2. Mount the module securely in an enclosure with adequate ventilation to support the -20 to 60 °C operating temperature range.
3. Ensure that input wiring is kept as short as possible to minimize induced noise, especially for circuits relying on low resistance (≤ 200 Ω) for the ON state.
4. Verify the integrity of the contact output wiring by confirming that the load voltage and current do not exceed the 250 V / 0.5 A rating.
5. Perform a system-level I/O check to verify that all 32 channels are correctly recognized and that the status logic matches the field-side switch positions.
