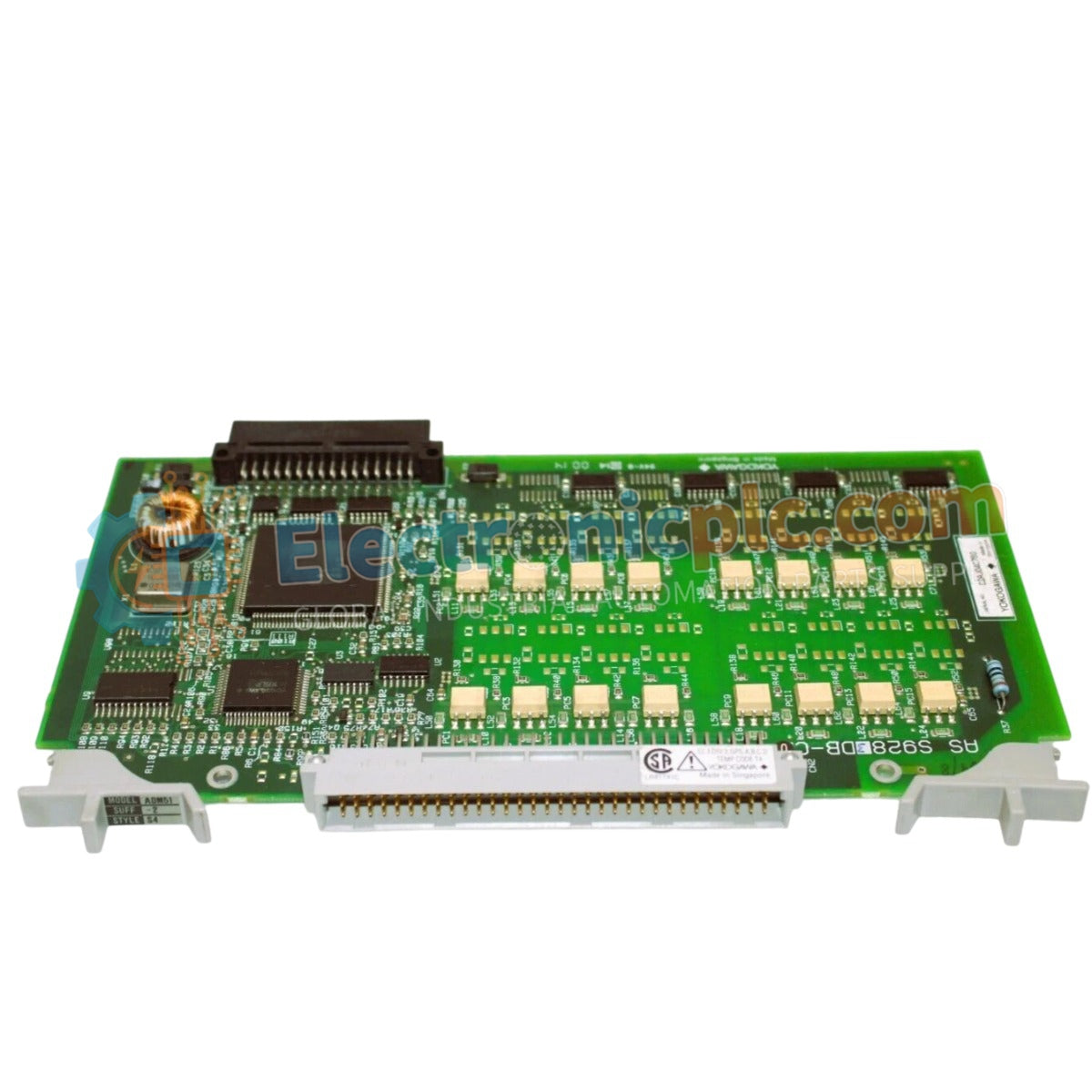

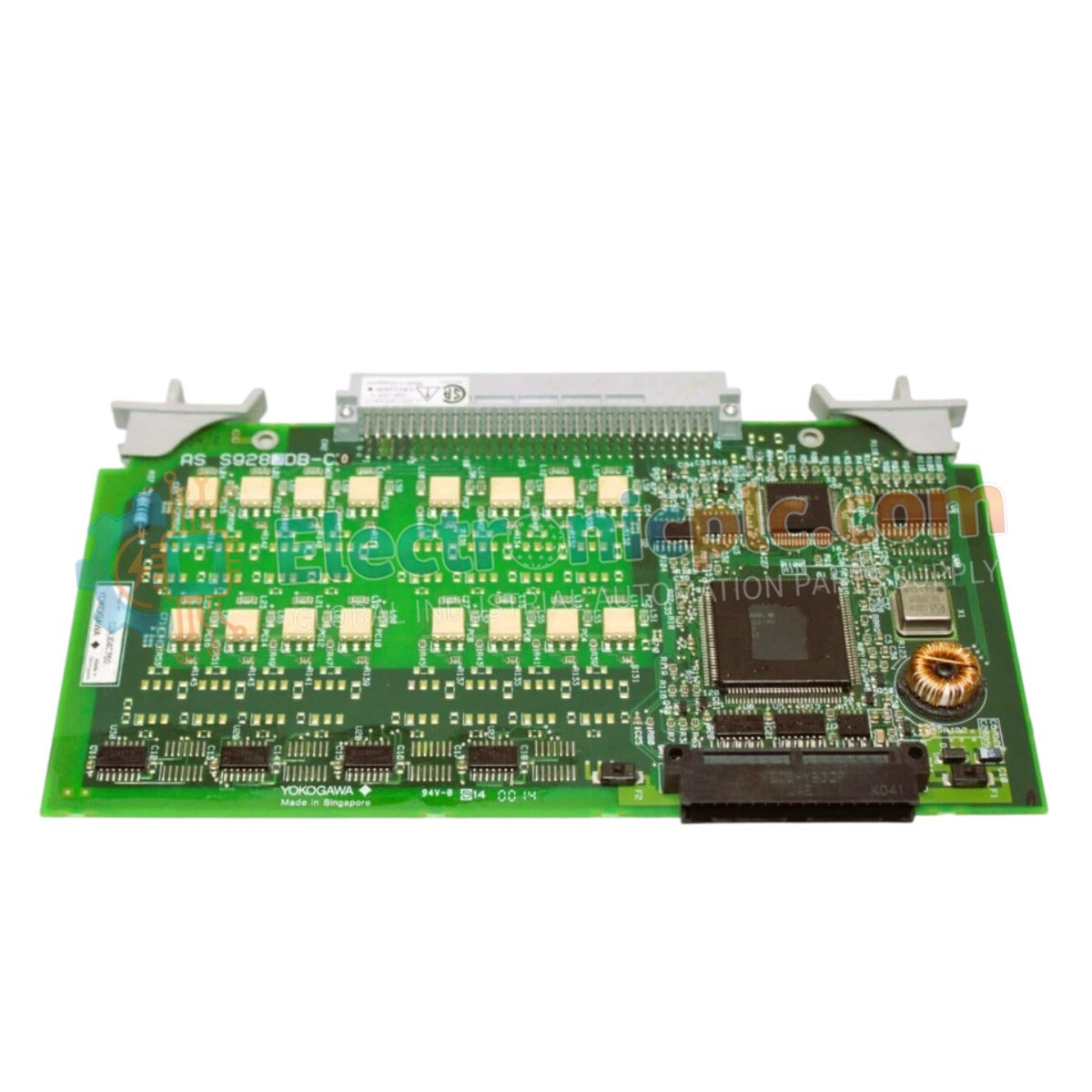

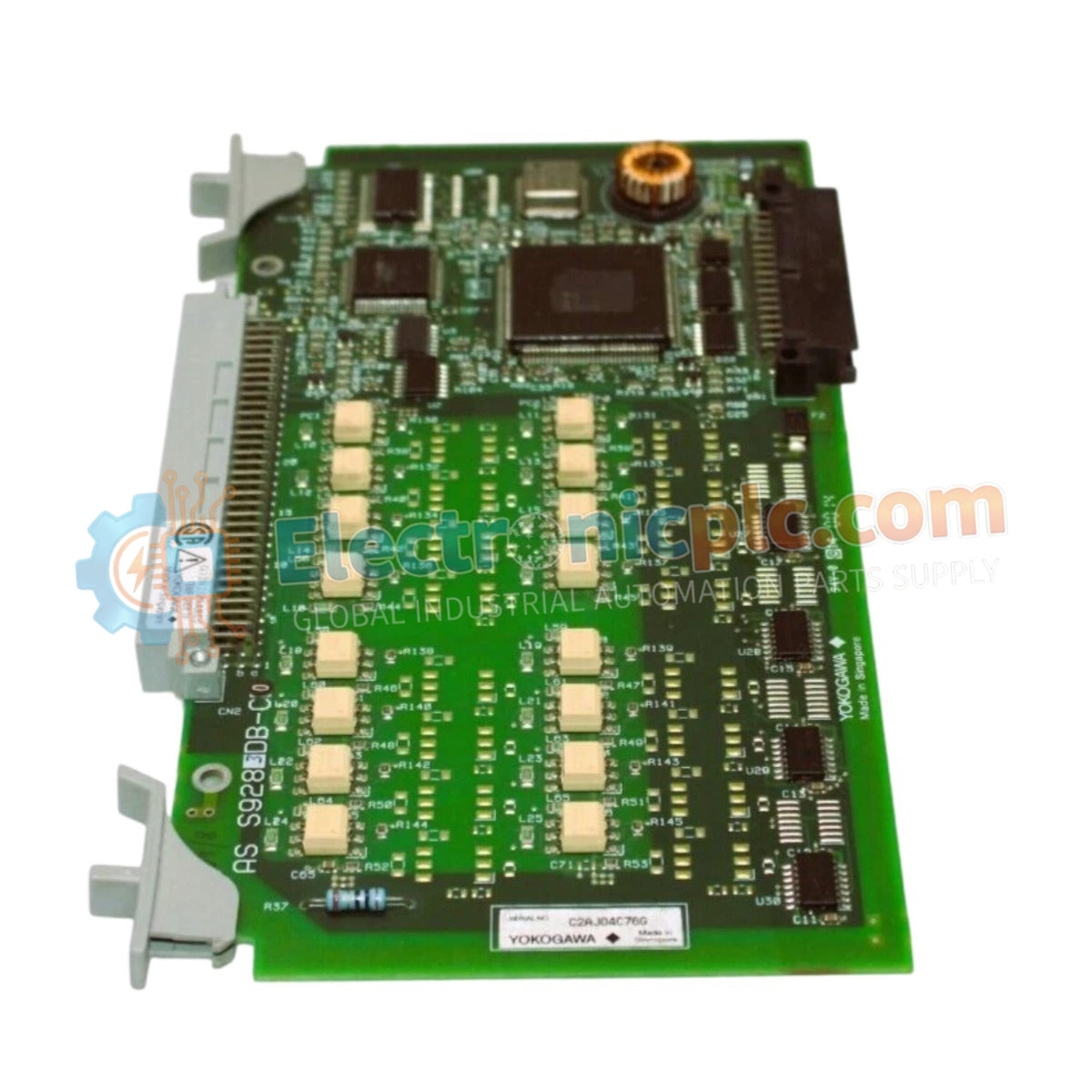

The Yokogawa ADM51-2 (ADM51-2 Contact Input Module), also cataloged as an Analog Input/Output Module, operates as a dedicated hardware component for sensing discrete field states and process variables within Yokogawa distributed control platforms. This component serves as the primary input interface utilized to execute signal acquisition across CENTUM system platforms.

Hardware Specifications

DCS Process Control Features

The ADM51-2 integrates into the DCS architecture to facilitate signal processing via channel-to-channel isolation. This electrical design methodology ensures that fluctuations in input field voltage or output current demand do not compromise the integrity of the module backplane communication bus. Furthermore, the module supports cold junction compensation (CJC) logic, which maintains accurate readings for instrumentation loops requiring precise environmental stability during operation.

Frequently Asked Questions

Q: Can this module be used for both contact sensing and analog signal processing simultaneously?

A: The ADM51-2 is designed for specific I/O configurations; verify the module firmware mapping within the CENTUM project database to confirm current channel allocation for either contact or analog modes.

Q: What is the primary precaution for module extraction from an active backplane?

A: Users must isolate all field-side power sources connected to the terminal block before unseating the module to prevent backplane bus communication errors or transient power surges.

Field Installation Guidelines

1. Ensure the DIN-rail is mounted securely and provides a dedicated chassis ground to the cabinet frame.
2. Route signal cabling through separate wireways from AC power conductors to prevent inductive cross-talk.
3. Utilize shielded twisted-pair cabling for all analog signal paths, ensuring the shield is terminated at a single common ground point.
4. Verify that the terminal block screws are tightened to the required torque specification to prevent signal discontinuity under high-vibration conditions.
5. Inspect backplane connector pins for oxidation or damage prior to seating the module to ensure low-resistance communication contacts.
