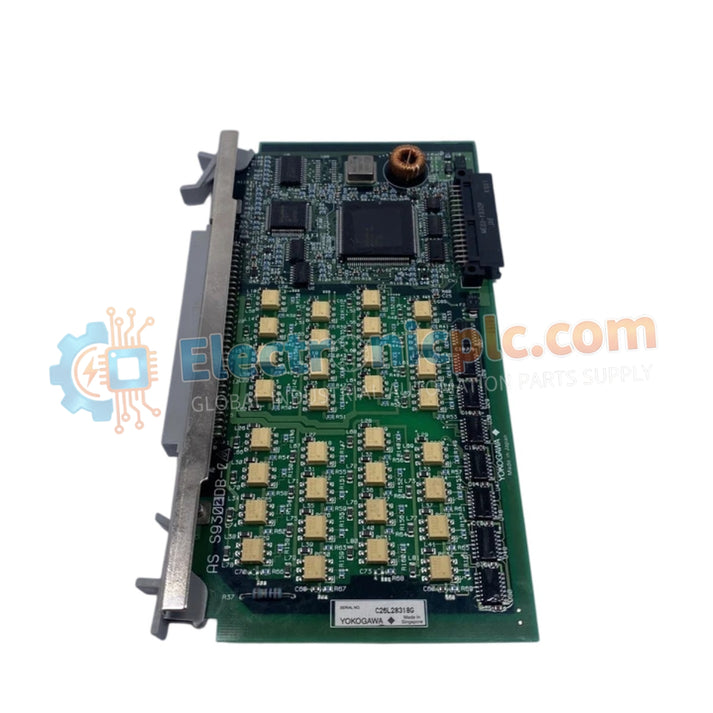

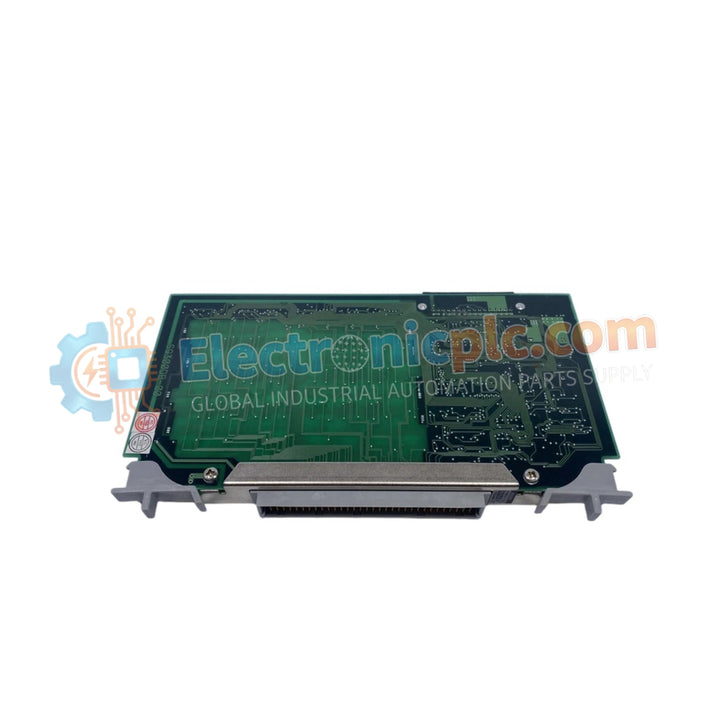

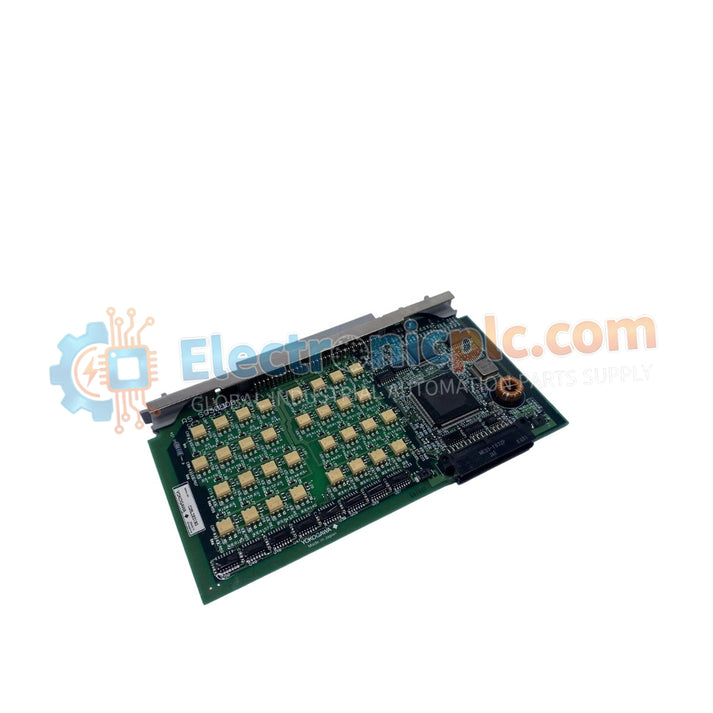

Configured for discrete control execution, the Yokogawa ADM52-2 S4 (ADM52-2 Contact Output I/O Card) facilitates the reliable transmission of on/off control commands to field-side devices within Yokogawa distributed control systems (DCS).

Hardware Specifications

Process Control and Signal Execution

The ADM52-2 S4 card serves as the interface between the control station's digital logic and external process hardware. By providing isolated contact outputs, the module enables the system to reliably energize or de-energize external field devices, such as solenoid valves, motor starters, or alarm indicators. The card is designed to handle the electrical requirements of industrial discrete control while maintaining signal integrity between the controller bus and the field-side load circuits.

Frequently Asked Questions

Q: Is the ADM52-2 S4 suitable for switching high-inductance loads?

A: While designed for industrial control, inductive loads (such as large solenoid valves or contactor coils) generate back-EMF that can damage output contacts; external flyback suppression or snubber circuits are recommended for such applications.

Q: Does this I/O card support hot-swapping?

A: Yes, this card is designed for hot-swapping in compatible Yokogawa I/O nests; however, ensure all field-side load power is properly isolated before removal to prevent unexpected output activation or contact damage.

Field Installation Guidelines

1. Confirm that the I/O nest power is stable and within the specified DC tolerance before module insertion.
2. Align the module housing carefully with the nest backplane rails to ensure pin integrity and prevent mechanical stress on the high-density connector.
3. Secure the module using the front-panel captive screws to establish a reliable chassis ground and ensure consistent electrical contact.
4. Route field output wiring through dedicated channels, keeping output signal paths segregated from low-level analog input cables to avoid signal crosstalk and EMI.
5. Perform an I/O mapping diagnostic via the control system software to verify that the physical outputs correspond correctly to the configured logical control addresses.
