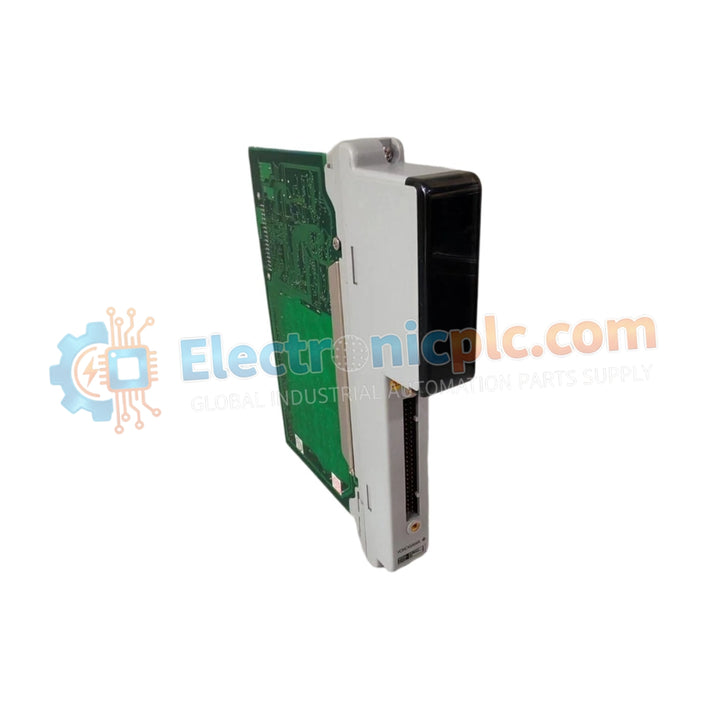

The Yokogawa ADM52 is a specialized Contact Output I/O Card engineered to provide high-reliability discrete control for industrial automation processes. By serving as the physical bridge between system logic processors and final control elements, this module ensures accurate and deterministic command execution for critical field devices.

Hardware Specifications

Process Control & Connectivity

The ADM52 is designed to facilitate robust switching of field-level devices through integrated relay contact logic. This architecture provides the necessary electrical isolation to protect the sensitive control bus from field-side voltage transients. The card is particularly effective in environments requiring the reliable operation of actuators, alarms, and signaling interfaces.

Frequently Asked Questions

Q: Is the ADM52 suitable for direct control of high-current motors?

A: No. The ADM52 is typically designed for control-level signals. If the current requirements of your motor exceed the relay contact ratings defined in the technical documentation, an intermediate power contactor must be used.

Q: How does the relay isolation benefit system integrity?

A: Relay-based contact outputs provide physical separation between the control circuitry and the field power loop. This prevents electrical faults, such as short circuits in the field wiring, from propagating back into the main control processor or damaging communication backplanes.

Field Installation Guidelines

• Mounting: Ensure the ADM52 is securely installed in a standard industrial rack, allowing for proper airflow to prevent heat buildup around the relay components.
• Wiring: Use shielded cabling for all field connections to reduce the risk of electromagnetic interference (EMI). Ground the shield at the cabinet entry to maintain signal integrity.
• Grounding: Bond the module chassis to the system ground bus to ensure effective surge voltage protection and electromagnetic compatibility.
• Commissioning: Confirm output operation using an external multimeter to check for relay continuity (Open/Closed states) before connecting to live field equipment.
