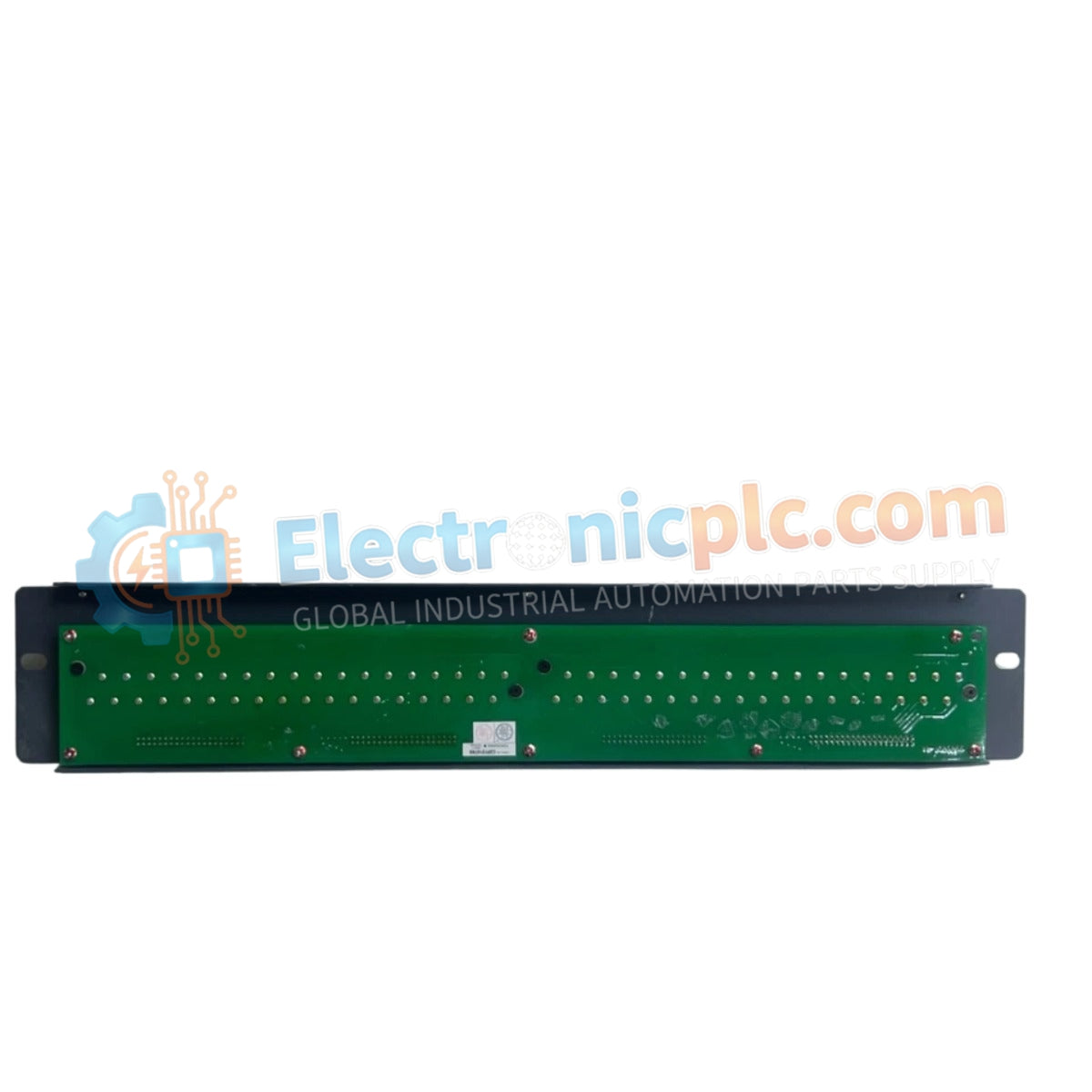

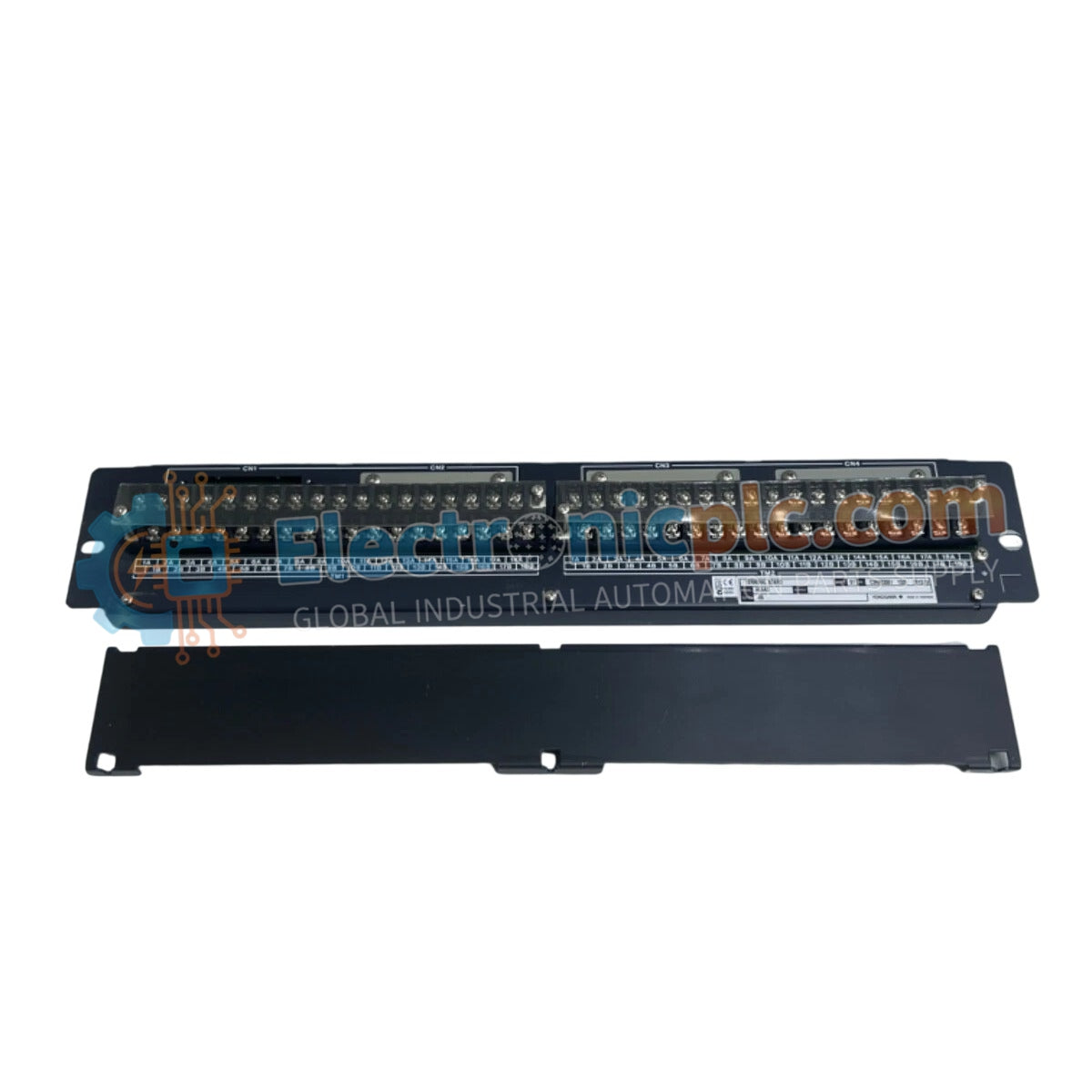

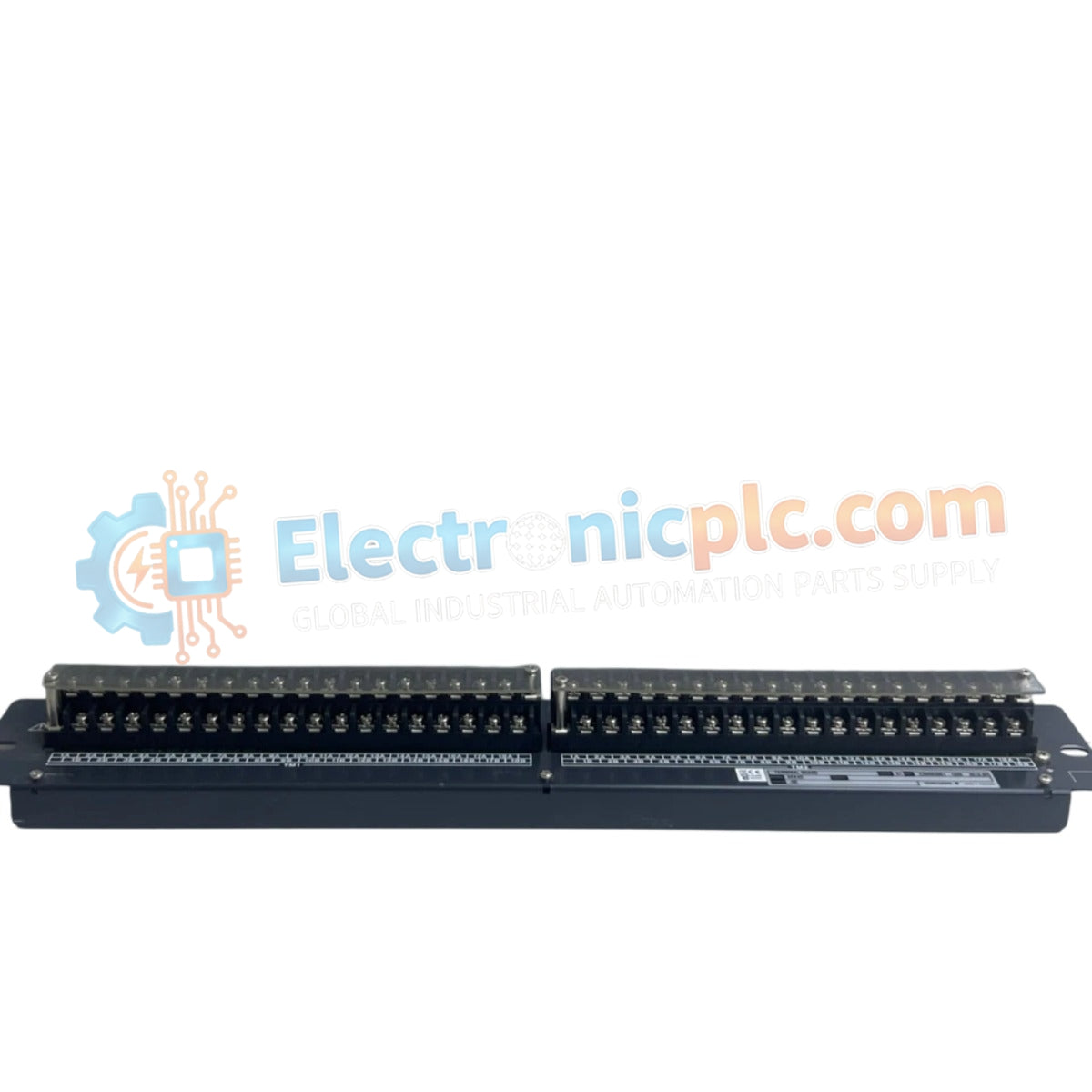

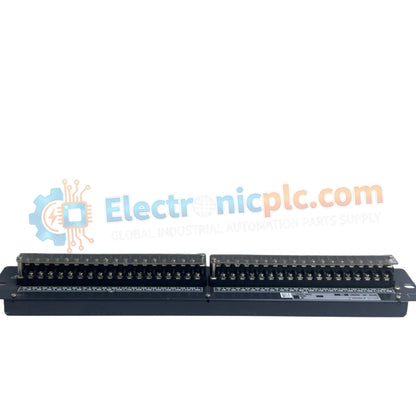

The Yokogawa AEA4D-06, also cataloged as the AEA4D Terminal Board, operates as a dedicated hardware component for signal termination and field wiring integration within distributed control system platforms. This module provides direct physical and electrical execution of 16-channel analog or digital signal routing between field instrumentation and control system I/O modules, supporting both single and dual-redundant configurations.

Suffix Breakdown & Model Matrix

The AEA4D series is identified by specific configuration codes defining surge protection and environmental resilience:

• Model Type: AEA4D (16-Channel Terminal Board).
• Suffix 0: Base configuration without integrated surge absorber.
• Suffix 6: Includes ISA Standard G3 harsh environment protection; excludes explosion protection.

Hardware Specifications

Process Control and DCS Connectivity

The AEA4D-06 board is engineered for integration within DCS architectures requiring 4-20 mA HART loop protocol compatibility. Its circuitry ensures signal integrity through passive routing, designed to maintain channel-to-channel isolation and minimize impedance discrepancies. The board facilitates the connection of field-side cables to the control system via the KS1 connector interface. Cold junction compensation (CJC) for temperature-related inputs is typically managed at the I/O module level, while this board provides the necessary terminal physical connectivity to support such distributed measurement chains.

Frequently Asked Questions

Q: Does the AEA4D-06 support hot-swapping during active system operation?

A: As a passive terminal board, the unit does not contain active electronics; however, disconnecting field wiring while the I/O module is energized may cause loop breaks or process trips. The associated I/O module should be isolated or the loop placed in manual mode before servicing connections.

Q: What is the purpose of the ISA Standard G3 option in this model?

A: The G3 option indicates that the board components and traces are treated to withstand corrosive environments (conforming to ISA-S71.04), reducing the risk of sulfide or chloride oxidation on terminal contacts in industrial plant atmospheres.

Field Installation Guidelines

• Ensure that all field wiring is clearly labeled and that the control station is in a safe state before performing maintenance on the terminal block.
• Mount the board in a clean, dry cabinet environment, ensuring that the KS1 cable is properly seated and secured with its locking mechanism.
• Verify that all M4 terminal screws are tightened to the correct torque to prevent high-resistance contacts.
• Route signal cables away from AC power distribution to avoid electromagnetic induction and signal noise.
• Confirm that the terminal board chassis is tied to the plant grounding bus to ensure electromagnetic compatibility (EMC) and protection against static discharge.
