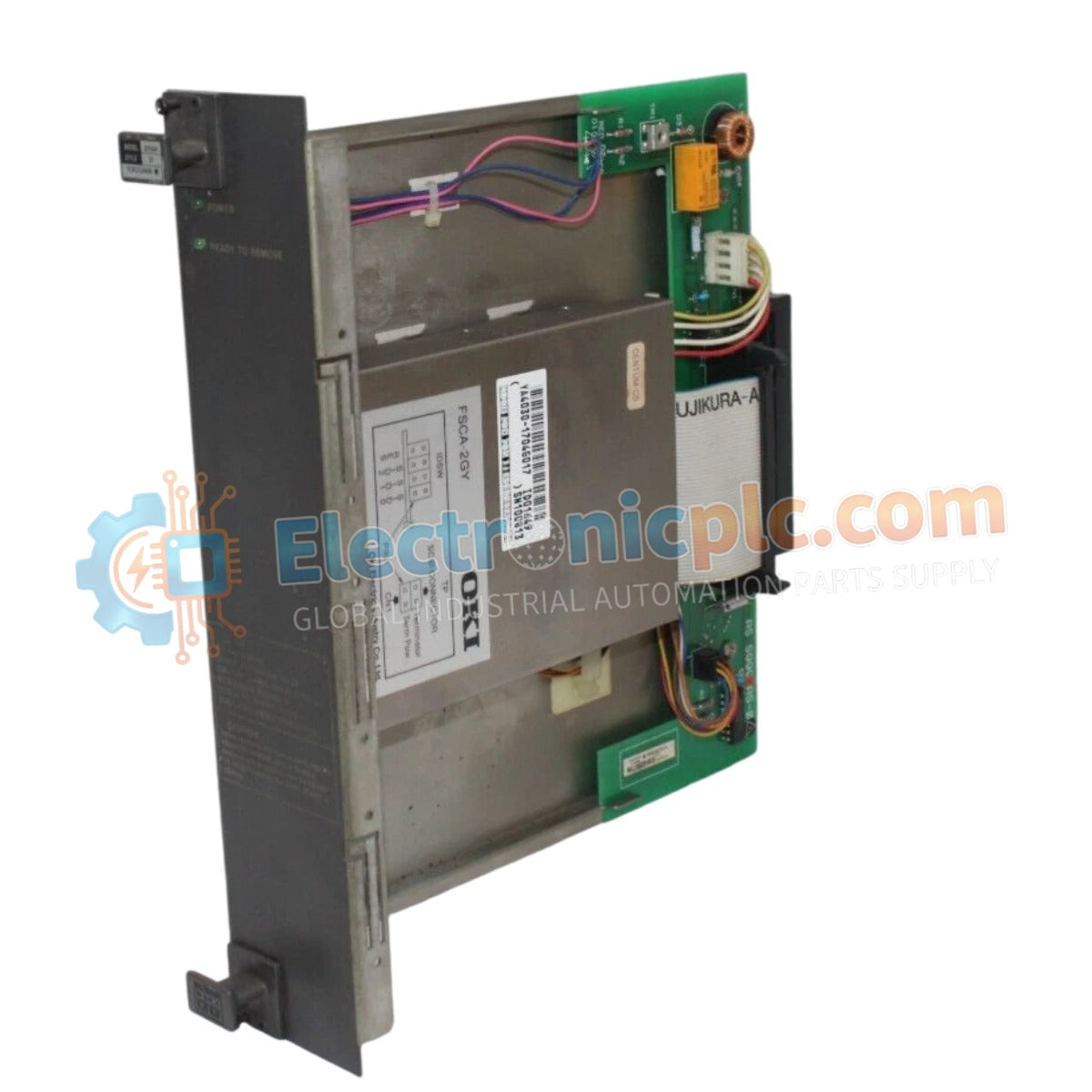

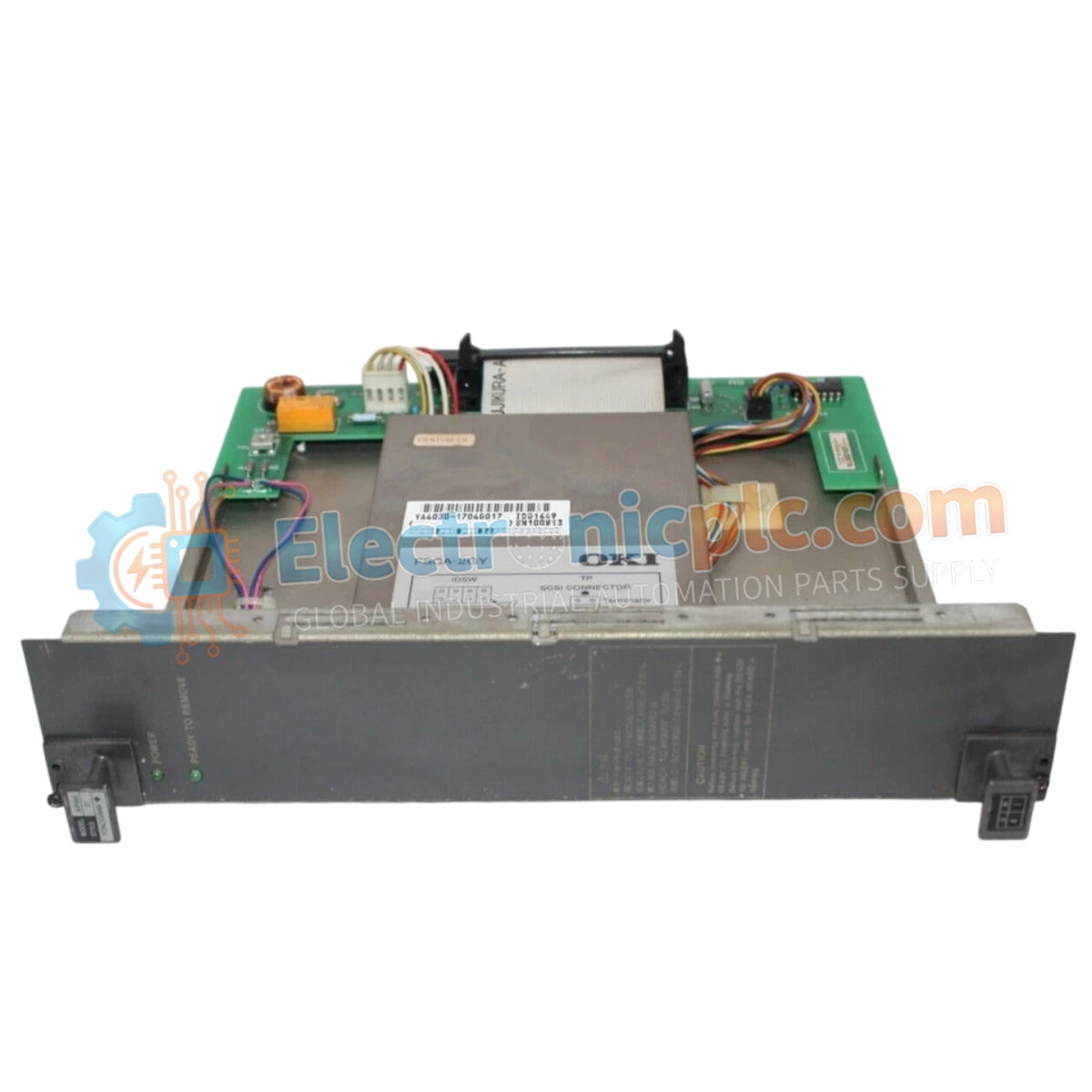

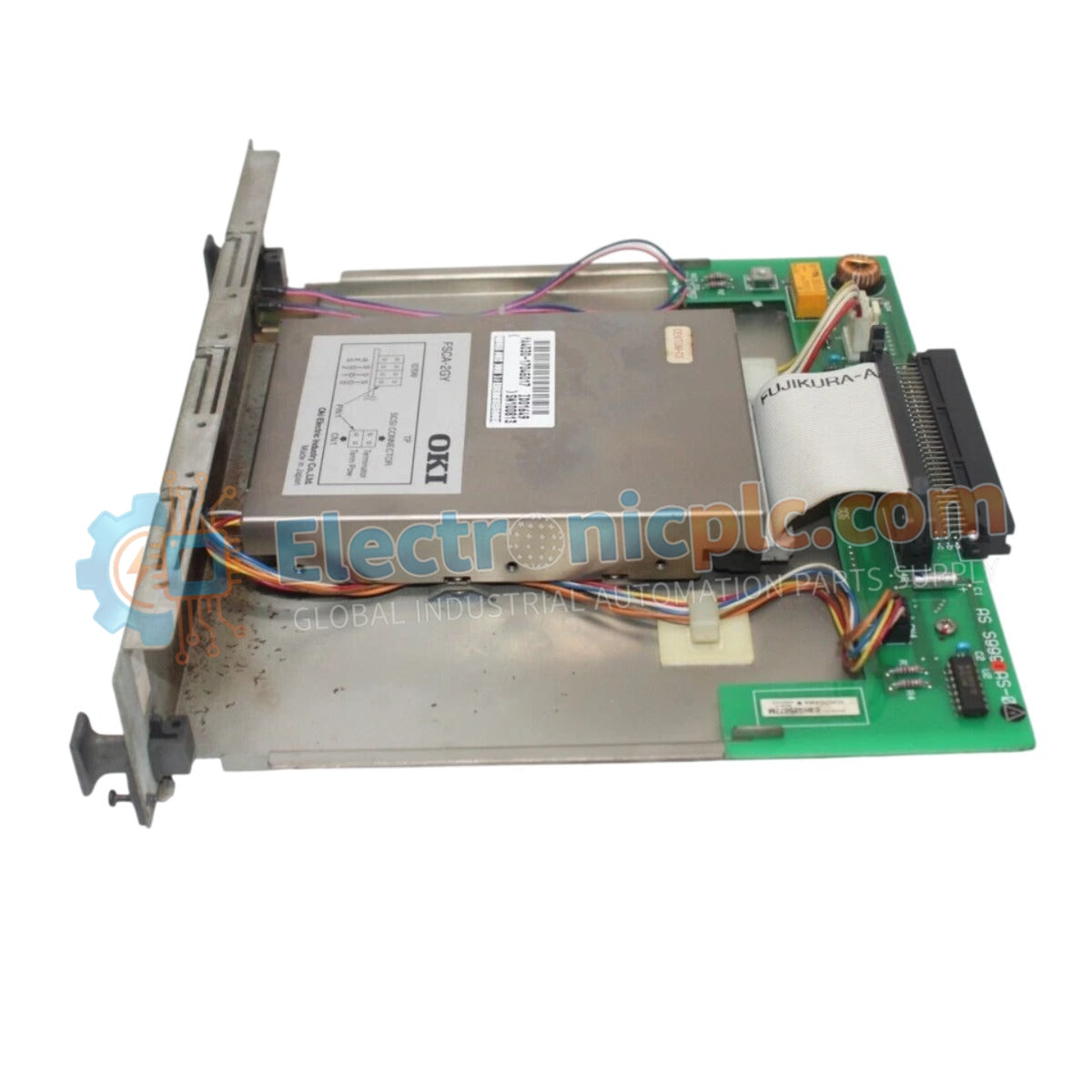

Configured for high-speed data buffering and memory management in CENTUM VP DCS platforms, the Yokogawa AIP444-S1 (AIP444 Hard Disk Module) provides direct physical execution of data storage operations within the control network.

Hardware Specifications

DCS Process Control & Data Integrity

The AIP444-S1 architecture maintains strict channel-to-channel isolation to prevent electrical noise interference within the control loop. In compliance with DCS communication standards, the module facilitates FOUNDATION Fieldbus and RS-485 signaling, ensuring deterministic data transfer. The unit utilizes cold junction compensation (CJC) logic where applicable to maintain sensor signal accuracy, alongside dedicated buffer registers to manage the 256 KB of non-volatile memory during peak polling cycles from the central processor.

Frequently Asked Questions

Q: Can the AIP444-S1 be replaced while the system is under power?

A: No, this module does not support hot-swap functionality. Power must be isolated from the specific backplane slot before removal to prevent potential damage to the internal bus interface.

Q: How should the module be configured for RS-485 communication?

A: Ensure that the termination resistors are correctly matched to the network impedance. Use shielded twisted-pair cabling and ground the shield at a single point to mitigate electromagnetic interference.

Field Installation Guidelines

• Mount the module vertically within the standard system cabinet to allow for natural convection cooling, ensuring the operating temperature remains between -10 deg C and +60 deg C.
• Verify that the 24 VDC power supply is regulated and filtered; voltage fluctuations exceeding the rated tolerance may lead to memory write errors.
• Ensure that Ethernet and RS-485 cables are routed in separate cable ducts from high-voltage power lines to prevent induced signal noise.
• Tighten all terminal block screws to the specified torque to guarantee mechanical stability and consistent electrical contact under high-vibration conditions.
