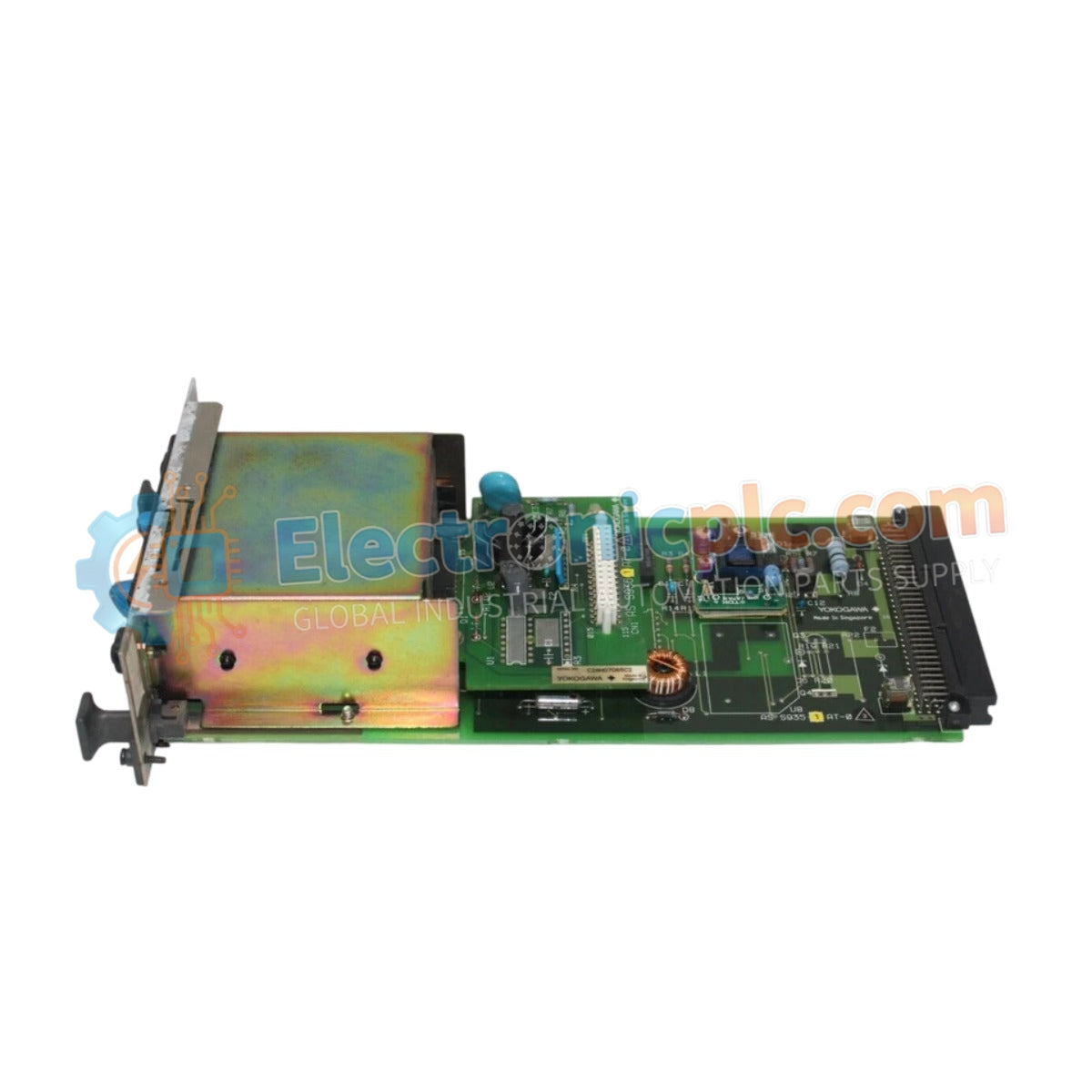

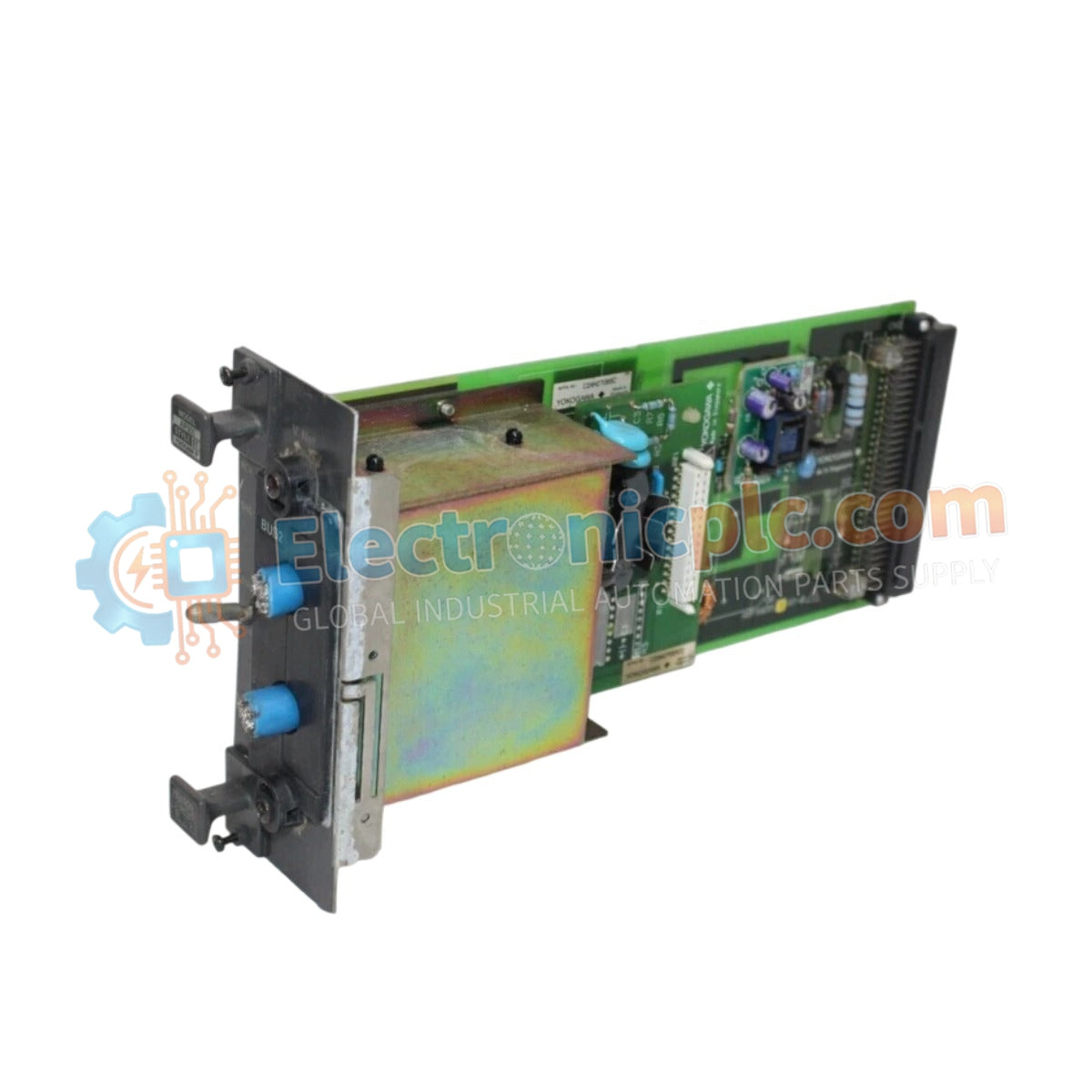

Configured for high-versatility signal acquisition in Yokogawa control platforms, the YOKOGAWA AIP501 (AIP501 Analog Input Module) provides direct physical and electrical interface execution for 16 universal analog input channels. This hardware component manages multi-channel conversion and HART communication within CENTUM VP, CS 1000, and CS 3000 distributed control systems.

Hardware Specifications

Process Control Instrumentation Connectivity

The AIP501 supports a diverse array of field instrumentation by providing configurable inputs for voltage, current, RTD, and thermocouple signals. Integrated HART protocol support ensures seamless data exchange and diagnostic visibility between field devices and the DCS controller. The module's design facilitates precise measurement across 16 independent channels, maintaining high data fidelity even in demanding industrial environments.

Frequently Asked Questions

Q: Can the AIP501 be configured to support different signal types on different channels simultaneously?

A: Yes, the module is designed as a universal input unit. Channel-specific configuration can be performed via the DCS engineering station, allowing for the mix of voltage, current, RTD, and thermocouple inputs within a single module.

Q: Is cold junction compensation (CJC) required for thermocouple inputs?

A: The AIP501 provides internal cold junction compensation circuitry for thermocouple measurements. Ensure that the module is installed in a thermally stable location within the cabinet to maintain the accuracy of the compensation logic.

Field Installation Guidelines

• Verify that the rack-mount slot is clear of debris before insertion to ensure proper electrical contact with the backplane.
• Use shielded, twisted-pair cabling for all input signal loops to minimize inductive and electromagnetic noise, which is critical for maintaining high-precision RTD and TC readings.
• Secure field wires firmly into the terminal block, ensuring that no bare conductor is exposed beyond the termination point to prevent short-circuiting.
• If using RTD or thermocouple sensors, ensure that the input type configuration in the DCS software matches the sensor element type to prevent measurement errors.
• Perform a loop verification check after installation to calibrate the inputs and confirm that the HART signal is correctly detected by the system's asset management software.
