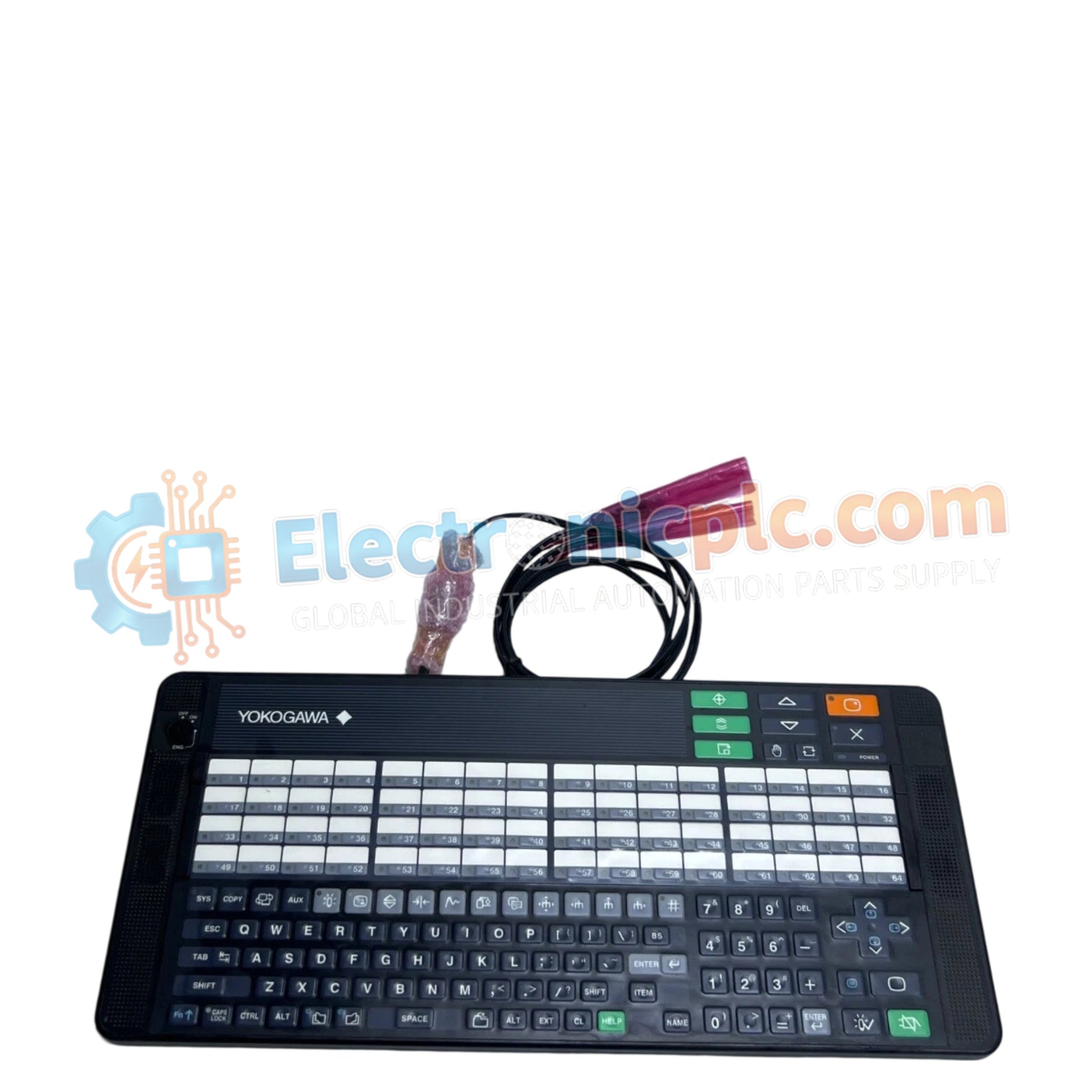

Configured for desktop-type Human Interface Stations (HIS), the Yokogawa AIP830-1 (AIP830-1 Flat-Panel Operation Keyboard) provides direct physical and electrical execution of operator control inputs and audible feedback within DCS environments.

Hardware Specifications

Process Interface and Ergonomic Integration

The AIP830-1 integrates critical operator interface functions, including a USB-driven speaker and tactile keyboard matrix, to facilitate responsive interaction with CENTUM system displays. The keyboard utilizes a dual-USB interface to separate data streams for input signals and audio output, ensuring that packet latency does not affect command execution during high-demand process states. The module also features VESA-compliant mounting, allowing for flexible integration into existing control room desk configurations while maintaining steady operational positioning.

Frequently Asked Questions

Q: Can the AIP830-1 be used with third-party computers or non-Yokogawa HIS?

A: The AIP830-1 is specifically designed for Yokogawa Human Interface Stations. Communication protocols and internal driver identification are optimized for proprietary CENTUM software architectures; use with standard desktop PCs may result in limited functionality or complete incompatibility.

Q: How is the 5 V power supply requirement managed?

A: The device is powered entirely via the host USB ports. Ensure the connected HIS USB ports are capable of providing the full 1 A current requirement. Using unpowered USB hubs may result in insufficient power, leading to intermittent speaker operation or keyboard input failure.

Field Installation Guidelines

• VESA Mounting: When utilizing the optional VESA bracket, ensure the mounting surface can support the 2.5 kg load. Use M4 screws with appropriate thread engagement to prevent damage to the keyboard chassis.
• Cable Routing: Keep the USB interface cables clear of high-voltage power sources to prevent EMI from inducing noise into the keyboard data stream. Secure cables to the desk or mounting arm to prevent strain on the USB ports.
• Operating Environment: The AIP830-1 is intended for climate-controlled environments (5 deg C to 40 deg C). Avoid installation in areas with excessive dust or high humidity, as the flat-panel design lacks IP-rated environmental sealing against liquids.
• USB Port Priority: Connect the keyboard and speaker cables directly to the workstation ports to maintain signal integrity and ensure the required 5 V power delivery is maintained during high-volume audio output.
