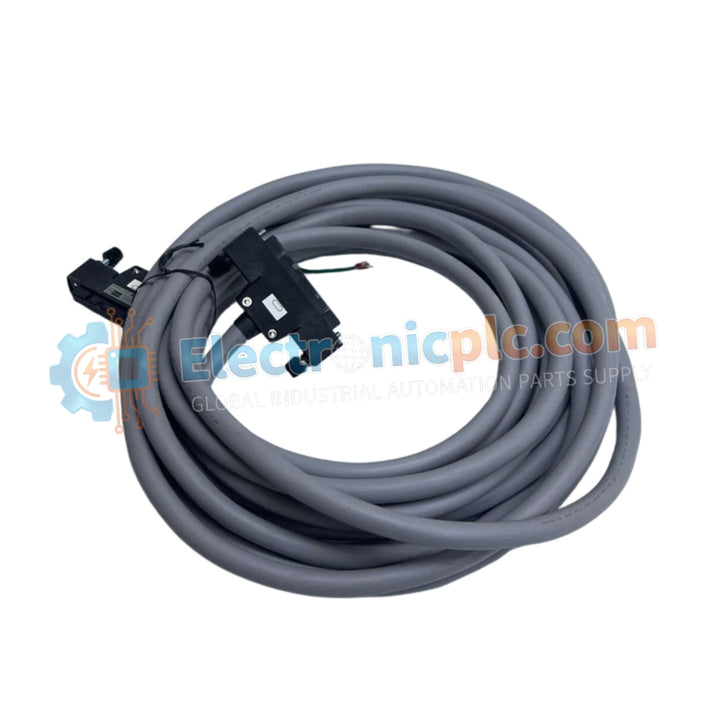

The Yokogawa AKB331-M007 (AKB331-M007 Signal Cable) operates as a dedicated hardware component for deterministic signal transmission between field interface modules and terminal boards within Yokogawa process control systems.

Suffix Breakdown & Model Matrix

• AKB331-M007: Base designation for a high-density, multi-core signal cable assembly; the suffix indicates the specific length and connector configuration optimized for system integration.

Hardware Specifications

Industrial Control and Signal Integrity

The AKB331-M007 facilitates the interconnection of I/O modules and remote terminal boards, ensuring deterministic signal transit across the control cabinet architecture. The cable utilizes high-density shielding to minimize crosstalk and electromagnetic interference (EMI) impacts, which is necessary for maintaining the integrity of low-level analog and digital signals. Its internal wiring architecture is designed to support high-velocity bus communication and I/O density scaling, ensuring that signal attenuation is kept within acceptable limits for real-time process monitoring. The mechanical design of the connectors ensures robust contact, preventing signal degradation caused by vibration in industrial environments.

Frequently Asked Questions

Q: Is the AKB331-M007 cable suitable for use in cable trays with high-voltage power lines?

A: No. To maintain signal integrity and comply with standard industrial installation practices, this signal cable must be routed through dedicated cable trays separated from high-voltage AC or DC power cabling to avoid induced noise.

Q: Can the cable be shortened or extended in the field?

A: Modification of the AKB331-M007 is not recommended, as it can compromise the shielding integrity and connector pin-out configuration, potentially leading to intermittent communication errors or system faults.

Field Installation Guidelines

1. Inspect the connectors for any bent pins or debris prior to insertion into the module or terminal board ports.
2. Ensure the cable is properly supported along its length using cable ties or trays to prevent excessive mechanical strain on the connector housing.
3. Observe the minimum bend radius specifications to prevent internal wire stress or micro-cracks in the conductor insulation.
4. Secure the connector locking mechanism or retaining screws firmly to ensure the shield provides a continuous electrical path for noise dissipation.
5. Verify signal continuity through a diagnostic check on the control station once the cable is fully seated to ensure correct pin-to-pin alignment.
