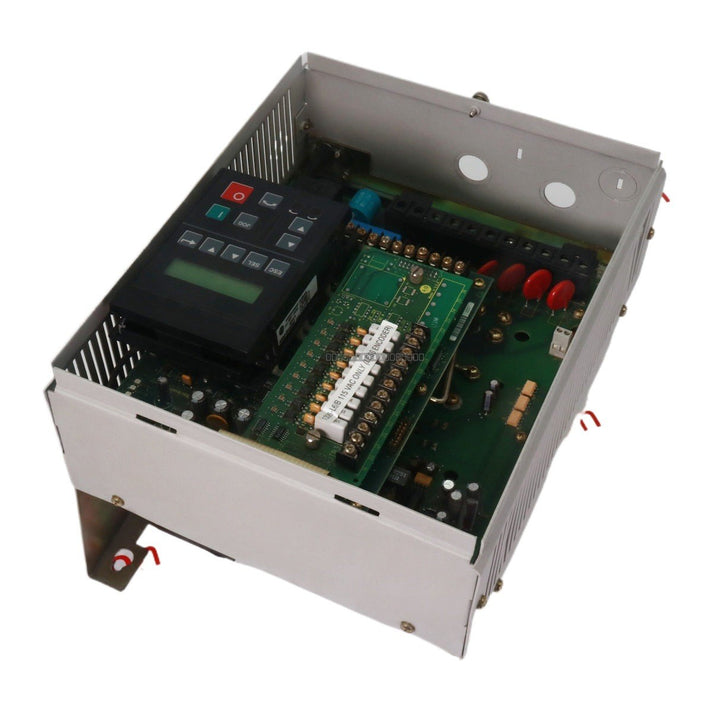

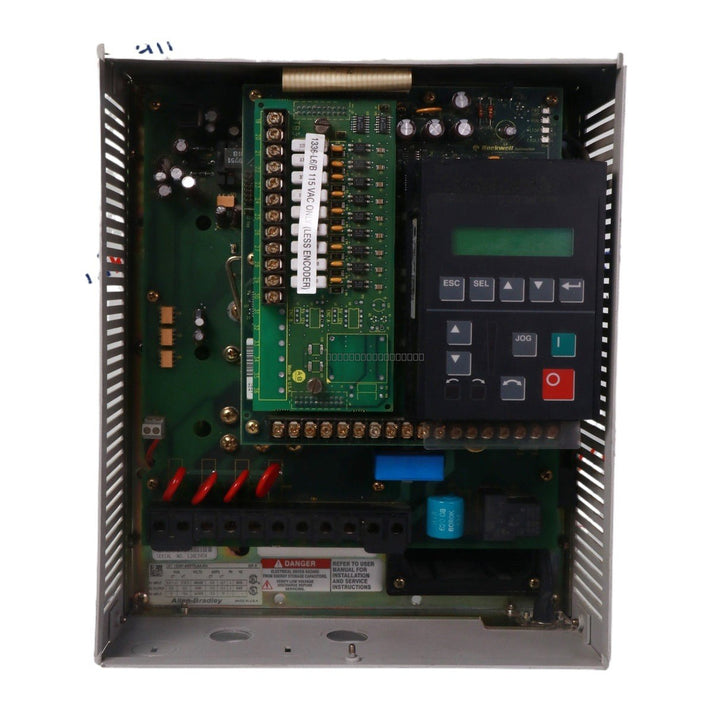

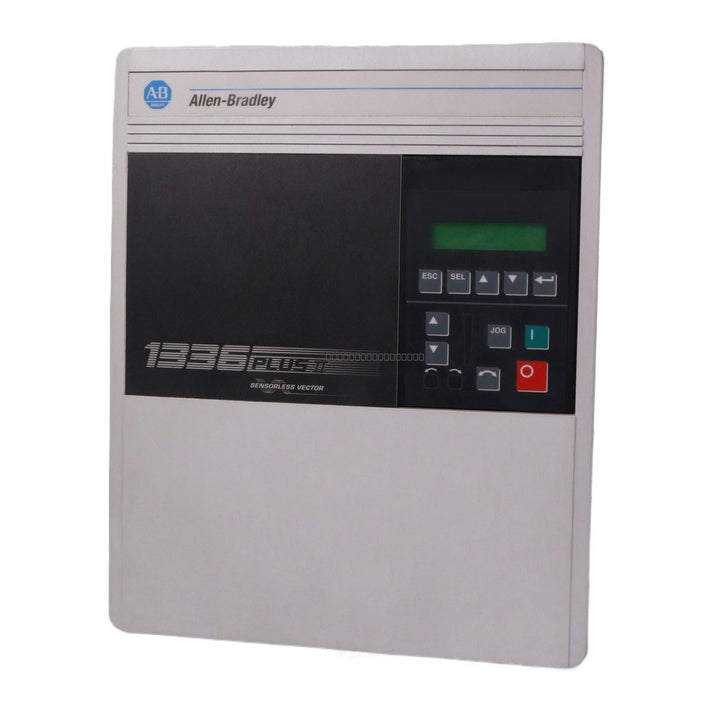

The Allen-Bradley 1336F-BRF75-AA-EN is a member of the 1336 PLUS II series of adjustable frequency AC drives. Designed for precise motor control in industrial environments, this unit provides reliable performance for a wide range of variable speed applications. Please note that this product has been discontinued by the manufacturer.

Features

• Adjustable frequency control for optimized motor performance
• Input voltage range: 380-480V AC or 513-620V DC
• Power rating: 5.5 kW / 7.5 HP
• Enclosure rating: IP20 / NEMA 1
• Frame size: A4

Technical Specifications

Installation Guidelines

• Ensure the drive is mounted in a vertical position to allow for proper heat dissipation.
• Maintain adequate clearance around the unit for airflow; refer to the user manual for specific spacing requirements.
• Verify that the input power supply matches the voltage specifications of the drive before connection.
• Ensure all wiring is properly shielded and grounded to minimize electromagnetic interference (EMI).
• Always disconnect and lock out power before performing any installation, wiring, or maintenance tasks.
• Handle the unit with care to avoid damage to internal components; use ESD-safe practices when handling the drive electronics.

FAQ

Is the 1336F-BRF75-AA-EN still in production? No, this model has been discontinued by Allen-Bradley. We provide refurbished or surplus units to support legacy systems.

What is the enclosure rating for this drive? This unit features an IP20 / NEMA 1 enclosure, suitable for indoor use in controlled environments.
