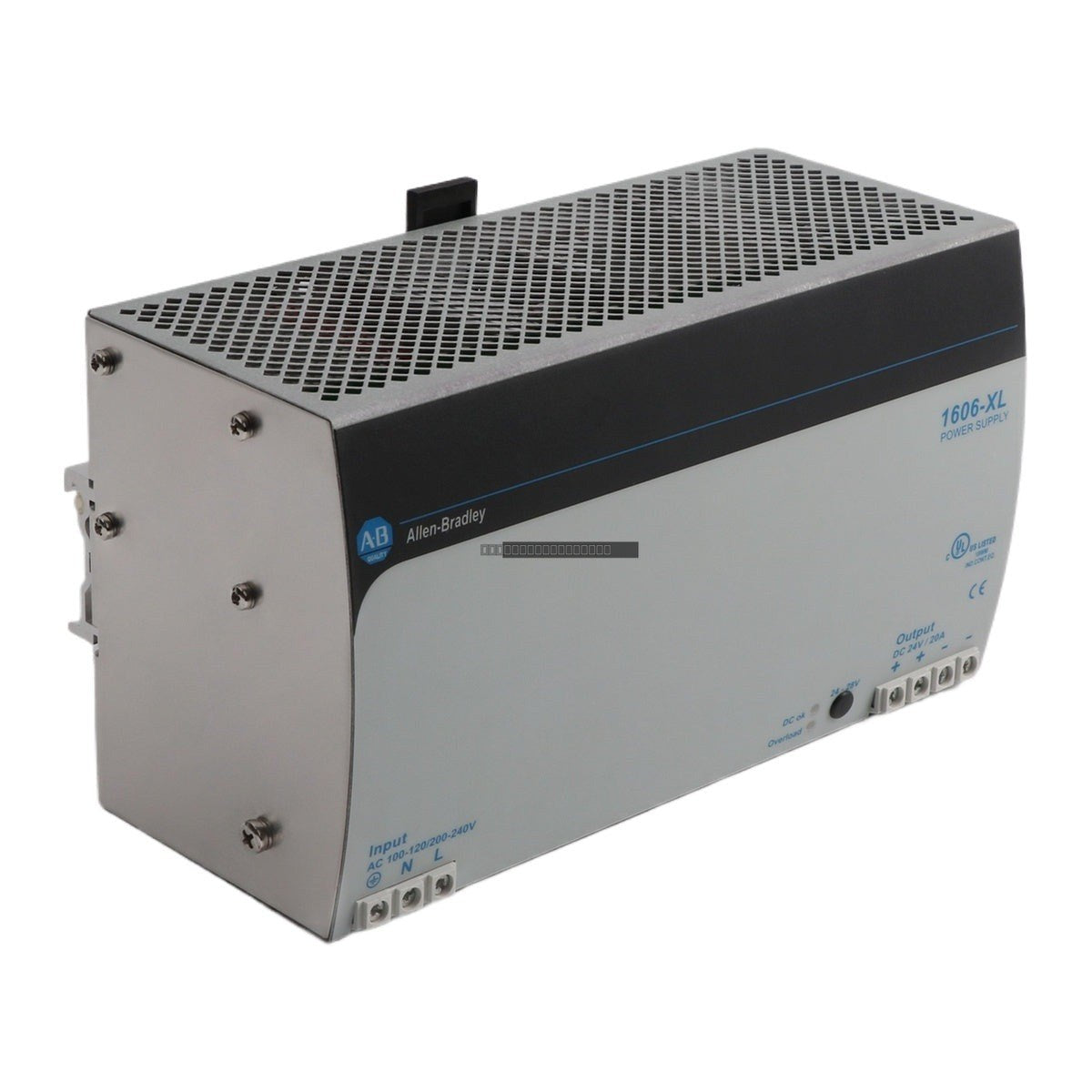

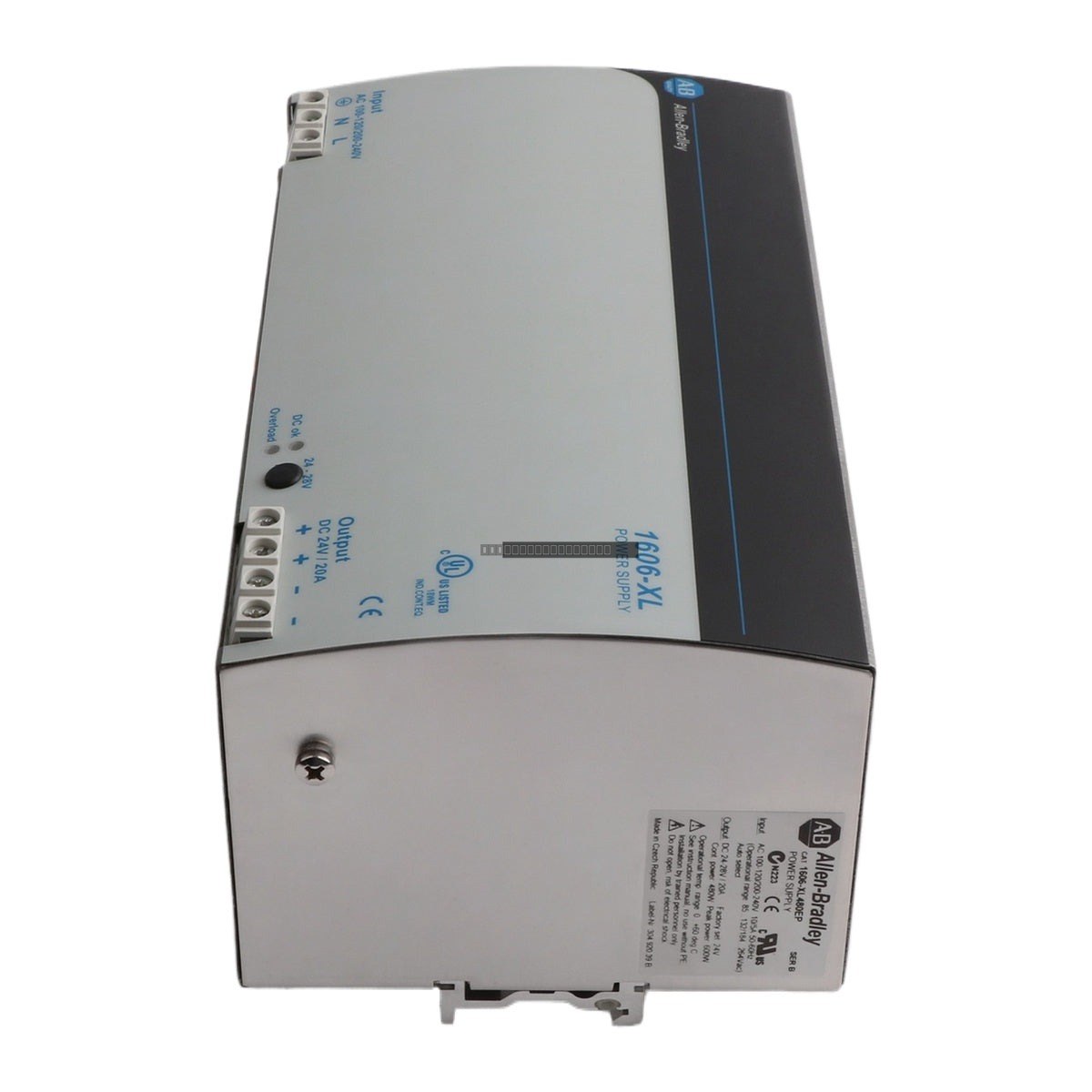

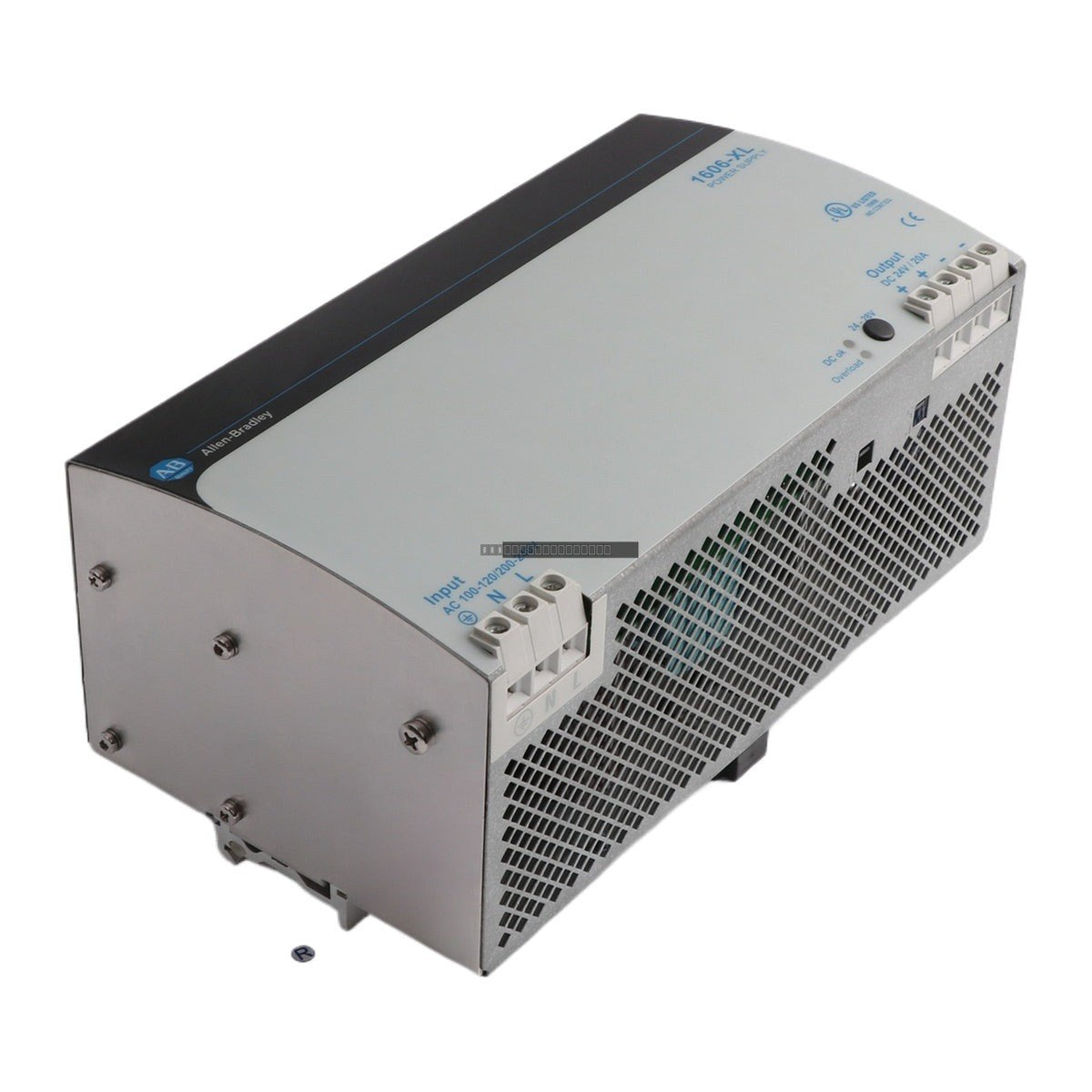

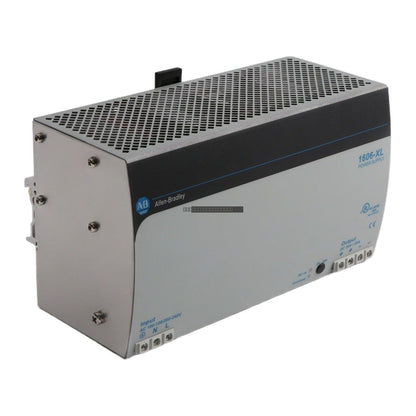

The Allen-Bradley 1606-XL480EP is a high-performance industrial power supply unit designed for reliable operation in demanding automation environments. This unit provides stable DC output for control systems, sensors, and other critical industrial equipment. Please note that this specific model has been discontinued by the manufacturer.

Features

• Input voltage range: 100-120/200-240 VAC, auto-selectable or switchable
• Input frequency: 50/60 Hz
• Output voltage: 24-28 VDC, adjustable
• Output current: 20 A
• Robust industrial design for DIN-rail mounting
• Compatible as a replacement for the 1606-XL480EP/B model

Applications

This power supply is suitable for a wide range of industrial applications including PLC control cabinets, distributed I/O systems, and instrumentation power distribution where a reliable 24V DC source is required.

Technical Specifications

Installation Guidelines

• Ensure the power supply is mounted in an upright position to allow for proper convection cooling.
• Maintain adequate clearance around the unit to prevent overheating.
• Verify that the input voltage selector is set correctly for your local power grid before applying power.
• Use appropriately sized wiring for the input and output terminals to handle the 20A current load.
• Always disconnect the main power source before performing any wiring or maintenance on the unit.
• Ensure the DIN-rail is properly grounded to maintain system-level EMI protection.

FAQ

Is the 1606-XL480EP still in production? No, this model has been discontinued by the manufacturer. We offer it as a reliable spare part solution.

Can this unit replace the 1606-XL480EP/B? Yes, the 1606-XL480EP is compatible with the 1606-XL480EP/B spare model designation.
