Description

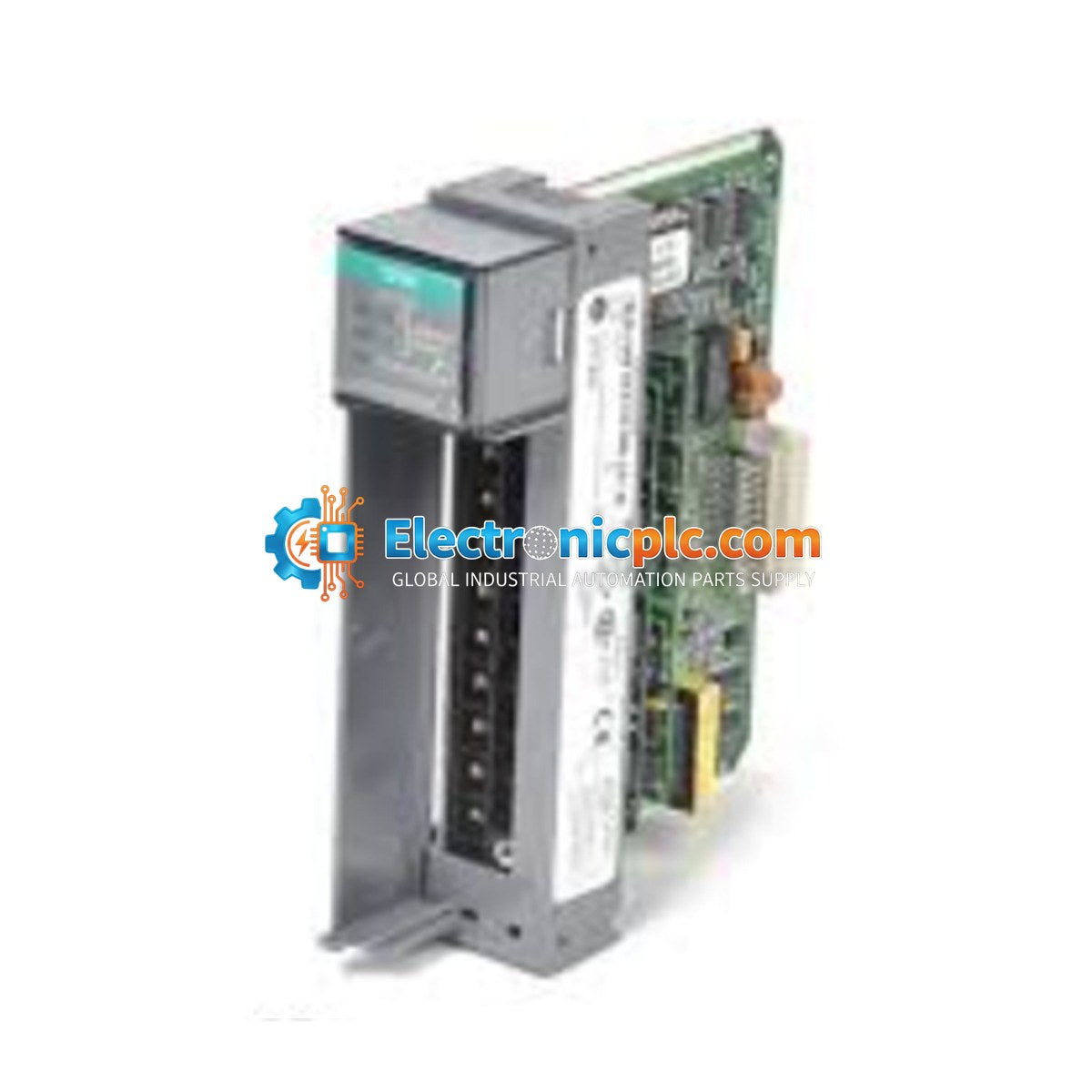

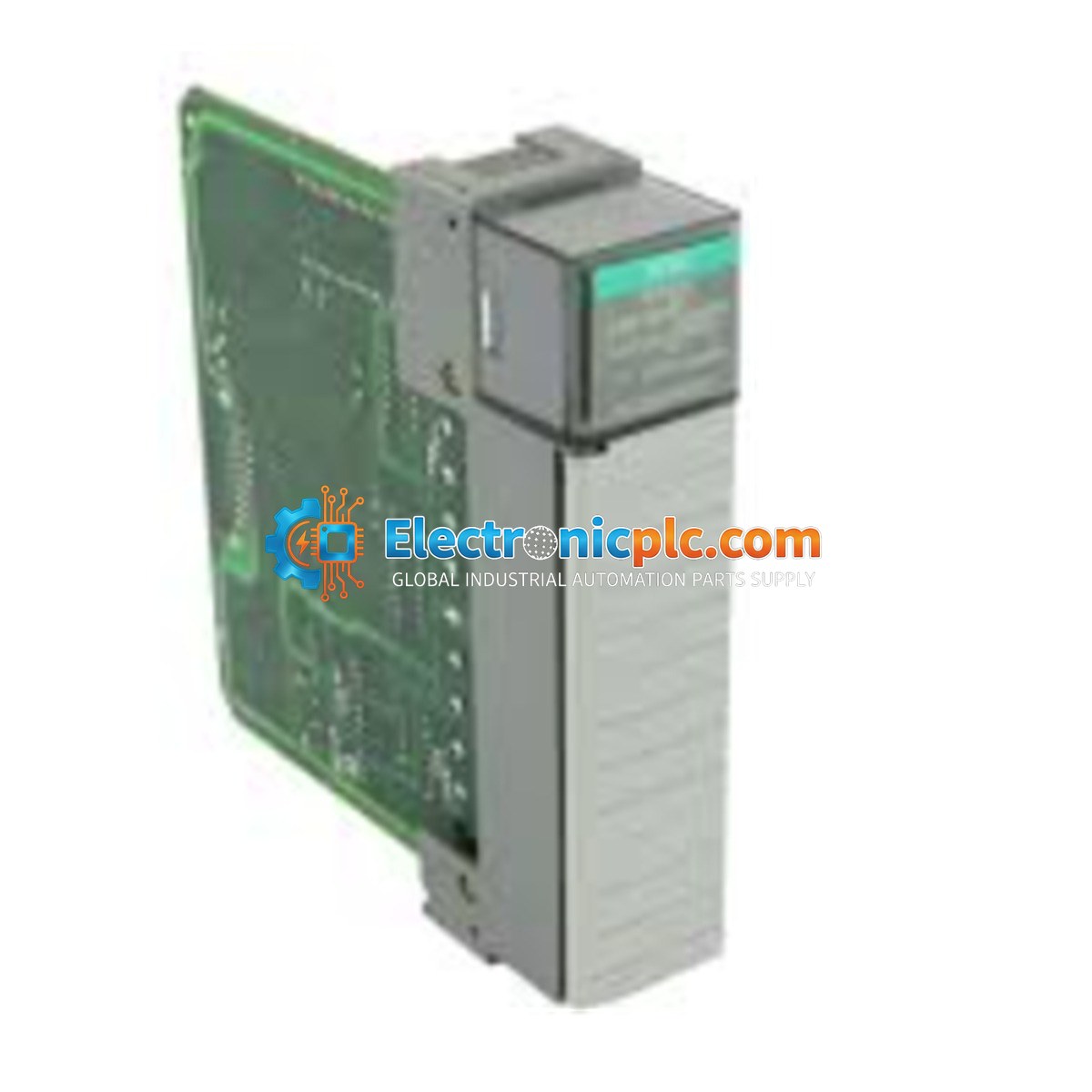

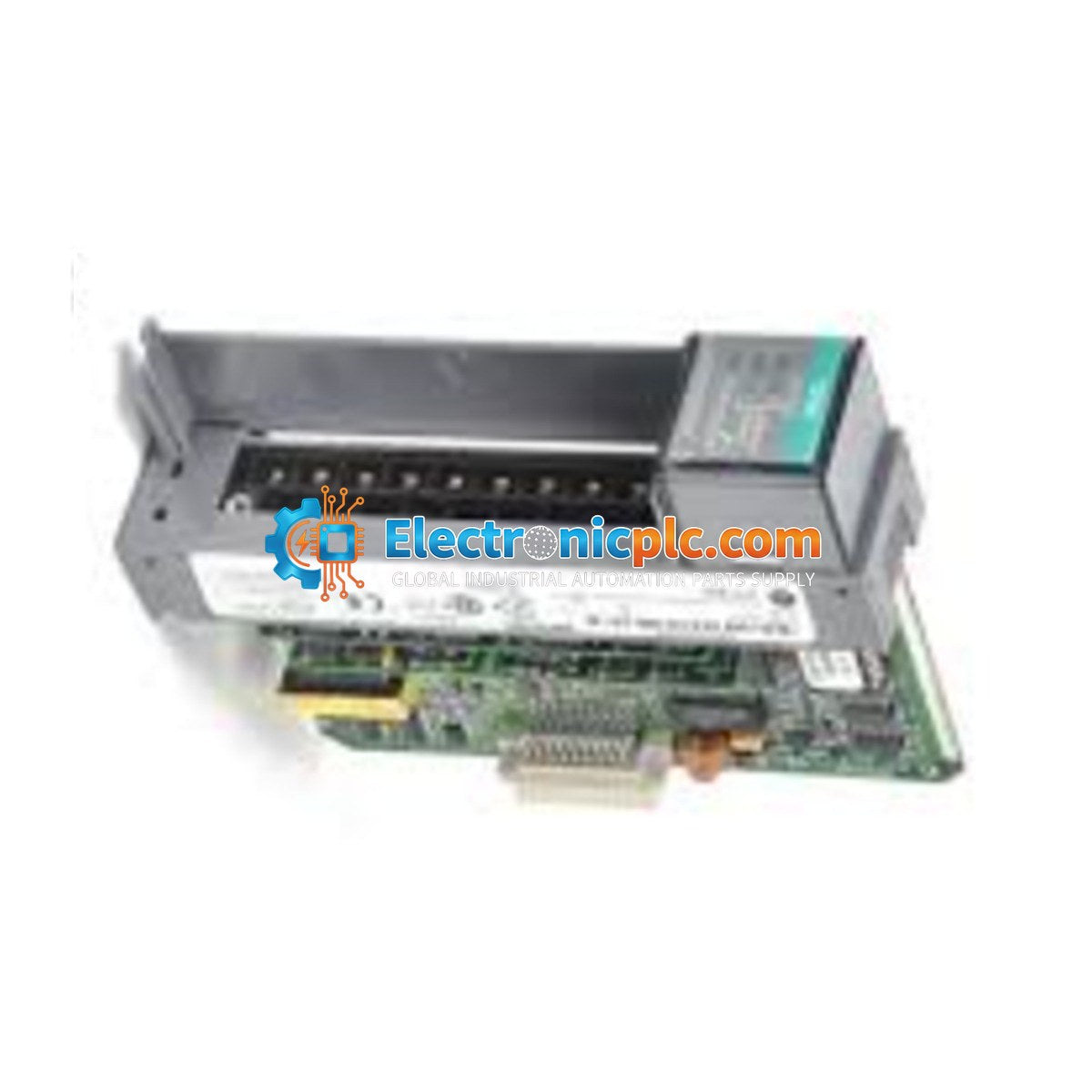

The Allen-Bradley 1746-FIO4I is a high-speed analog combination I/O module engineered for the SLC 500 programmable controller platform. Designed for applications requiring rapid signal processing, this module provides two analog input channels and two analog output channels in a single-slot configuration. The module utilizes successive approximation conversion to achieve high-speed performance, making it suitable for control loops that demand faster response times than standard analog modules can provide.

Features

• High-Speed Conversion: Utilizes successive approximation for a 7.5 microsecond conversion time.
• I/O Configuration: Two configurable voltage/current inputs and two dedicated current output channels.
• High Bandwidth: Features a 7 kHz bandwidth for rapid signal tracking.
• Resolution: Provides 12-bit resolution for inputs and 14-bit resolution for outputs.
• Compatibility: Fully compatible with both fixed and modular SLC 500 chassis systems.

Technical Specifications

Installation Guidelines

• Power Down: Always remove power from the SLC 500 chassis before inserting or removing the module to prevent electrical damage.
• Slot Placement: The module can be installed in any available I/O slot of a modular SLC 500 chassis.
• Wiring: Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI). Ensure the shield is grounded at one end only.
• Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module.
• Cooling: Ensure adequate ventilation within the enclosure to maintain the operating temperature within the specified 0 to 60 degC range.

FAQ

What is the primary advantage of the 1746-FIO4I over standard analog modules?

The 1746-FIO4I is designed for high-speed applications. Unlike standard modules that typically use Sigma-Delta conversion, this module uses a successive approximation method, resulting in a significantly faster 7.5 microsecond conversion time and a 7 kHz bandwidth.

Is this module compatible with all SLC 500 systems?

Yes, the 1746-FIO4I is compatible with both fixed and modular SLC 500 hardware platforms.
