Description

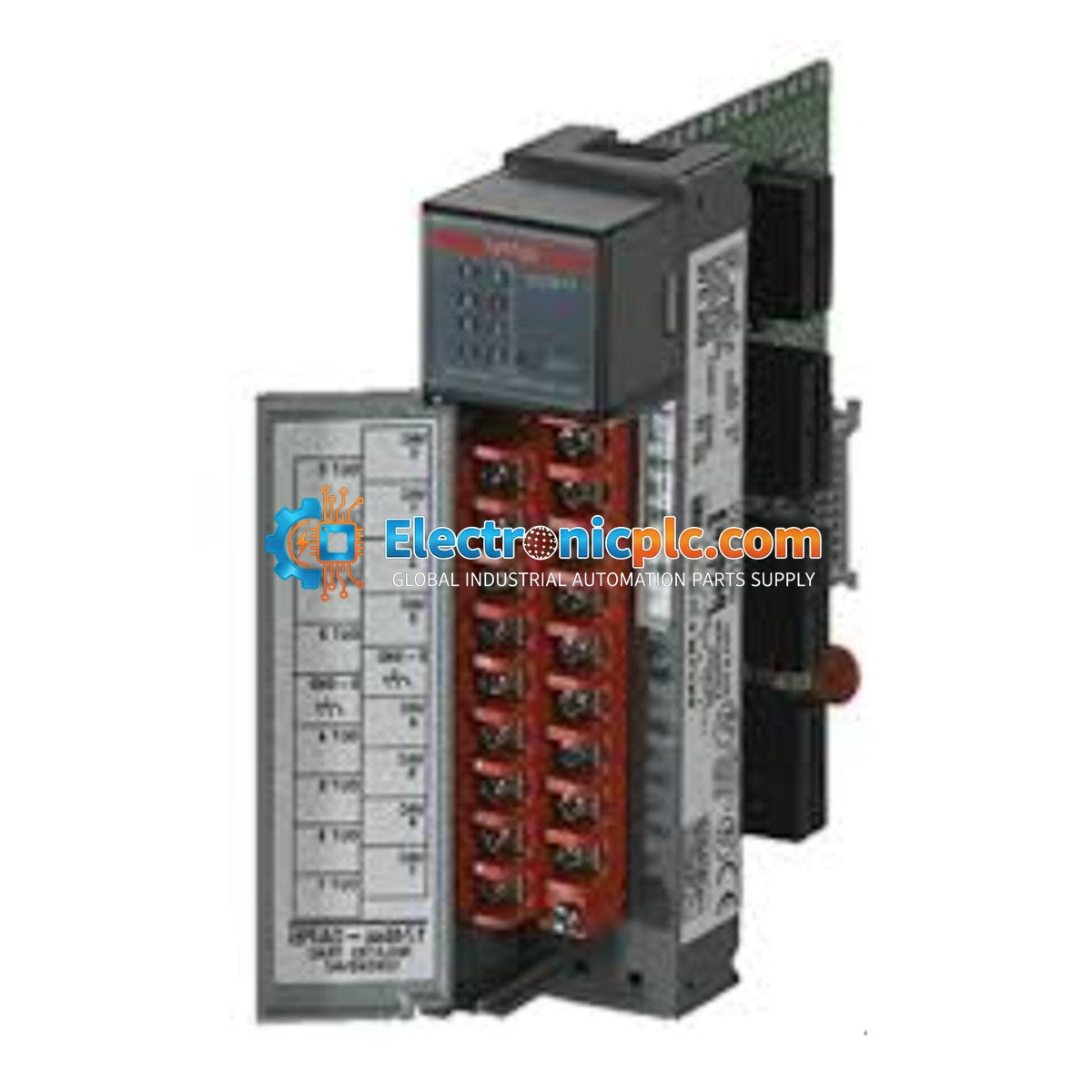

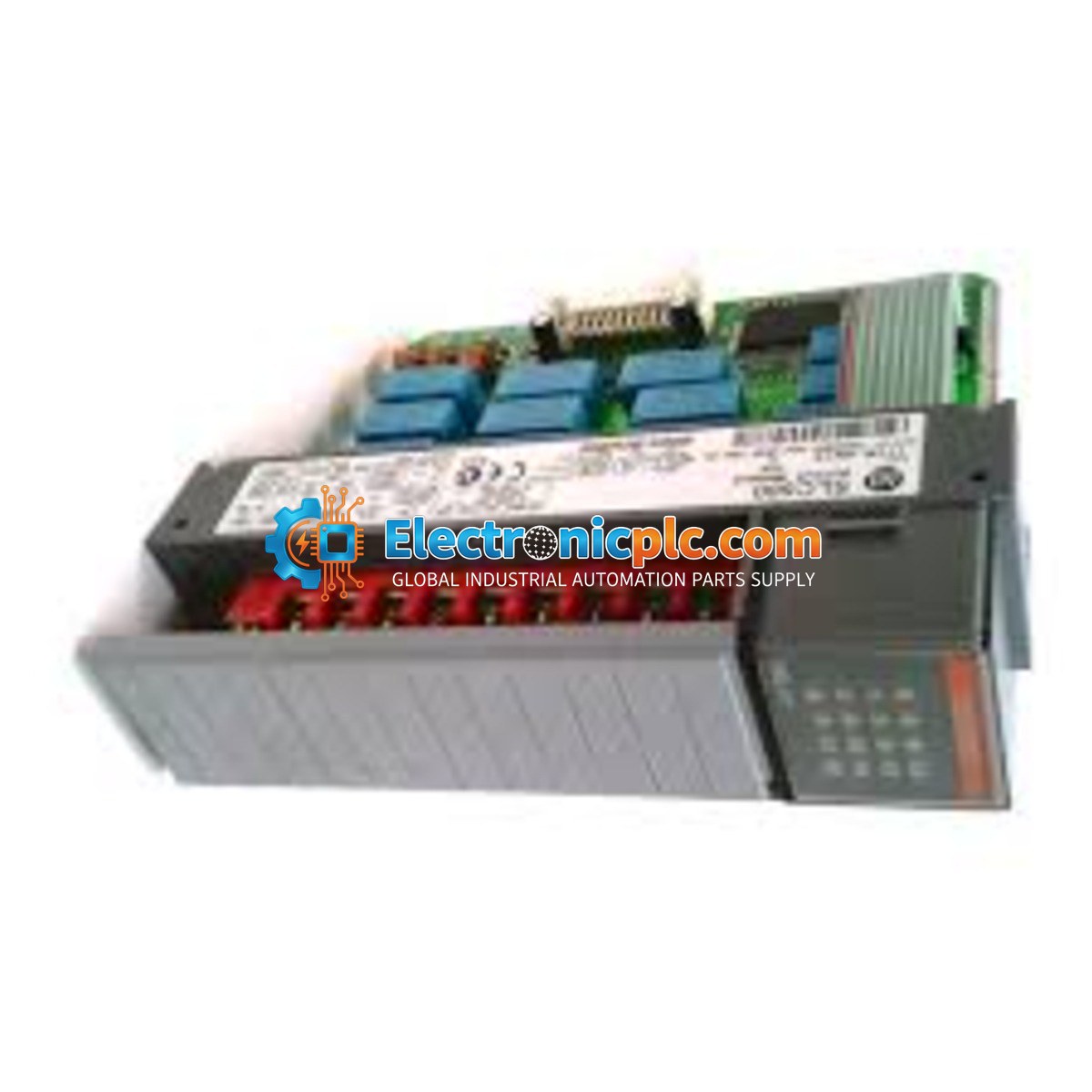

The Allen-Bradley 1746-IA8 is a high-density digital input module designed for use within the SLC 500 programmable controller system. This module provides 8 input channels, specifically engineered to interface with 100/120V AC field devices. It serves as a critical component for monitoring AC-powered sensors, limit switches, and pushbuttons, converting field-level AC signals into logic-level signals compatible with the SLC 500 processor.

Features

• 8-channel digital input configuration.
• Designed for 100/120V AC input voltage ranges.
• Compatible with standard SLC 500 I/O chassis.
• Optical isolation between field-side and logic-side circuitry to protect the controller from electrical noise and transients.
• Status indicators for each channel to facilitate rapid troubleshooting and diagnostics.

Technical Specifications

Installation Guidelines

• Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical shock or damage.
• Align the module carefully with the chassis backplane connector and slide it into the desired slot until the locking tabs engage.
• Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in industrial environments.
• Ensure all field wiring is properly terminated to the removable terminal block and that the terminal block is securely seated on the module.
• Maintain adequate clearance around the module to ensure proper airflow and cooling within the control cabinet.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal components.

FAQ

Is the 1746-IA8 still supported by the manufacturer?

The 1746-IA8 was officially discontinued by Allen-Bradley on August 19, 2018. While it is no longer in active production, it remains widely available through secondary market channels for maintenance and legacy system support.

Can I use this module with any SLC 500 processor?

Yes, the 1746-IA8 is designed to be compatible with standard SLC 500 I/O chassis and can be used with any SLC 500 processor that supports the 1746 I/O platform, provided the system power supply has sufficient capacity for the module's current draw.
