Description

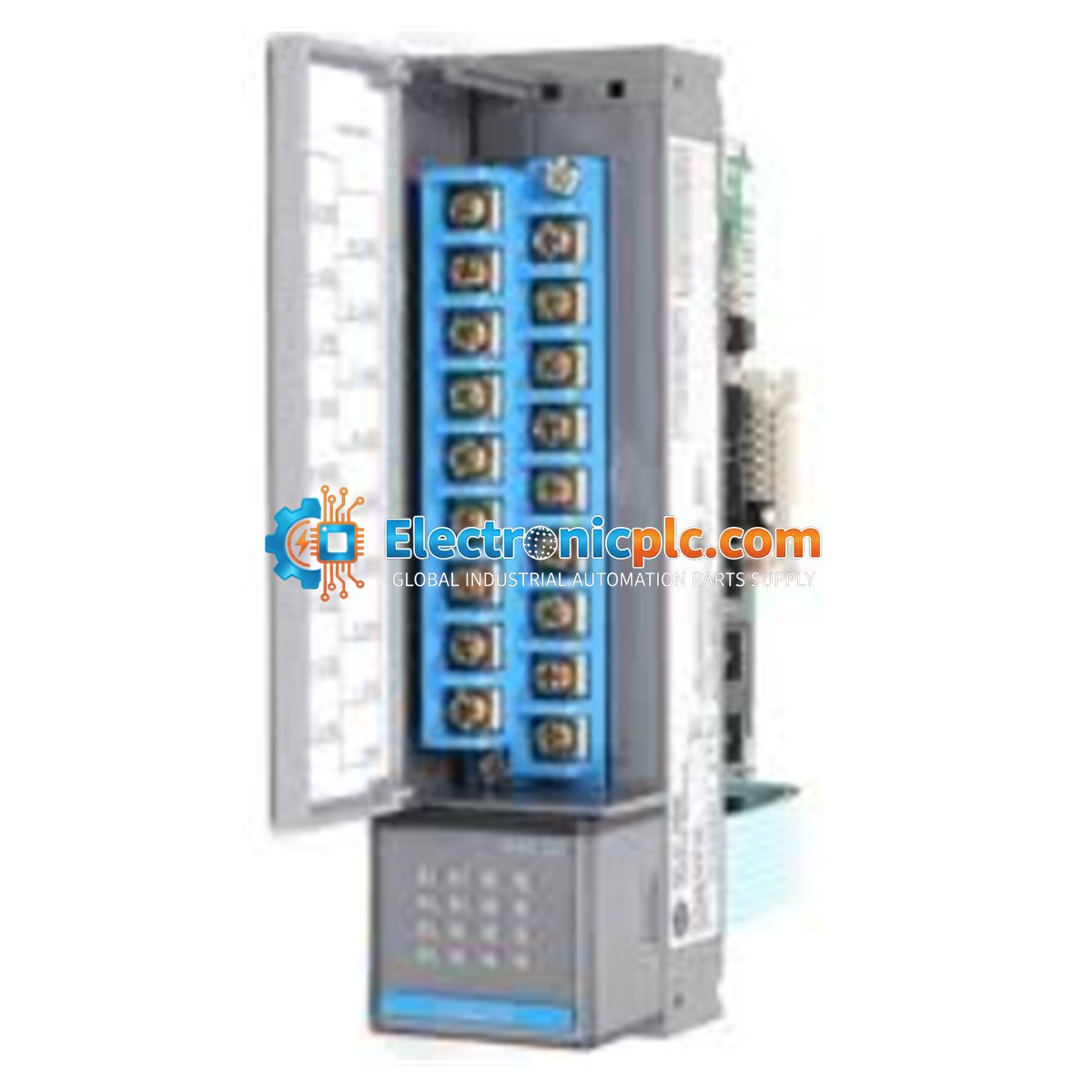

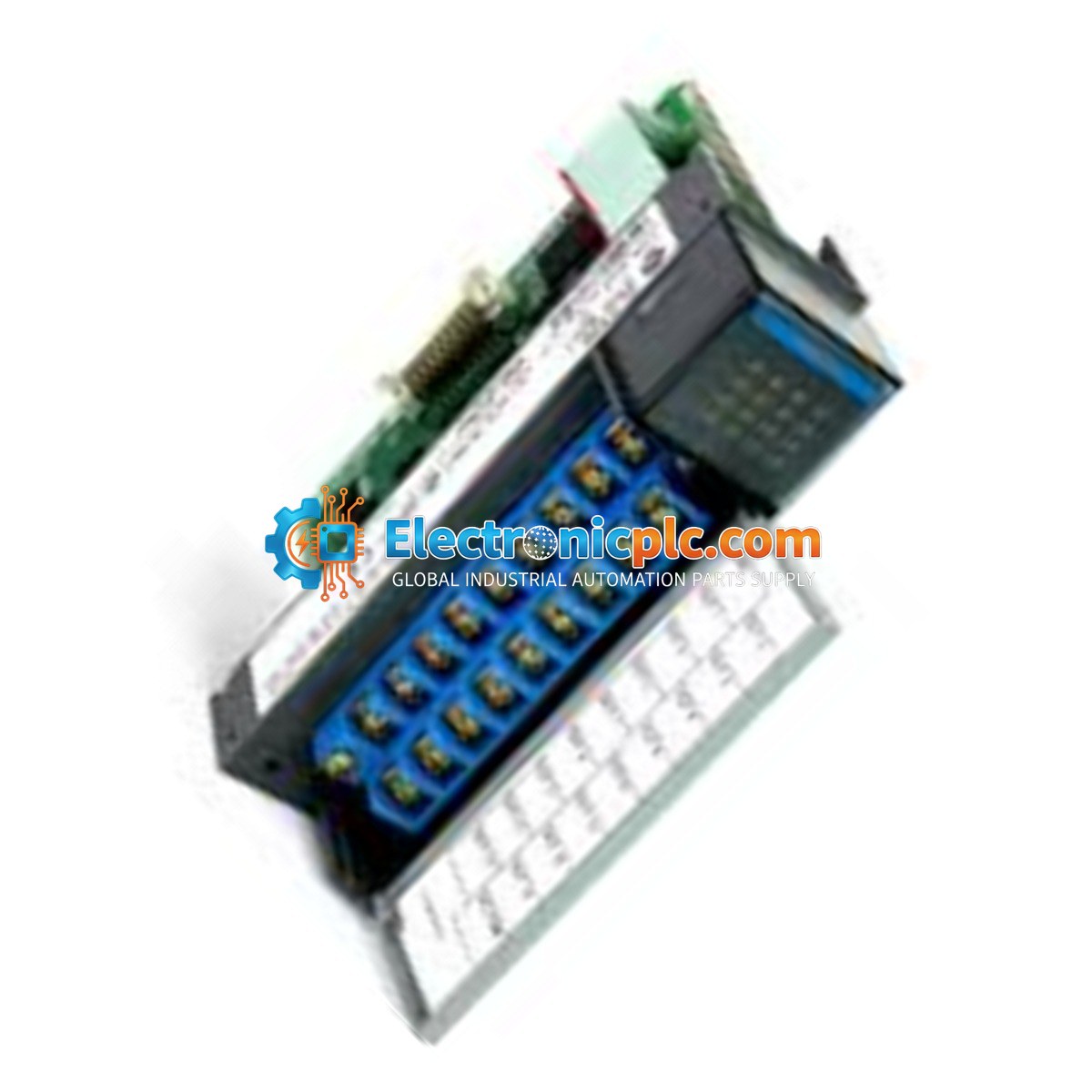

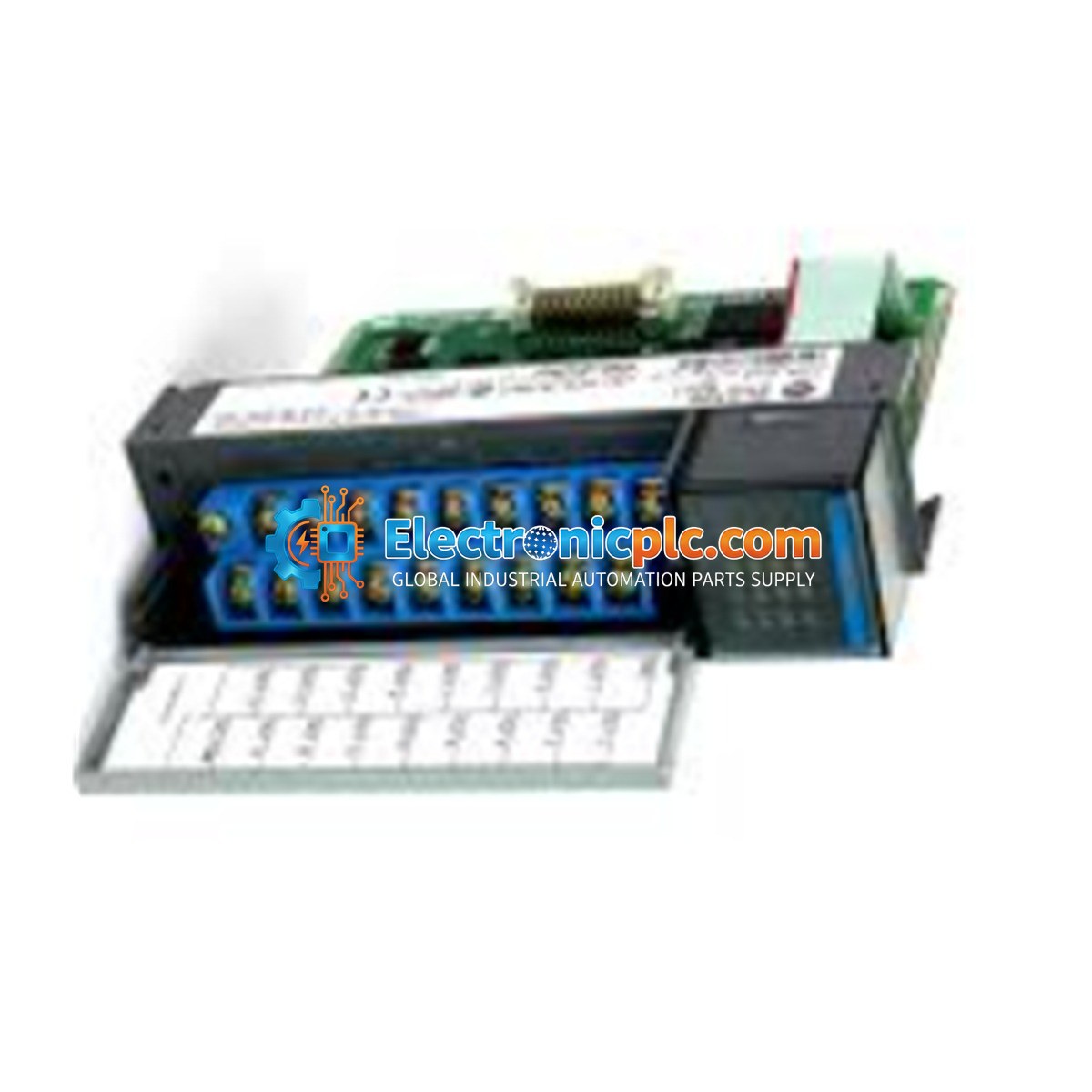

The Allen-Bradley 1746-OV32 is a 32-point digital DC output module designed for use with the SLC 500 programmable controller system. As a current-sinking output module, it provides reliable switching for various industrial control applications. This module is engineered to handle a wide range of DC voltages, making it a versatile component for managing field devices such as solenoids, relays, and indicators within an automated control environment.

Features

• 32-point digital output density for high-capacity I/O requirements.
• Current-sinking configuration for standard DC load compatibility.
• Wide operating voltage range from 5 to 50 VDC.
• Optimized for seamless integration into the SLC 500 chassis backplane.
• Compact modular design for efficient panel space utilization.

Technical Specifications

Installation Guidelines

• Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
• Verify that the module is fully seated in the chassis slot and secured with the provided mounting screws to ensure proper backplane connection.
• Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
• Maintain proper clearance around the module to allow for adequate ventilation and cooling.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the 1746-OV32?

The 1746-OV32 is a digital output module for the SLC 500 platform, used to control external DC-powered devices by sinking current to the common return.

Is this module compatible with all SLC 500 processors?

Yes, the 1746-OV32 is designed for the standard SLC 500 I/O chassis and is compatible with the SLC 500 processor family, provided the power supply can support the total current draw of the system.

What does current-sinking mean for this module?

Current-sinking means the module provides the path to common (DC negative) for the load. The load is typically connected between the positive voltage source and the module output terminal.
