Description

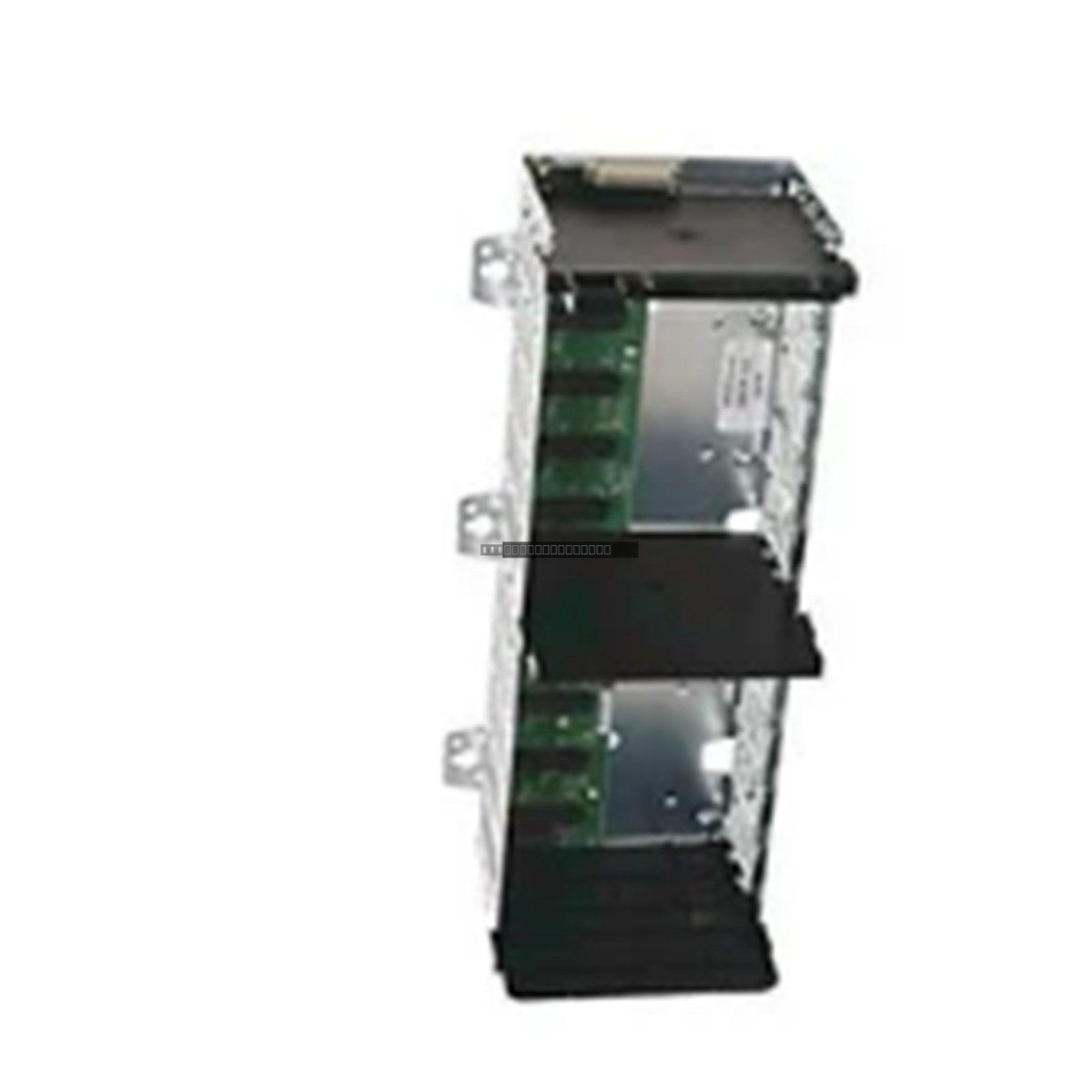

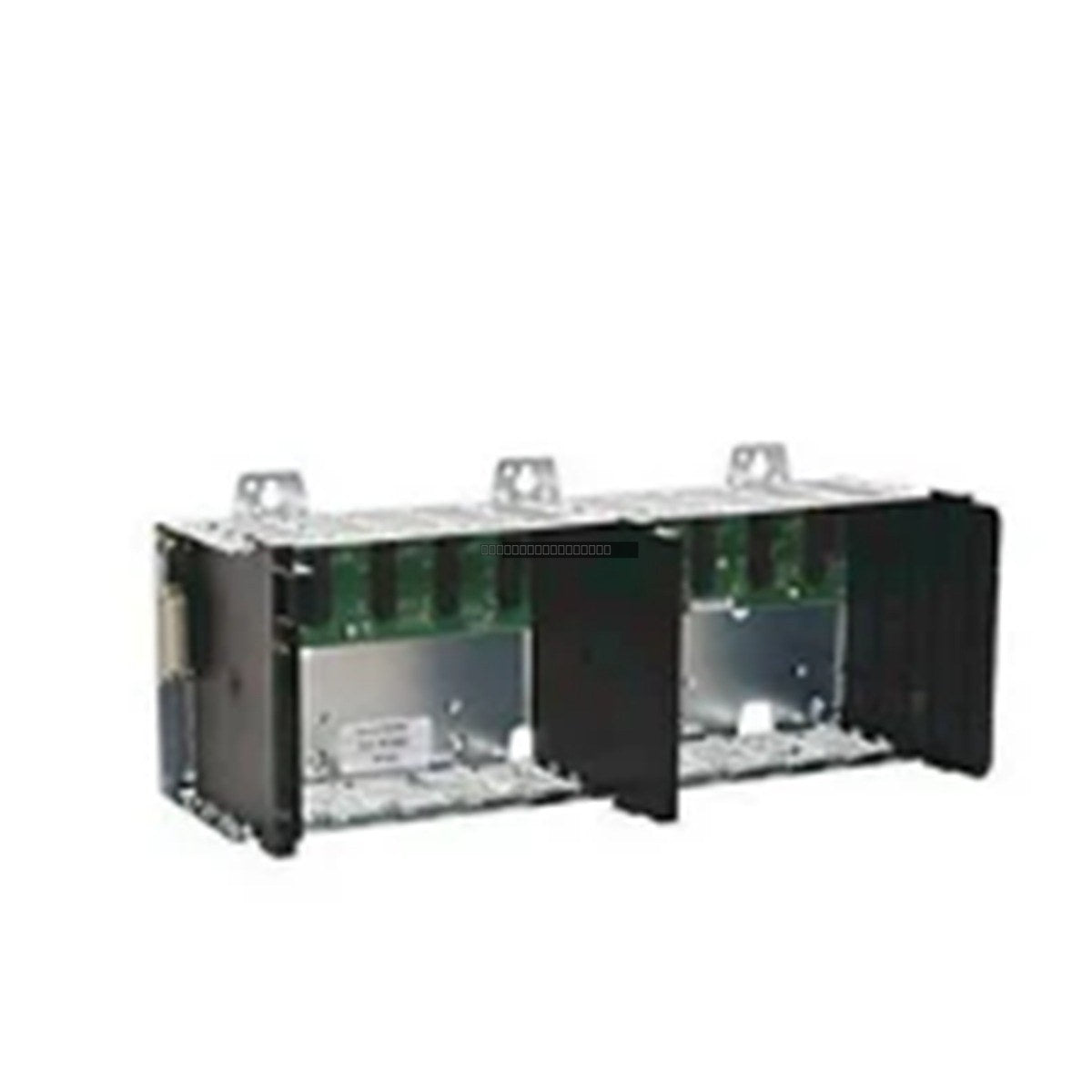

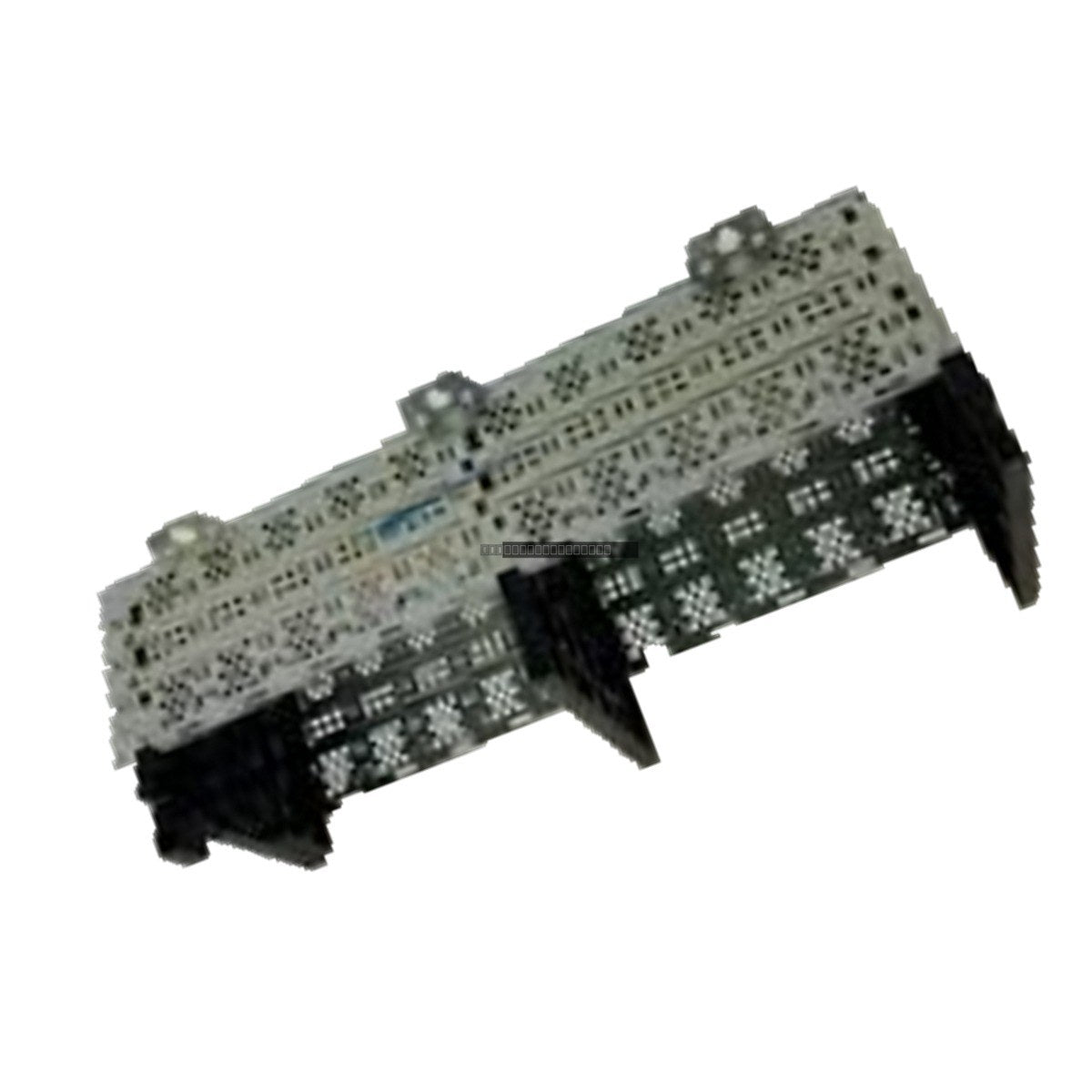

The Allen-Bradley 1756-A7 is a 7-slot chassis designed for the ControlLogix platform. This chassis provides the mechanical and electrical backplane necessary for housing and interconnecting ControlLogix modules, including controllers, communication interfaces, and I/O modules. It is engineered for industrial environments, ensuring reliable communication and power distribution across the backplane.

Features

• Supports up to 7 ControlLogix modules in a single rack assembly.
• Robust mechanical design for panel mounting in industrial control cabinets.
• Optimized for high-speed data transfer between modules via the ControlLogix backplane.
• Integrated power distribution to support various module power requirements.

Technical Specifications

Installation Guidelines

• Ensure the chassis is mounted on a flat, rigid surface within a suitable industrial enclosure.
• Maintain adequate clearance around the chassis to allow for proper airflow and cooling, as the maximum operating temperature is 60 degC.
• Verify that the chassis is properly grounded to the enclosure backplane to minimize electromagnetic interference (EMI).
• Power down the system before inserting or removing any ControlLogix modules to prevent electrical damage to the backplane connectors.
• Ensure all modules are fully seated and secured with their respective mounting screws to maintain reliable backplane contact.

FAQ

Can I use this chassis with any ControlLogix module?
Yes, the 1756-A7 is compatible with all standard ControlLogix series modules that fit the 1756 form factor.

Does this chassis include a power supply?
No, the 1756-A7 is a passive backplane chassis. A separate ControlLogix power supply module must be installed to provide power to the backplane.
