Description

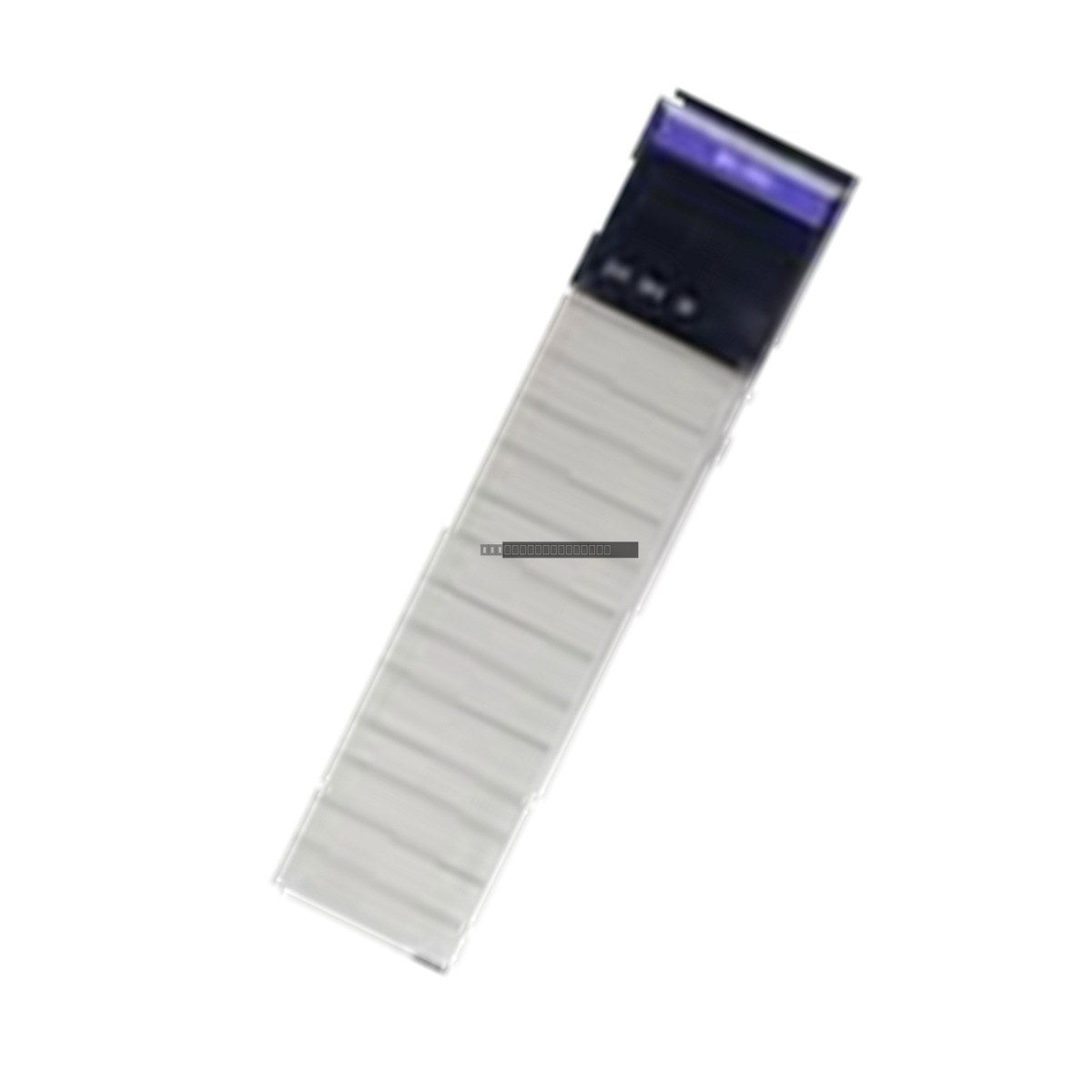

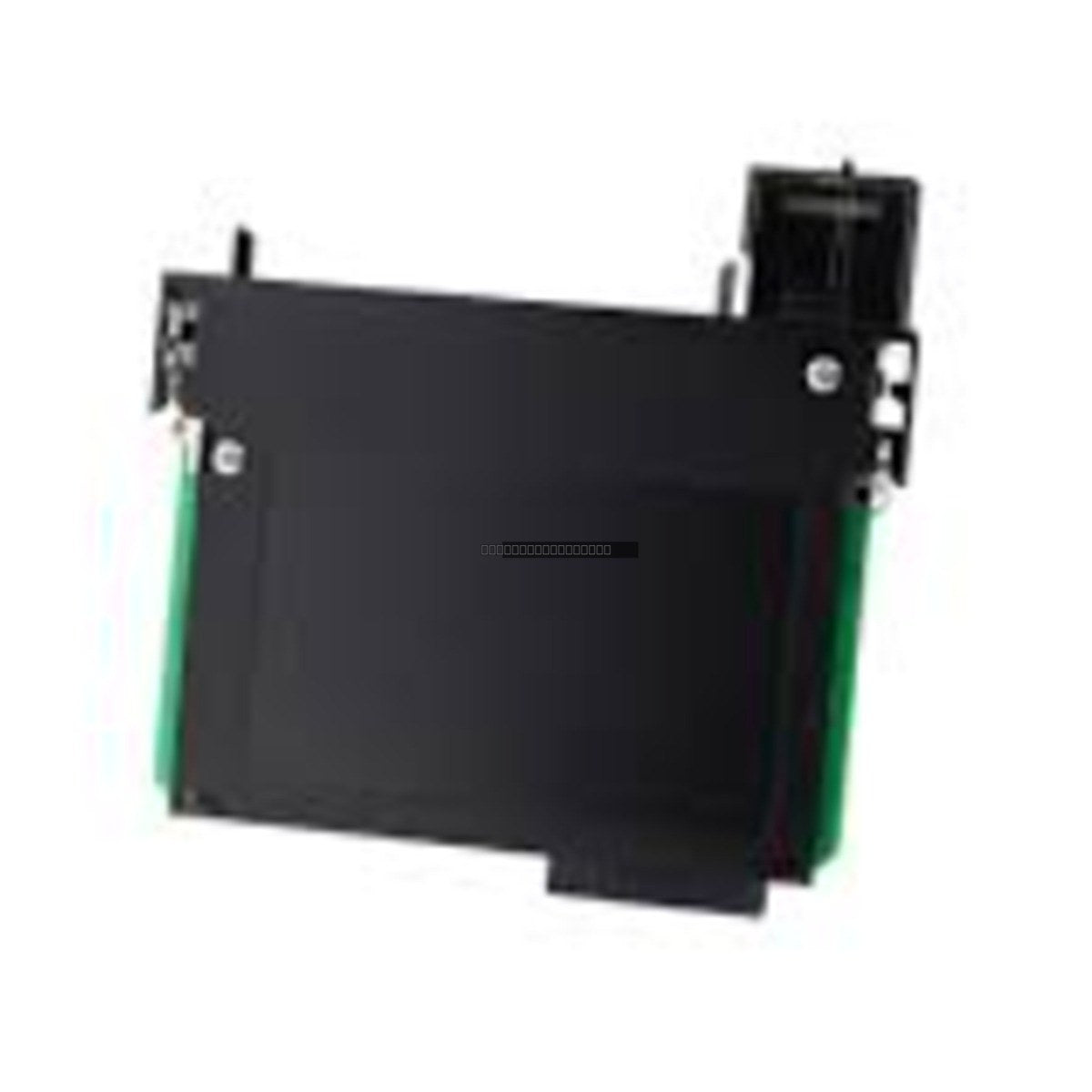

The Allen-Bradley 1756-DNB/E (Series E) is a high-performance DeviceNet scanner module designed for the ControlLogix automation platform. This module serves as a robust communications gateway, facilitating seamless data exchange between the ControlLogix controller and distributed field devices on a DeviceNet network. As a Series E revision, it offers improved processing capabilities and firmware reliability, supporting up to 64 nodes per scanner. It is widely utilized in industrial environments for managing complex I/O, device diagnostics, and network-wide data mapping.

Features

• Supports up to 64 DeviceNet nodes per module.
• Integrated USB port for local configuration and diagnostic access without interrupting backplane communication.
• Adaptive auto-baud rate detection for optimized network performance based on cable length.
• Supports standard DeviceNet trunk-line and drop-line topologies.
• Compact single-slot design for standard ControlLogix chassis integration.

Applications

This module is engineered for demanding industrial automation tasks, including automated assembly lines, material handling systems, and large-scale process control plants where distributed I/O management is critical.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• The module occupies one standard slot in a ControlLogix chassis.
• Use shielded twisted-pair cabling for DeviceNet connections to minimize EMI interference.
• Maintain proper grounding practices for the DeviceNet network to ensure signal integrity.
• Ensure adequate airflow within the cabinet to maintain operating temperatures within specified limits.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal components.

FAQ

Q: Does the 1756-DNB/E support hot-swapping?
A: Yes, the ControlLogix platform supports Removal and Insertion Under Power (RIUP) for this module, provided the chassis power supply is rated for the load and safety protocols are followed.

Q: Can I use the USB port while the module is active on the network?
A: Yes, the onboard USB port is designed for local configuration and diagnostics and operates independently of the backplane data transfer, allowing for maintenance without stopping the process.
