Description

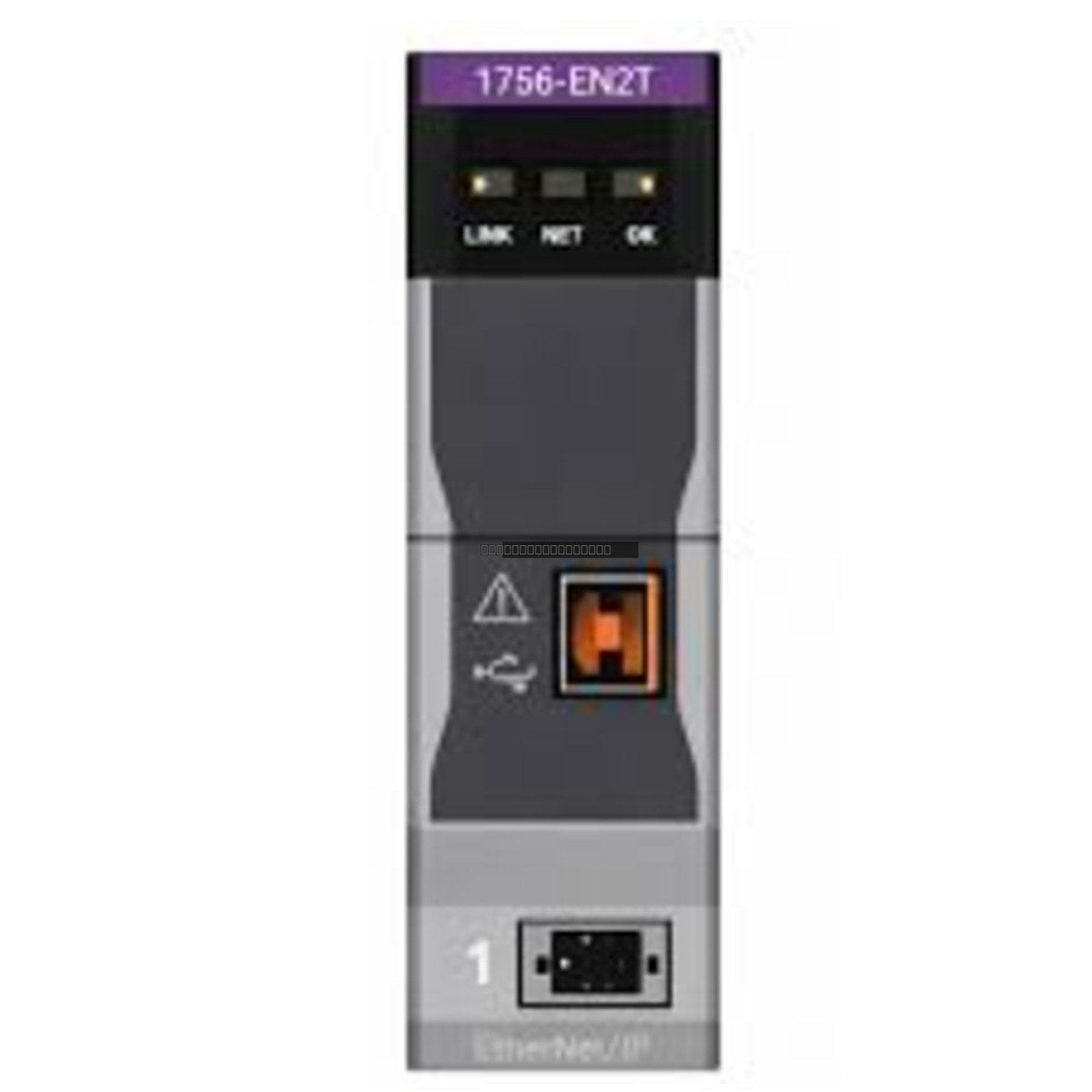

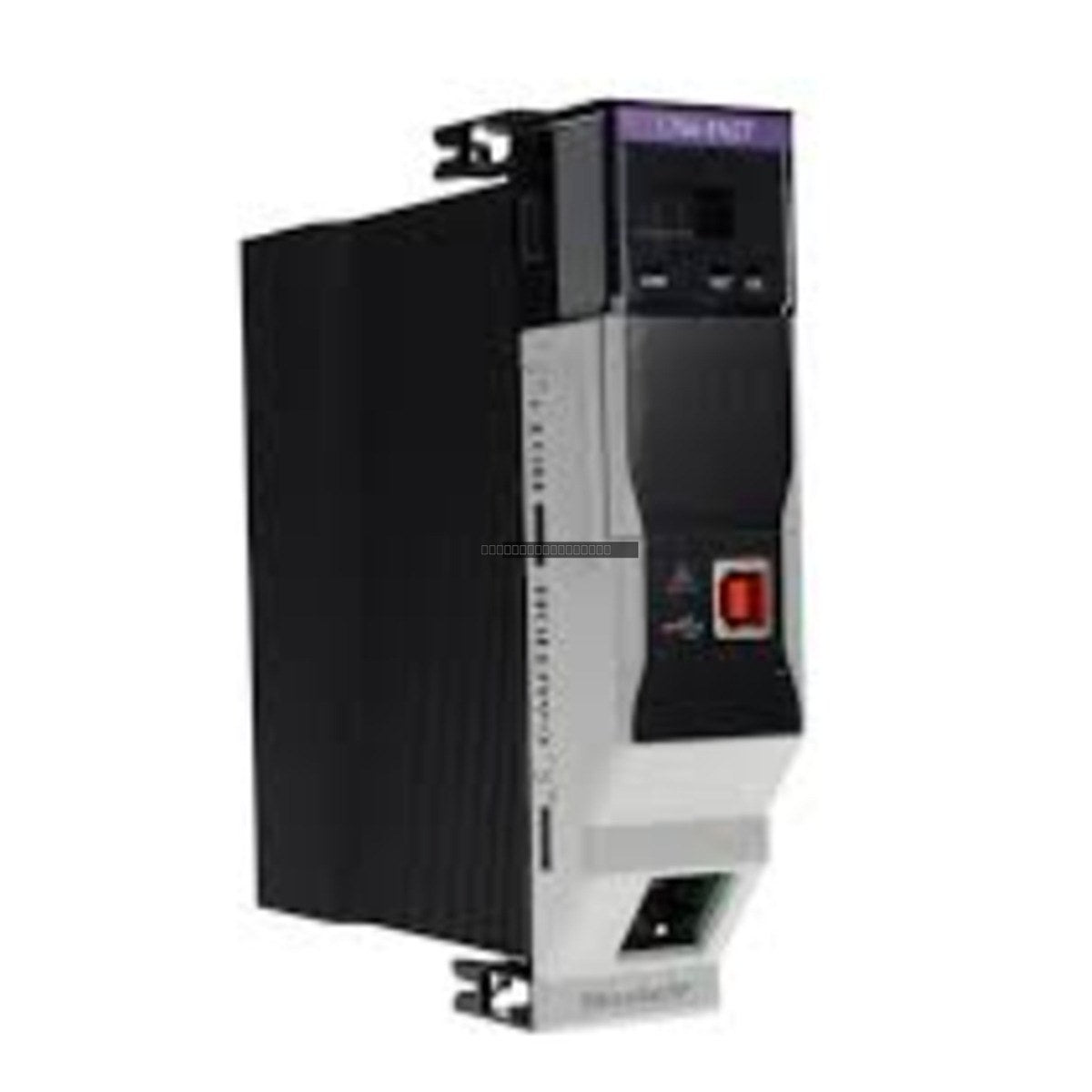

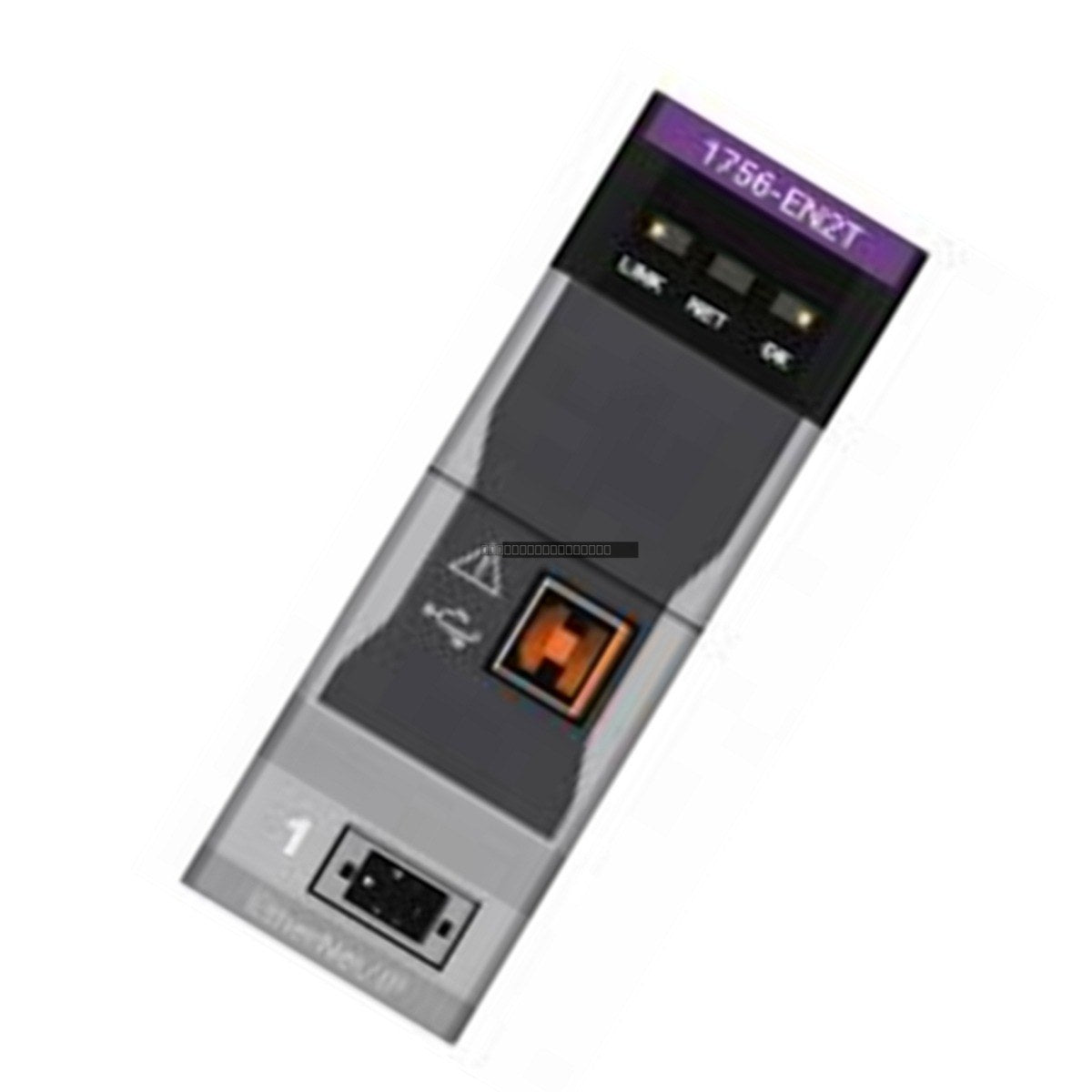

The Allen-Bradley 1756-EN2TSC is a high-performance communication module designed for the ControlLogix platform. This module serves as a bridge for EtherNet/IP networks, providing secure communication capabilities through integrated VPN functionality. Engineered for demanding industrial environments, the 1756-EN2TSC enables reliable data exchange and network connectivity for complex automation control systems.

Features

• Single-port interface for streamlined network integration.
• Supports up to 128 TCP/IP connections for high-density communication requirements.
• Integrated VPN security features to protect critical control system traffic.
• Compatible with standard 10/100 Mbps Ethernet network speeds.
• Seamless integration within the Allen-Bradley ControlLogix chassis architecture.

Applications

This module is typically deployed in industrial automation systems requiring secure remote access or segmented network communication. It is commonly used in manufacturing, power generation, and process control facilities where EtherNet/IP connectivity must be balanced with robust security protocols to prevent unauthorized access to the control network.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the communication module.
• Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
• Seat the module firmly into the chassis slot and tighten the mounting screws to ensure proper grounding and mechanical stability.
• Route Ethernet cabling away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Verify that the firmware version is compatible with your existing ControlLogix controller configuration before deployment.

FAQ

What is the primary function of the 1756-EN2TSC?

The 1756-EN2TSC is a communication bridge that facilitates secure EtherNet/IP connectivity for ControlLogix systems, specifically offering VPN capabilities for enhanced network security.

How many connections does this module support?

This module is capable of supporting up to 128 TCP/IP connections, making it suitable for systems with high communication traffic demands.
