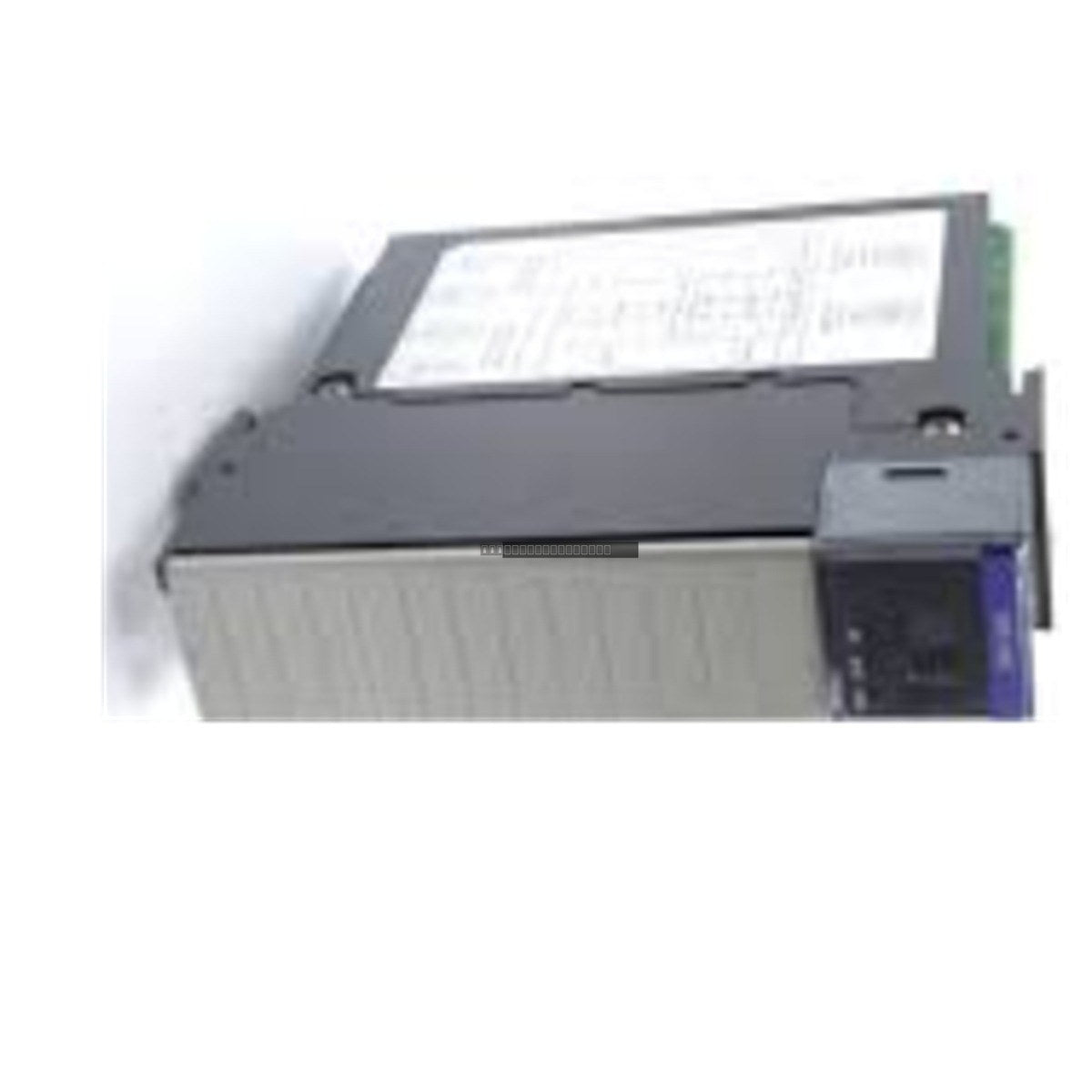

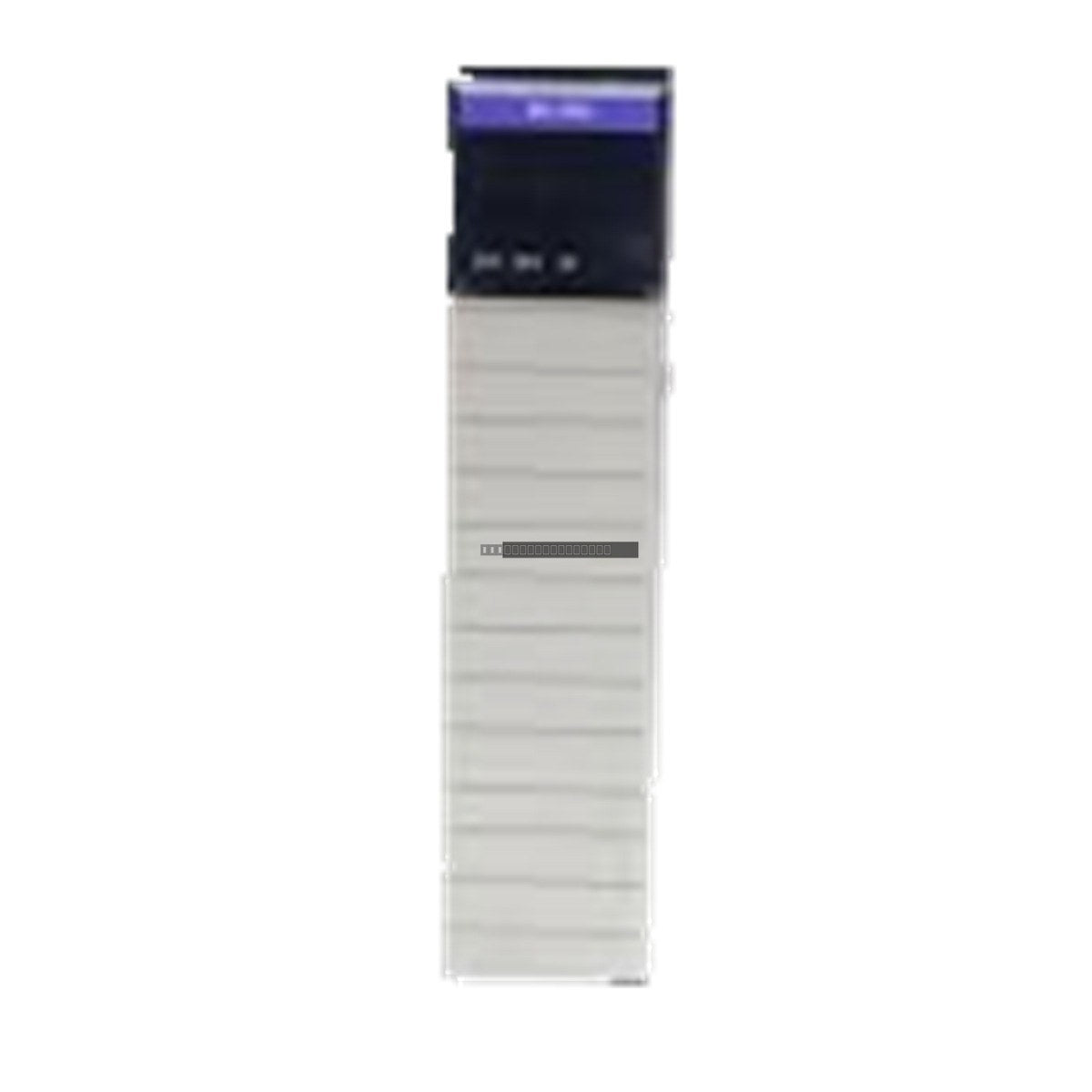

The Allen-Bradley 1756-ENBT is a high-performance communication bridge module designed for the ControlLogix platform. This module facilitates seamless EtherNet/IP connectivity, enabling reliable data exchange and control across industrial automation networks at speeds of 10/100 Mbps.

Features

• Supports EtherNet/IP communication protocol for distributed control architectures.
• Optimized for integration within the ControlLogix chassis environment.
• Supports up to 128 Logix connections for complex network topologies.
• Dual-speed capability (10/100 Mbps) for flexible network infrastructure requirements.
• Integrated diagnostic capabilities for status monitoring and network troubleshooting.

Applications

This module is engineered for industrial environments requiring robust, real-time communication between PLC systems, HMI interfaces, and remote I/O devices. It is widely utilized in manufacturing, process control, and material handling systems where high-speed Ethernet connectivity is essential for system coordination.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Slide the module into an available slot and secure it using the integrated latching mechanism.
• Use high-quality, shielded Ethernet cabling to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain proper ventilation in the control cabinet to prevent overheating; ensure sufficient clearance around the module.
• Verify that the module is properly seated and the backplane connection is secure before restoring power.

FAQ

What is the primary function of the 1756-ENBT?
It acts as a communication bridge, allowing the ControlLogix system to interface with other devices over an EtherNet/IP network.

Does this module require external power?
The module draws its operating power directly from the ControlLogix backplane. It consumes 700 mA at 5.1V DC and 3 mA at 24V DC.
