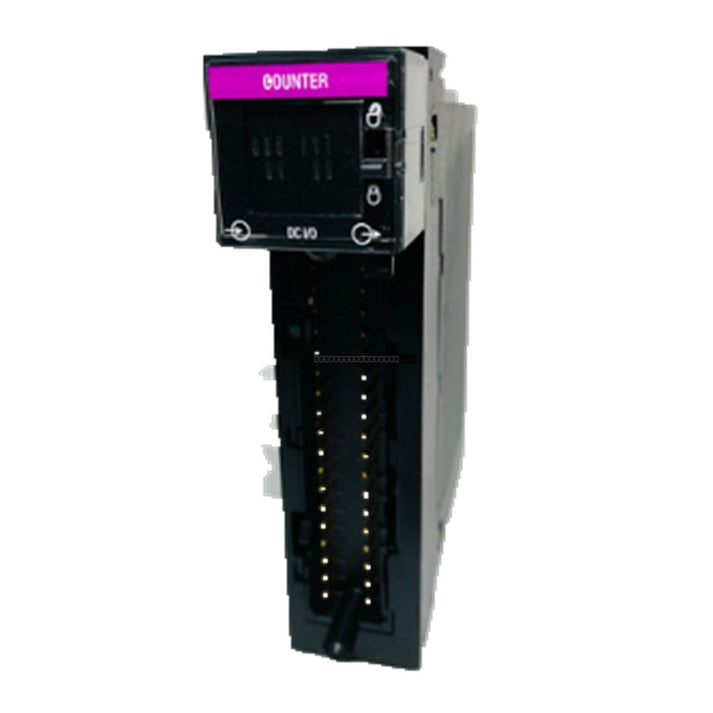

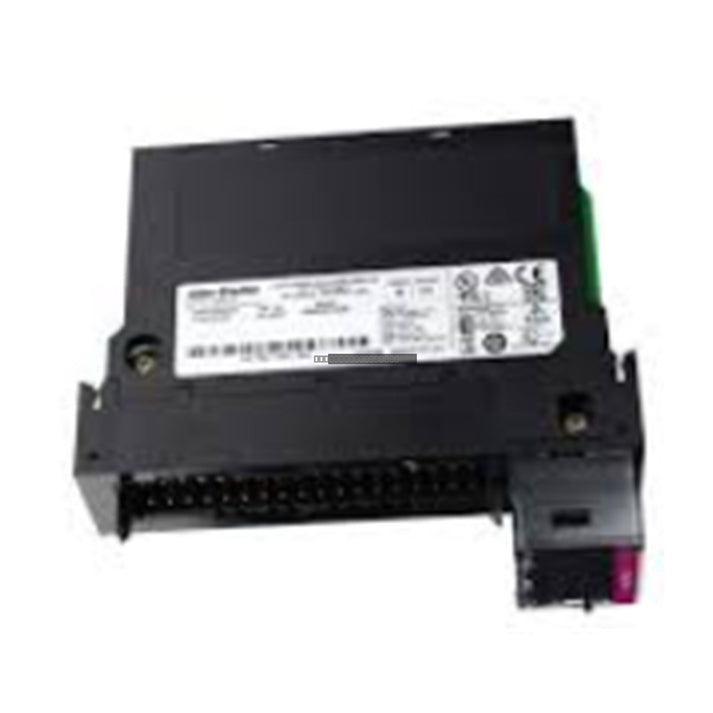

The Allen-Bradley 1756-HSC is a high-speed counter module designed for the ControlLogix platform. This module provides precise counting and measurement capabilities, making it suitable for applications that require tracking high-frequency pulses from encoders, flow meters, or other pulse-generating field devices.

Features

• Supports 3 inputs per counter for flexible signal configuration.
• Includes 4-point outputs for direct control or signaling based on count thresholds.
• Compatible with standard ControlLogix chassis, allowing installation in any available slot.
• Wide count range up to 16,214,777 for extensive operational tracking.
• Compatible with 1756-TBCH and 1756-TBS6H removable terminal blocks for simplified wiring and maintenance.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-HSC module to prevent electrical damage.
• Verify that the module is fully seated in the chassis slot and the locking tabs are engaged.
• Use appropriate shielded cabling for high-speed input signals to minimize electromagnetic interference (EMI).
• Maintain proper ventilation in the control cabinet to stay within the module's maximum power dissipation limits.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What terminal blocks are compatible with this module?
The 1756-HSC is compatible with the 1756-TBCH and 1756-TBS6H removable terminal blocks.

Can this module be placed in any chassis slot?
Yes, the 1756-HSC is designed to be installed in any available slot within a ControlLogix chassis.

What is the maximum power dissipation for the 1756-HSC?
The maximum power dissipation is 5.6 Watts when operating at a temperature of 60 degC.
