Description

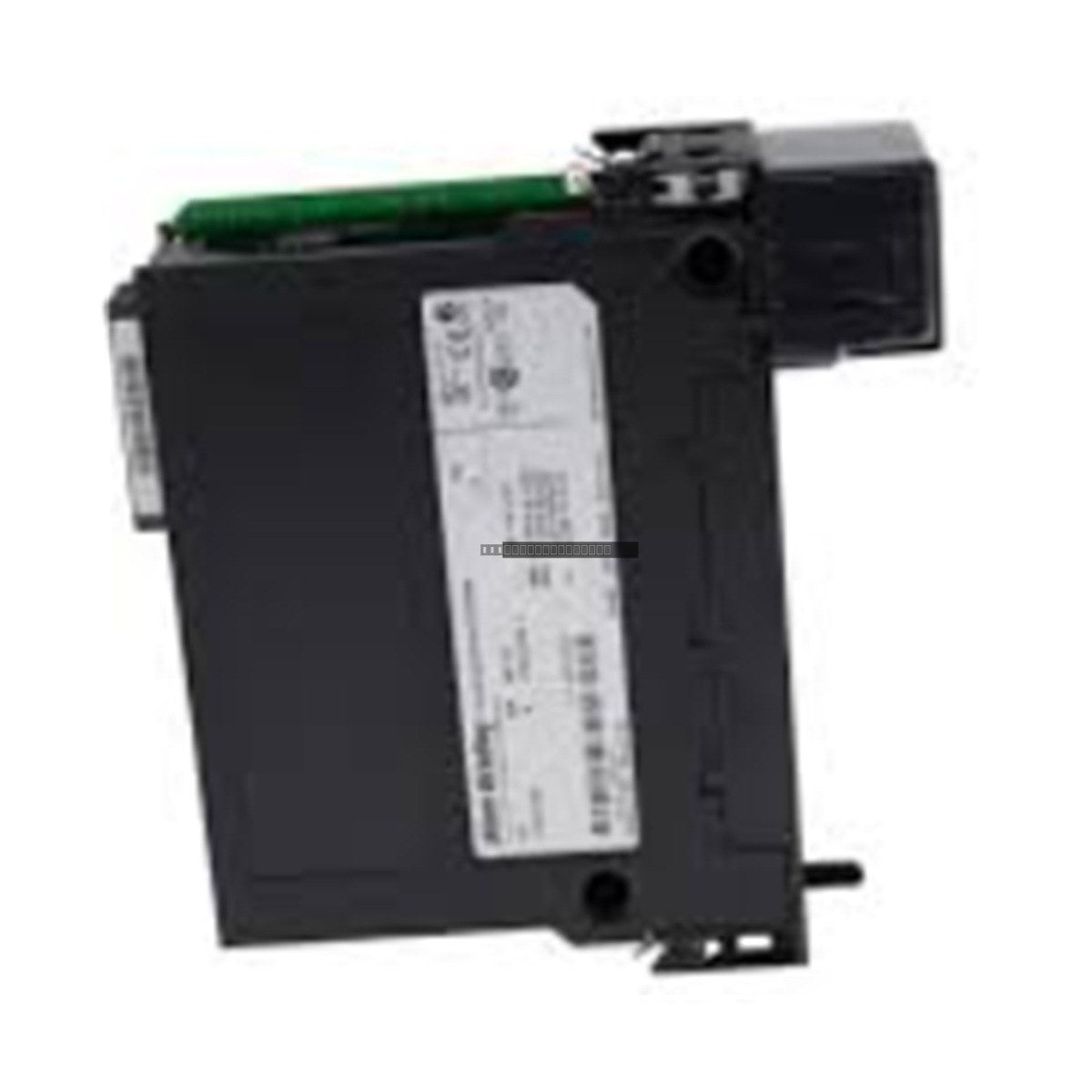

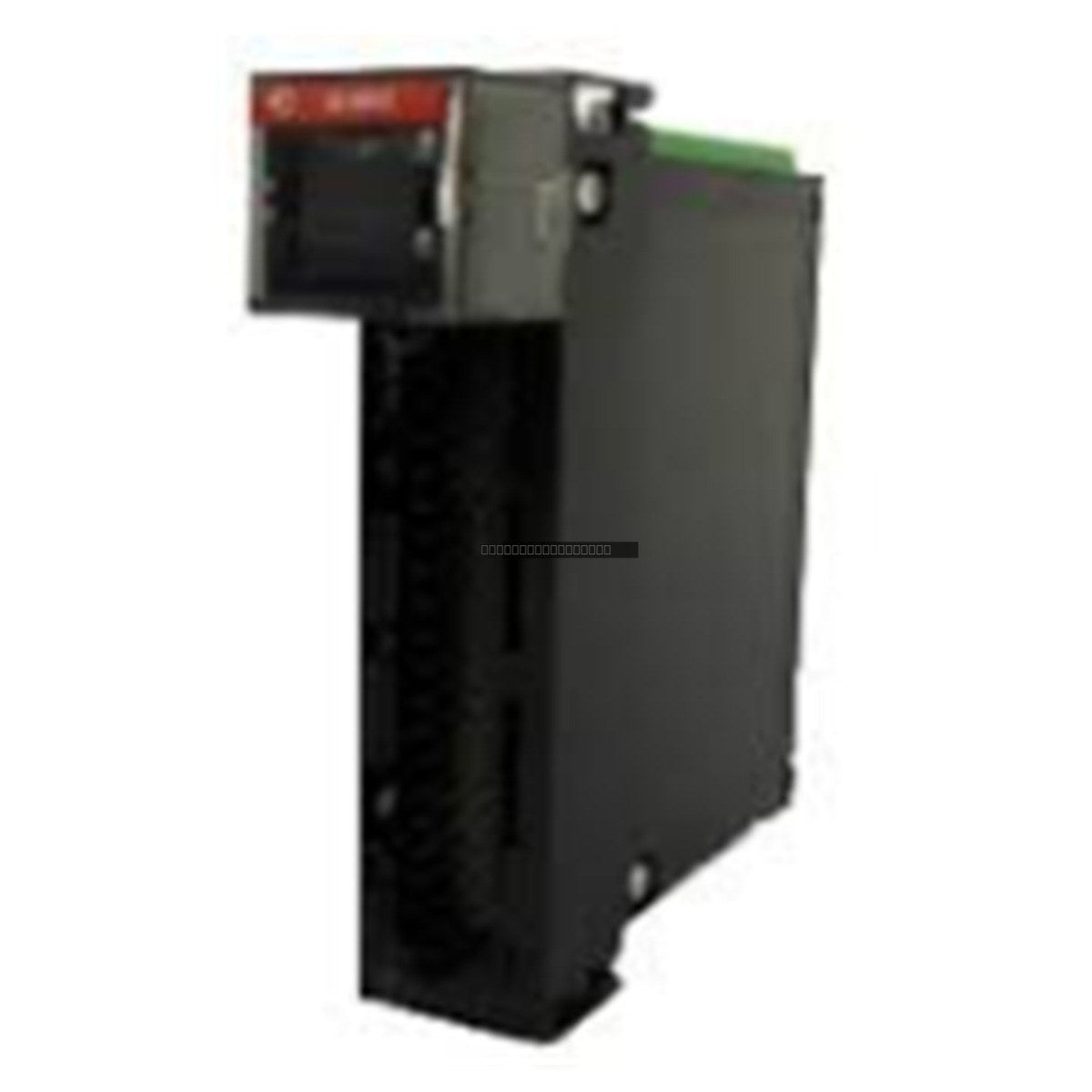

The Allen-Bradley 1756-IA32 is a high-density digital AC input module designed for the ControlLogix platform. This module provides 32 individual input points, facilitating the monitoring of 120V AC field signals within industrial automation systems. It is engineered for robust performance in demanding environments, offering programmable input filtering to manage signal noise and bounce effectively.

Features

• 32-point high-density input configuration for space-efficient cabinet design.
• Supports a nominal input voltage of 120V AC with an operating range of 74-132V AC.
• Programmable input delay times (9 or 18 ms) to optimize response to field signal transitions.
• Electronic module keying to prevent incorrect module insertion within the chassis.
• Optimized power dissipation and thermal management for high-temperature operation up to 60 degC.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before installing or removing the 1756-IA32 module to prevent electrical arcing or damage.
• Verify the module is fully seated in the chassis slot and the locking mechanism is engaged.
• Utilize shielded cabling for input signals to minimize electromagnetic interference (EMI) in industrial environments.
• Maintain adequate clearance around the chassis for proper ventilation and heat dissipation.
• Follow standard ESD (Electrostatic Discharge) prevention procedures when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 1756-IA32?

The 1756-IA32 is a discrete input module used to interface 120V AC field devices, such as limit switches or pushbuttons, with the ControlLogix controller backplane.

Can the input delay be adjusted?

Yes, the module features programmable input delay times of 9 or 18 milliseconds, allowing users to configure the filtering based on the specific requirements of the application.

Does this module require external power for the inputs?

Yes, the 1756-IA32 requires an external 120V AC source to power the field inputs; the backplane connection provides logic power only.
