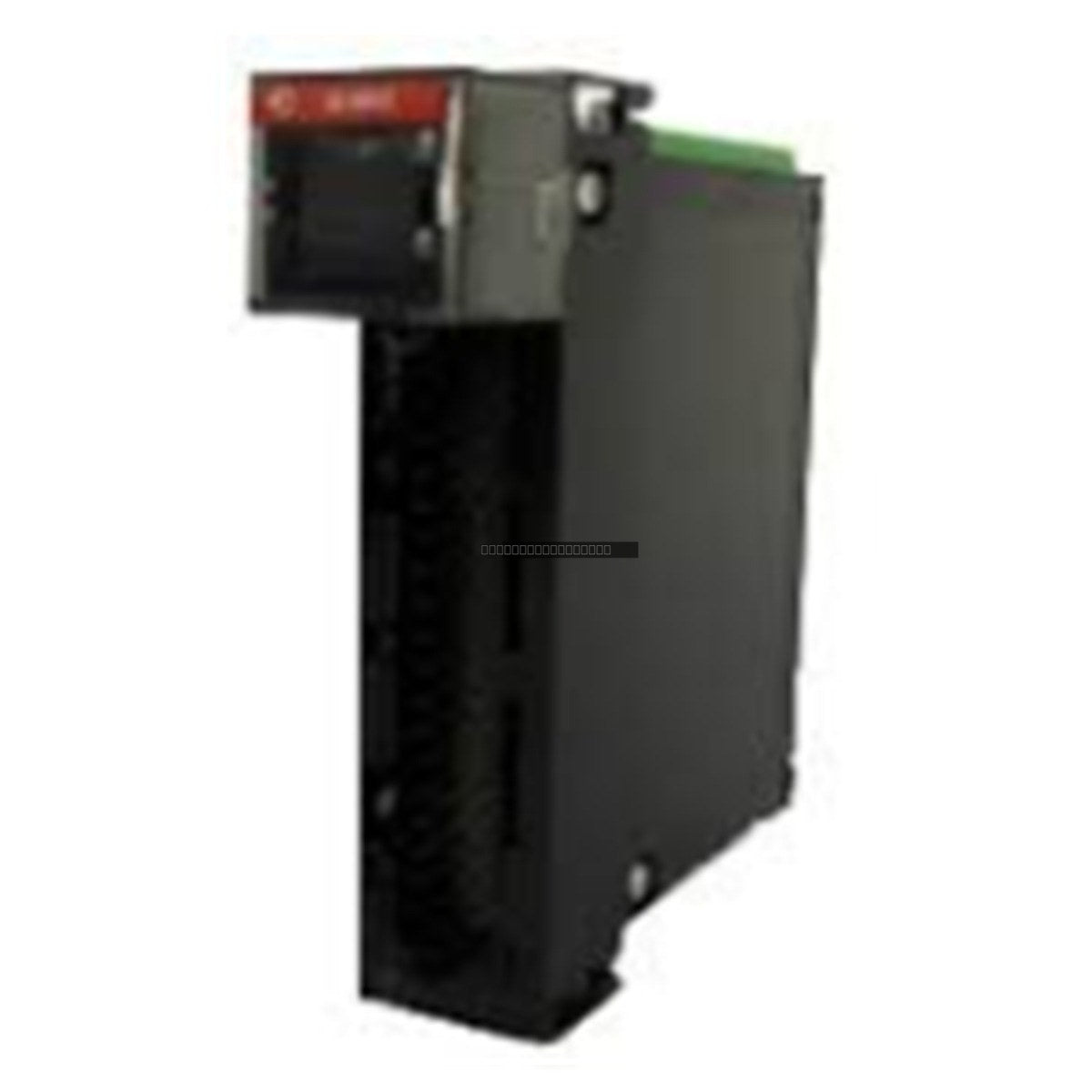

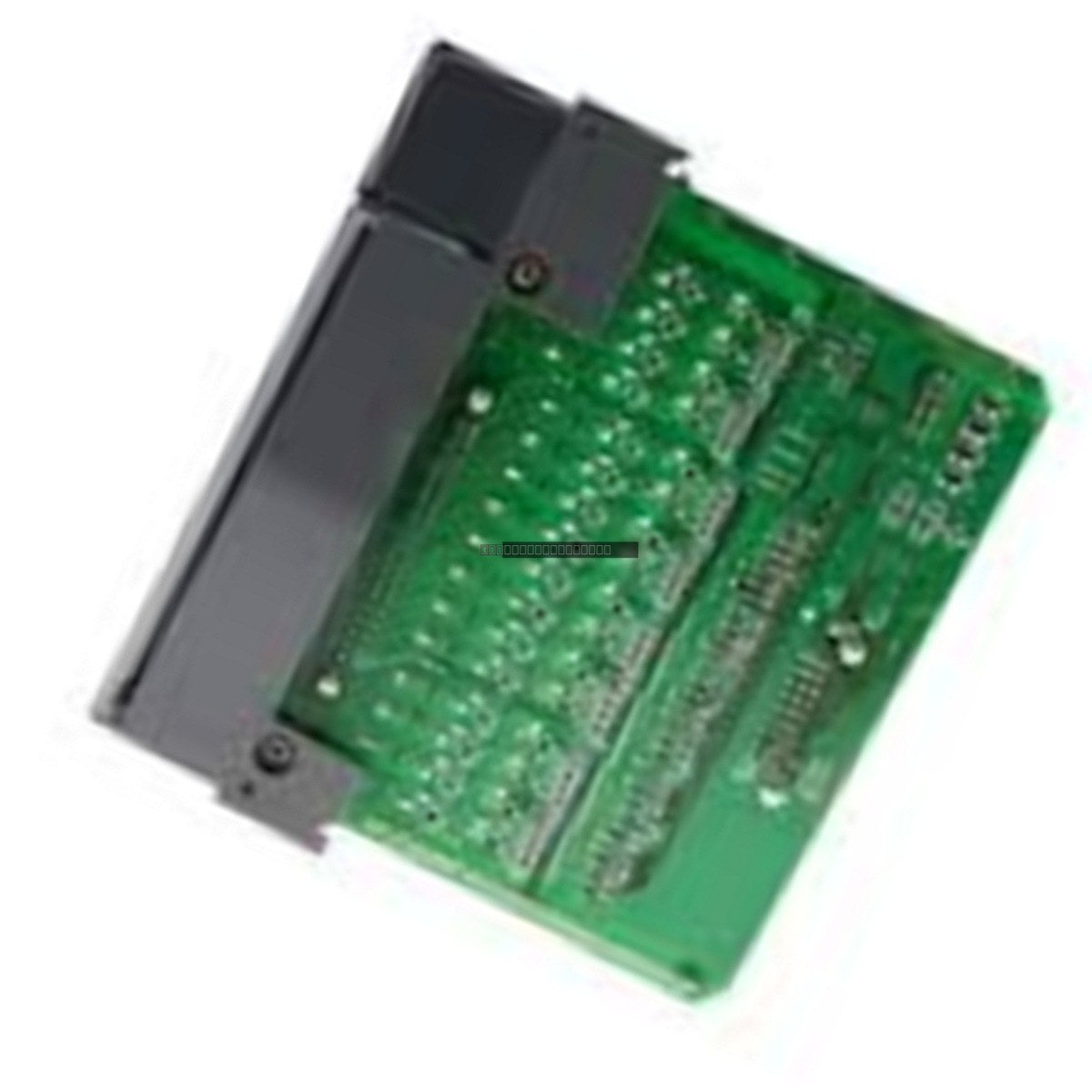

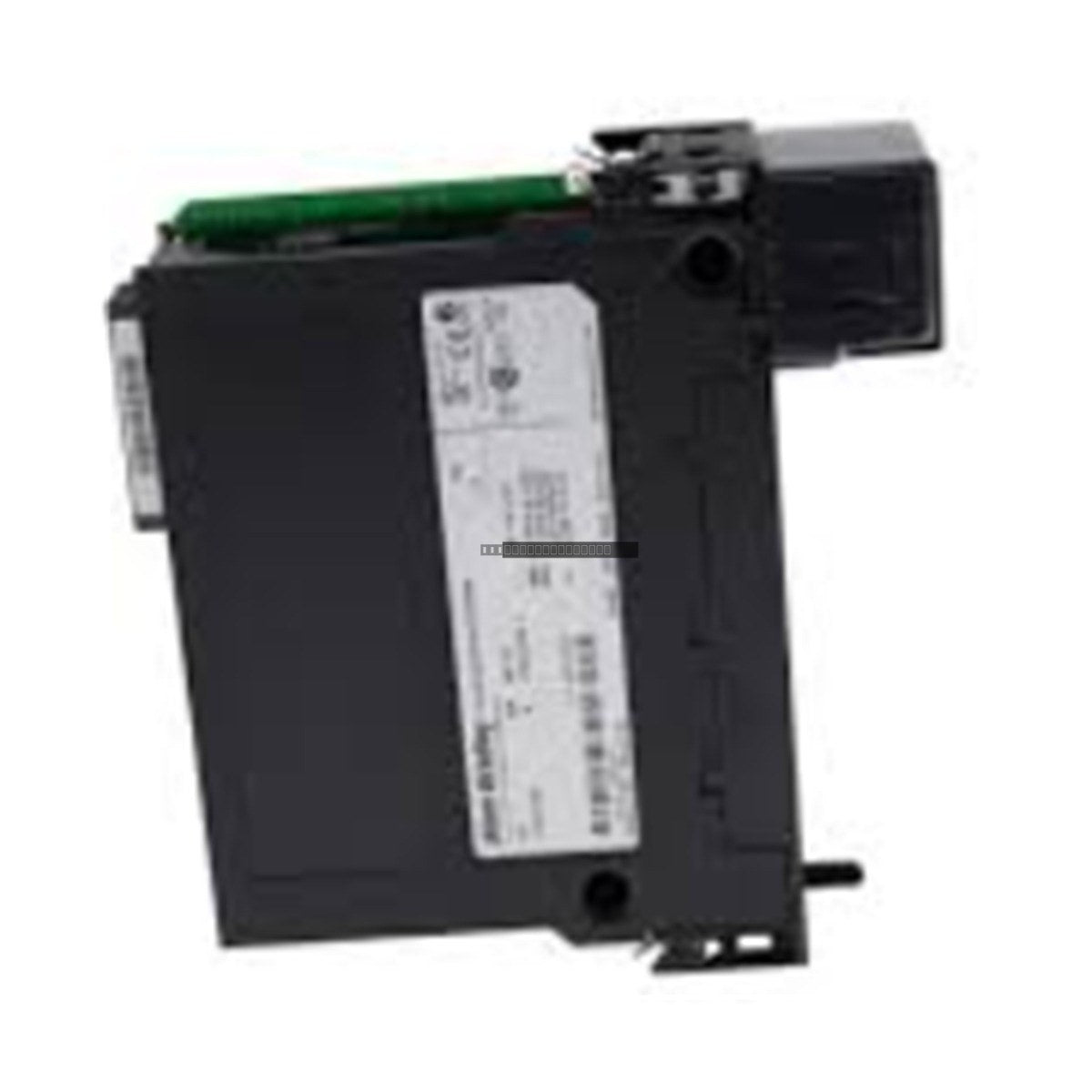

The Allen-Bradley 1756-IA8D is a high-performance diagnostic AC input module designed for integration within the ControlLogix platform. This module provides 8 diagnostic inputs, enabling advanced monitoring capabilities that allow for proactive fault detection and system maintenance in demanding industrial environments.

Features

• 8-point diagnostic AC input configuration
• 120V AC nominal input voltage for standard industrial control applications
• Programmable input delay times of 9 or 18 milliseconds to accommodate specific signal filtering requirements
• Enhanced diagnostic reporting for improved system uptime and troubleshooting
• Compatible with the standard ControlLogix backplane chassis

Applications

This diagnostic module is engineered for use in applications where input signal integrity and status monitoring are critical. It is commonly deployed in manufacturing lines, power generation control systems, and automated process control environments where diagnostic feedback helps reduce downtime by identifying field-side wiring or signal issues quickly.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module.
• Use appropriate ESD protection when handling the module to prevent damage to sensitive internal components.
• Verify that the module is fully seated in the chassis slot and that the locking tab is secure.
• Ensure that field wiring is routed away from high-voltage or high-EMI sources to maintain signal accuracy.
• Check that the input voltage levels strictly adhere to the 79-132V AC operating range to avoid module damage.

FAQ

What is the primary advantage of the 1756-IA8D over a standard input module?
The 1756-IA8D includes diagnostic functionality that allows the controller to detect specific fault conditions, such as open or short circuits, which standard modules cannot identify.

Can the input delay be adjusted?
Yes, the input delay is software-programmable to either 9 or 18 milliseconds, allowing you to tune the module to reject noise or accommodate slower signal transitions.
