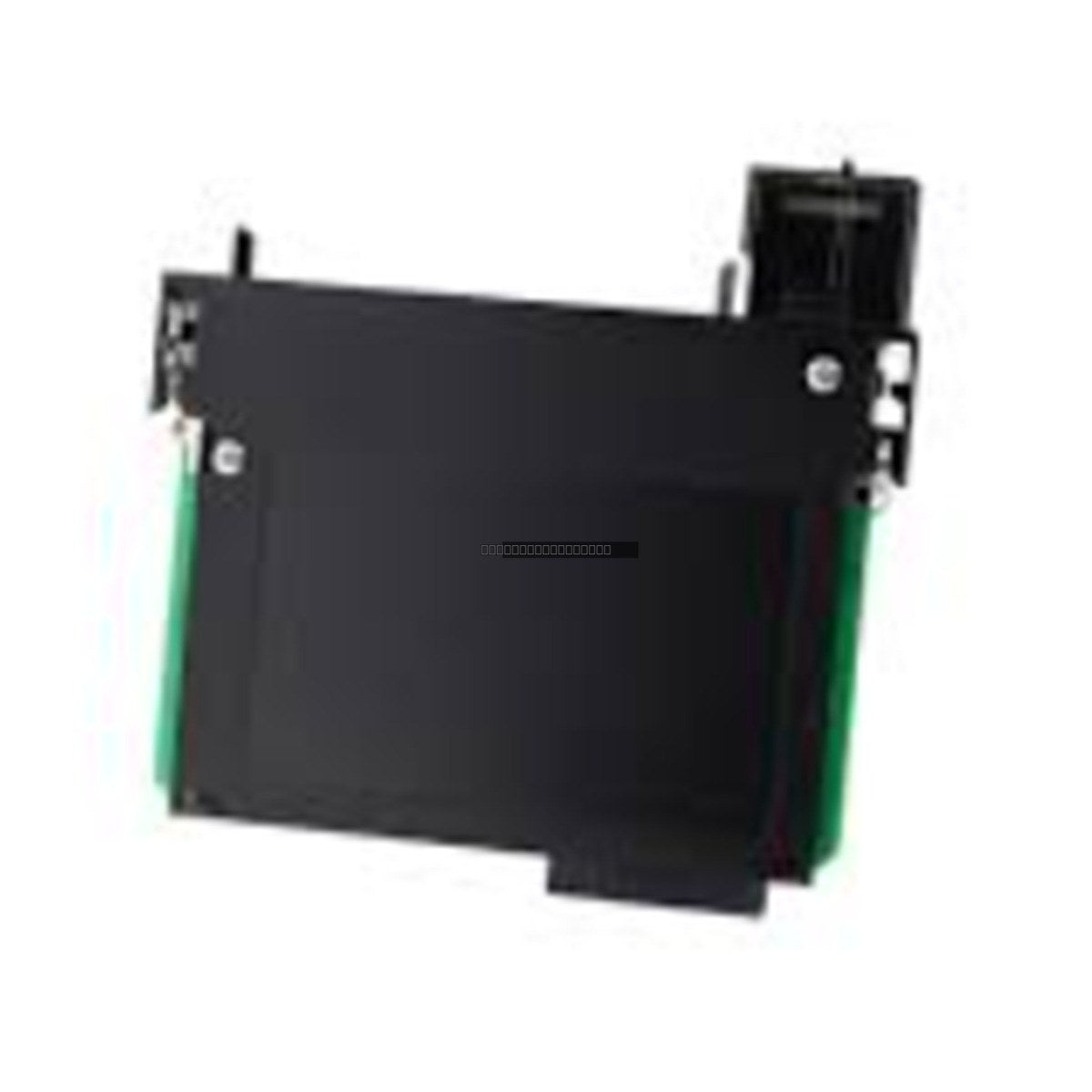

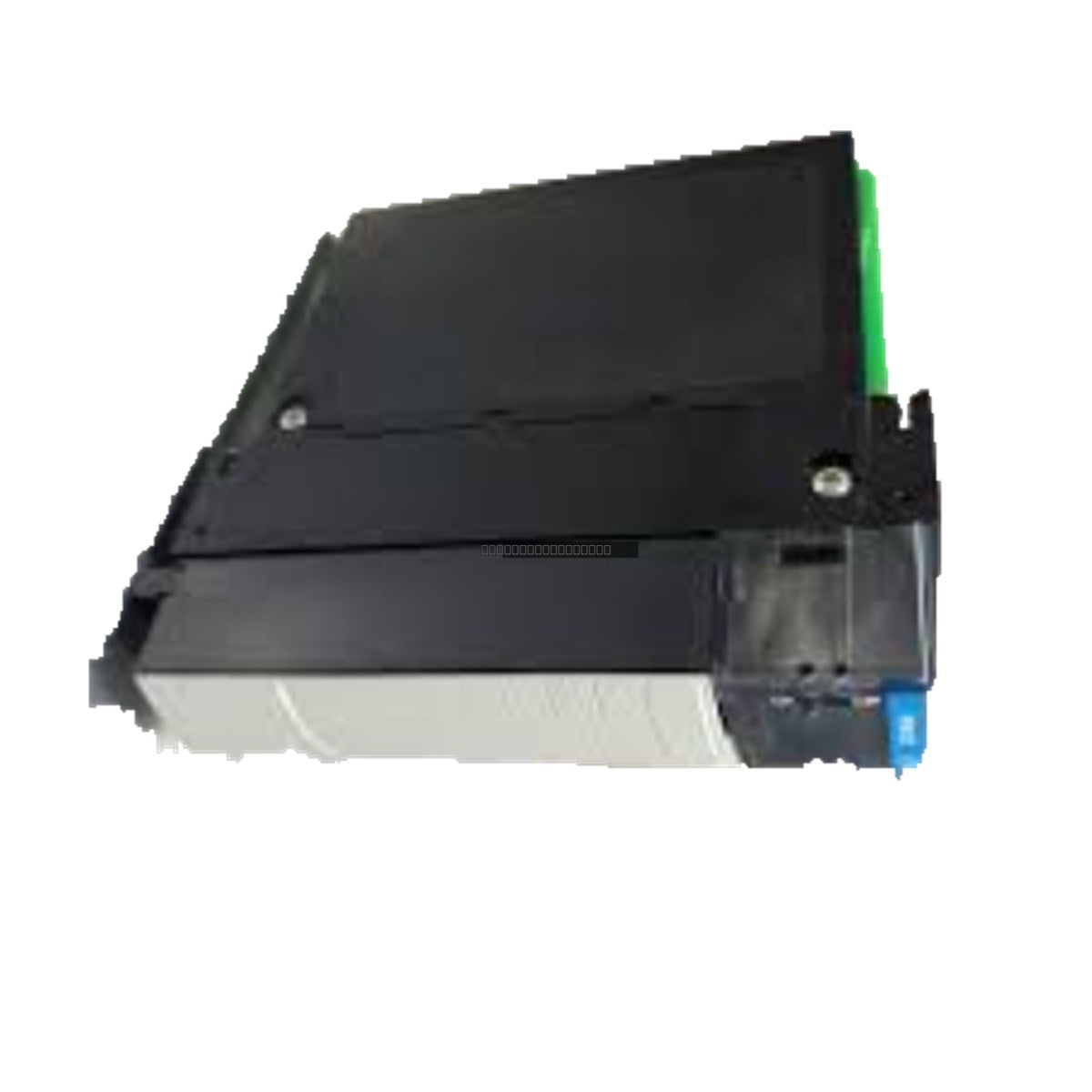

The Allen-Bradley 1756-IB16 is a high-density digital input module designed for the ControlLogix platform. This module provides 16 input points, supporting 12/24V DC sinking input configurations, making it suitable for a wide range of industrial automation applications requiring reliable signal acquisition.

Features

• 16-point digital input capacity for efficient I/O management.
• Supports 12/24V DC sinking input signal types.
• Integrated electronic keying to prevent incorrect module insertion.
• Optimized for use within the standard ControlLogix chassis environment.
• Robust thermal performance with a power dissipation of 5.1 W at 60 degC.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before installing or removing any I/O module to prevent electrical damage.
• Verify that the module is correctly seated in the chassis slot and that the backplane connector is fully engaged.
• Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Adhere to proper grounding practices for the ControlLogix chassis to maintain signal integrity.
• Maintain adequate clearance around the module to allow for proper ventilation and heat dissipation.

Applications

The 1756-IB16 is widely utilized in manufacturing, process control, and material handling systems where high-density digital input monitoring is required. It is compatible with standard sensors, switches, and other 12/24V DC discrete signal sources integrated into the Allen-Bradley ControlLogix architecture.

FAQ

What is the primary function of the 1756-IB16?
This module acts as a digital interface, converting 16 discrete 12/24V DC input signals into digital data for processing by the ControlLogix controller.

Does this module support electronic keying?
Yes, the 1756-IB16 features electronic keying, which helps ensure that the correct module type is placed in the designated slot, reducing the risk of wiring errors.
