Description

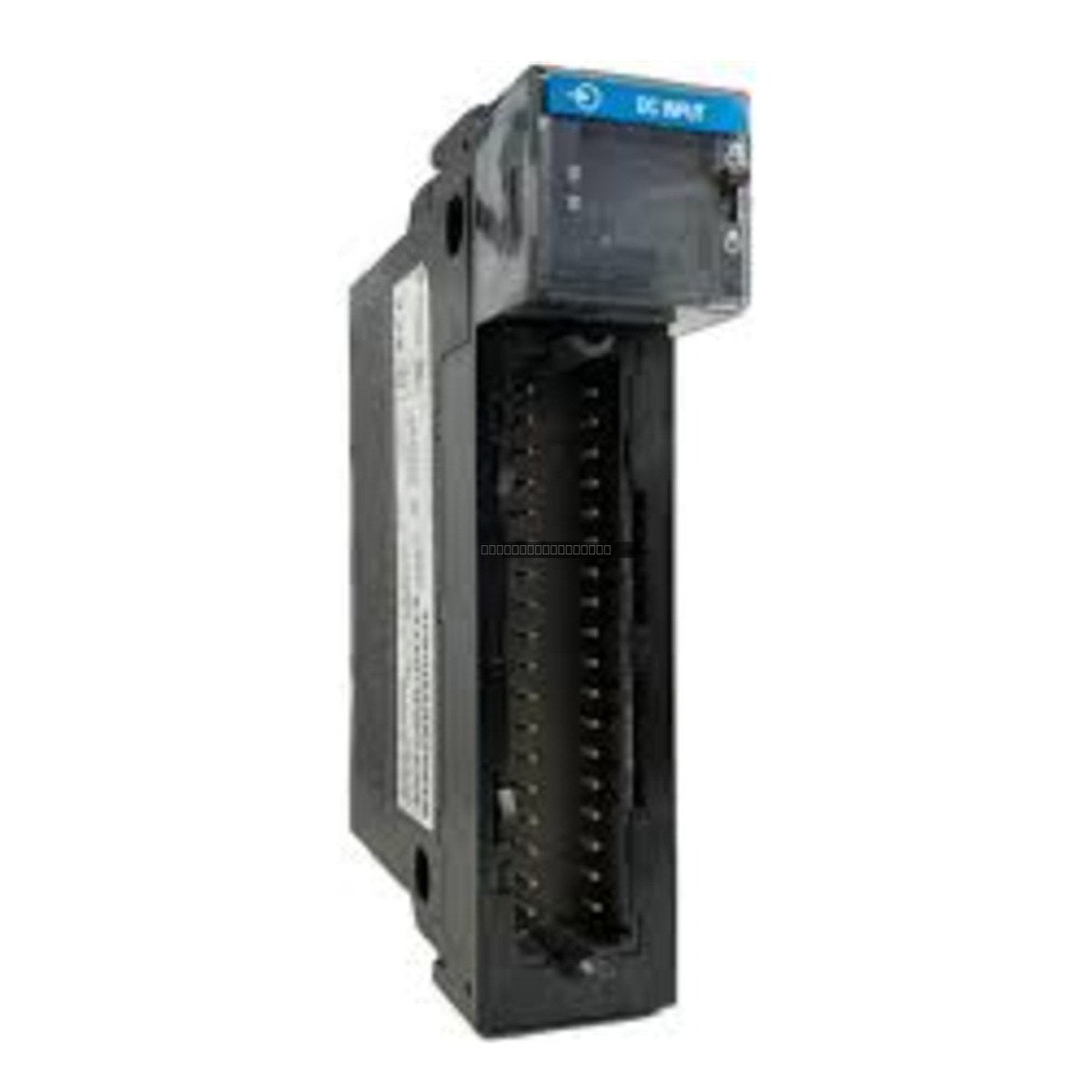

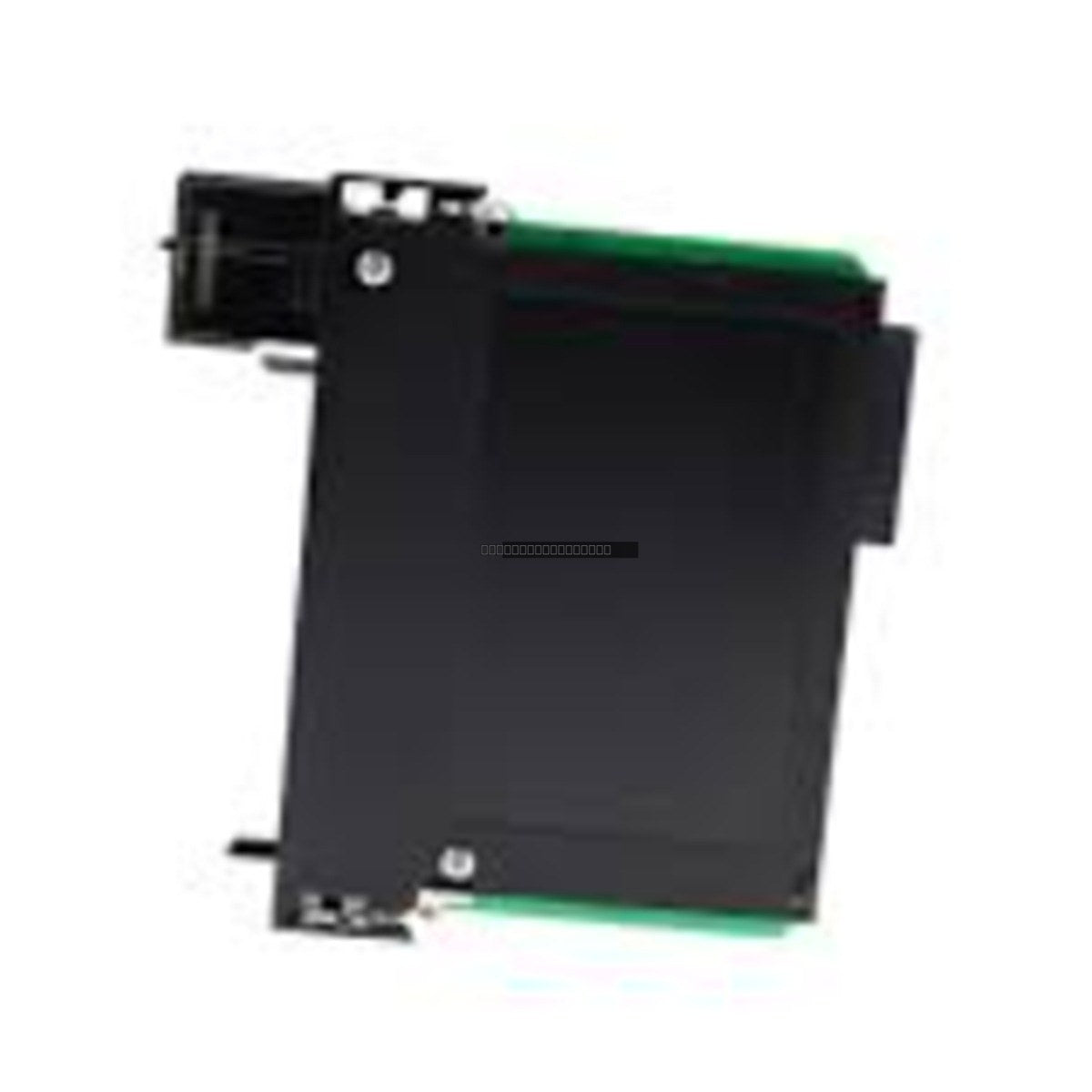

The Allen-Bradley 1756-IB16D is a high-performance 16-point diagnostic digital input module designed for the ControlLogix platform. This module is engineered to provide reliable input status monitoring in industrial automation environments, supporting 12-24V DC sink input configurations. By incorporating diagnostic capabilities, the module assists in identifying fault conditions, which helps reduce system downtime and improves overall maintenance efficiency.

Features

• 16 diagnostic digital input points for comprehensive system monitoring.
• Supports 12-24V DC sink input voltage ranges.
• Wide operating voltage range of 10-30V DC to accommodate varying power supply conditions.
• Diagnostic features allow for proactive fault detection and troubleshooting.
• Optimized power dissipation of 5.8 Watts at 60 degC.
• Low backplane current draw of 150mA at 5V DC.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module.
• Use appropriate ESD protection measures when handling the module to prevent damage to sensitive internal components.
• Install the module in an appropriate ControlLogix I/O slot and ensure the locking mechanism is fully engaged.
• Verify that field wiring is routed correctly and shielded if necessary to minimize electromagnetic interference (EMI).
• Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the 1756-IB16D?
The 1756-IB16D is a ControlLogix digital input module used to interface field devices with the PLC system, specifically providing diagnostic feedback for each of its 16 input points.

Does this module support source input wiring?
No, the 1756-IB16D is designed for sink input configurations. Please verify your field device wiring requirements before installation.

What is the maximum power dissipation for this unit?
The module has a maximum power dissipation of 5.8 Watts when operating at a temperature of 60 degC.
