Description

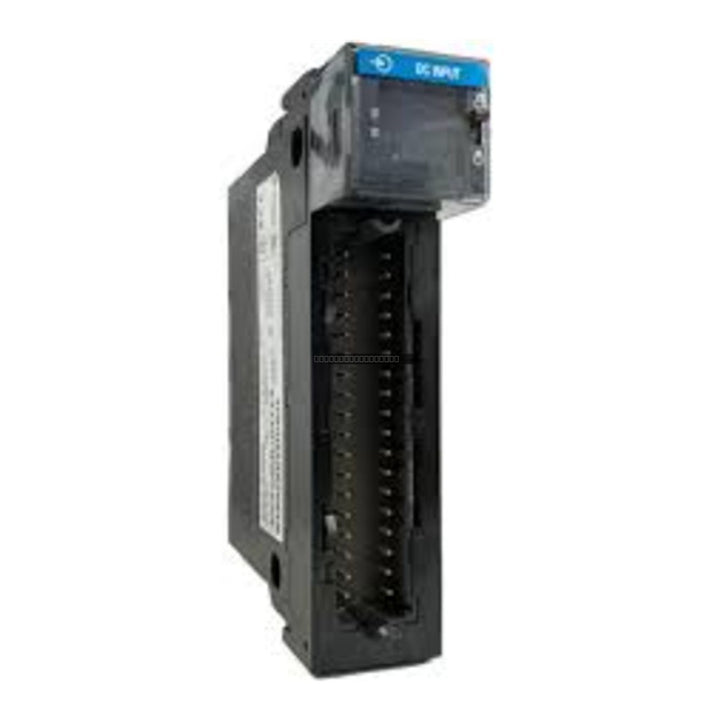

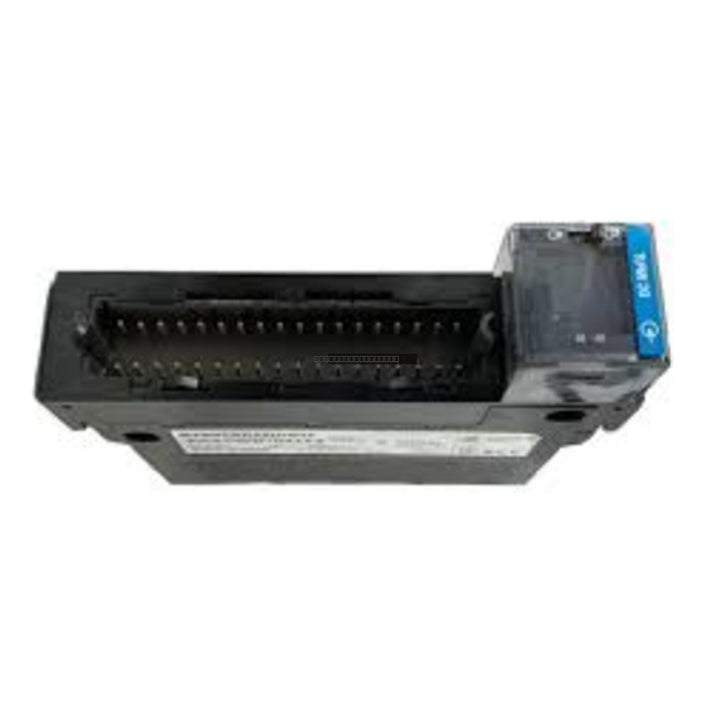

The Allen-Bradley 1756-IB16IF is a high-performance, 16-point fast digital input module designed for the ControlLogix platform. This module is engineered for applications requiring rapid response times and enhanced signal isolation, ensuring reliable data acquisition in demanding industrial environments. It supports a wide operating voltage range of 10-30V DC and provides peer-to-peer communication capabilities, making it a versatile choice for complex automation architectures.

Features

• 16 isolated digital input points for high-density signal processing.
• Fast input response times suitable for time-critical automation tasks.
• Integrated module health and communication status diagnostics.
• Peer-to-peer communication support for distributed control applications.
• Designed for seamless integration into the ControlLogix chassis.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the chassis slot and the locking mechanism is engaged.
• Use appropriate shielded cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain adequate ventilation around the chassis to prevent overheating, keeping within the rated power dissipation limits.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 1756-IB16IF?
This is a fast, isolated digital input module used to interface field input devices with a ControlLogix controller, providing rapid signal processing and isolation.

Does this module support peer-to-peer communication?
Yes, the 1756-IB16IF supports peer-to-peer communication, allowing for direct data exchange between modules within the system.

What is the voltage range for this module?
The module operates within a 10-30V DC range, making it compatible with standard 24V DC industrial control systems.
