Description

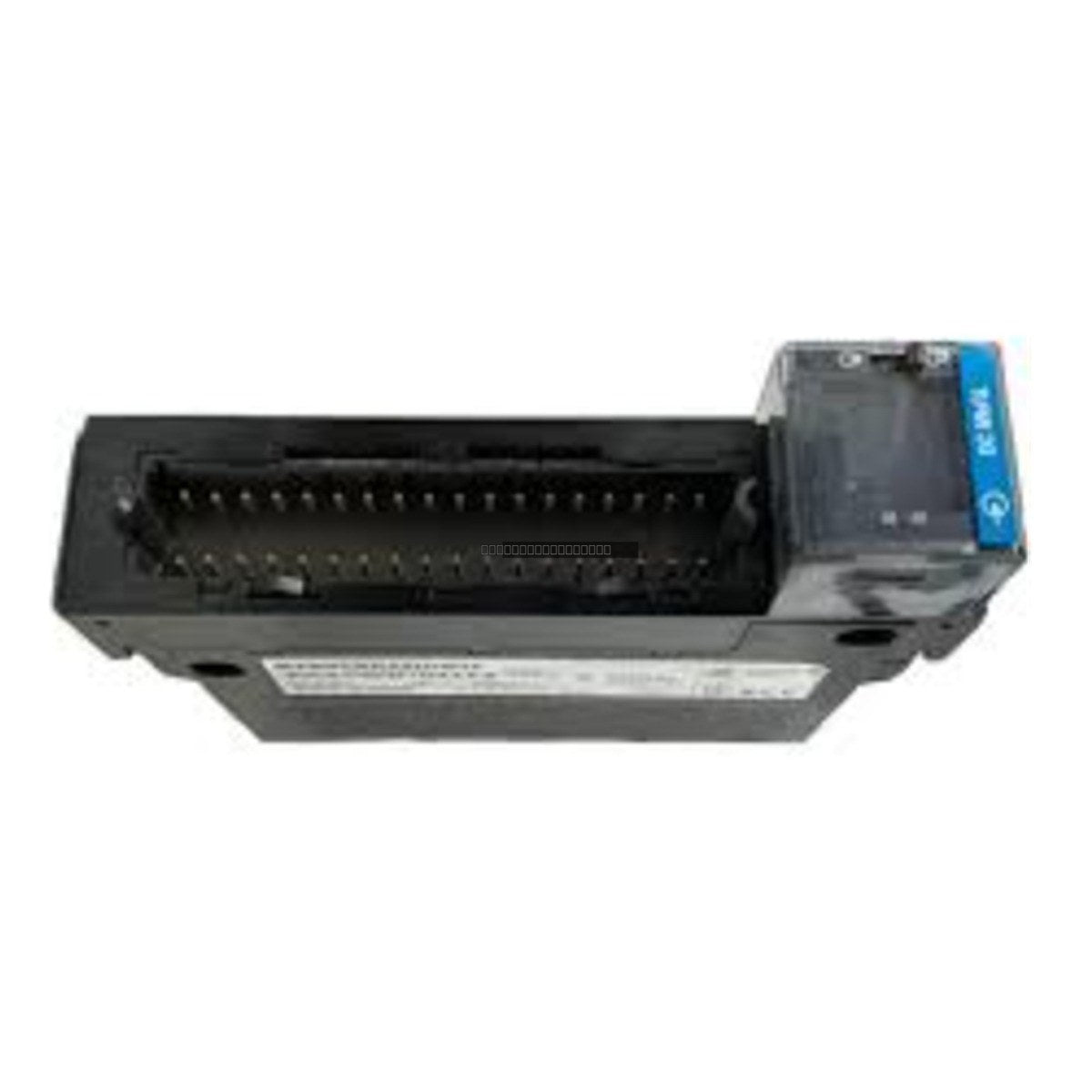

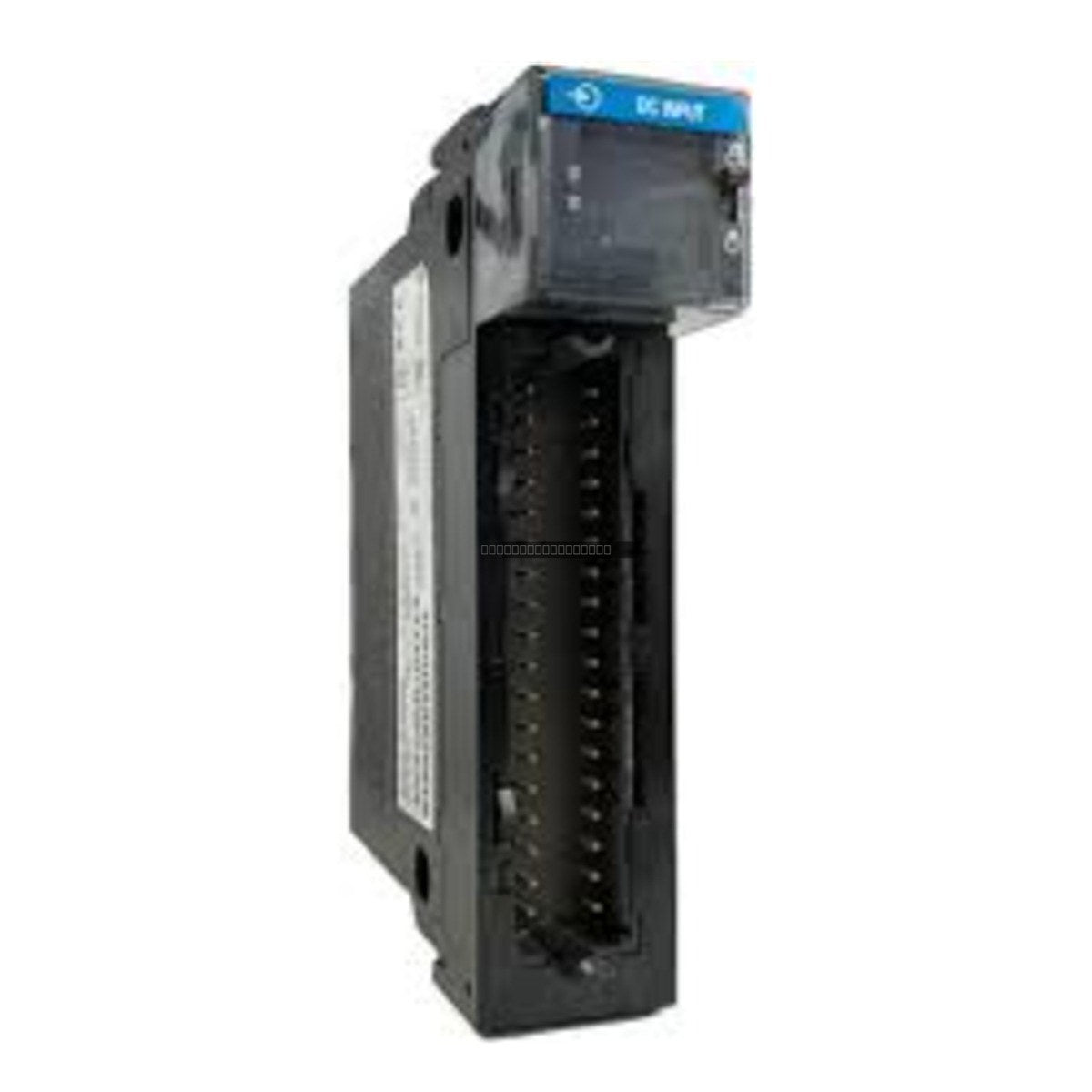

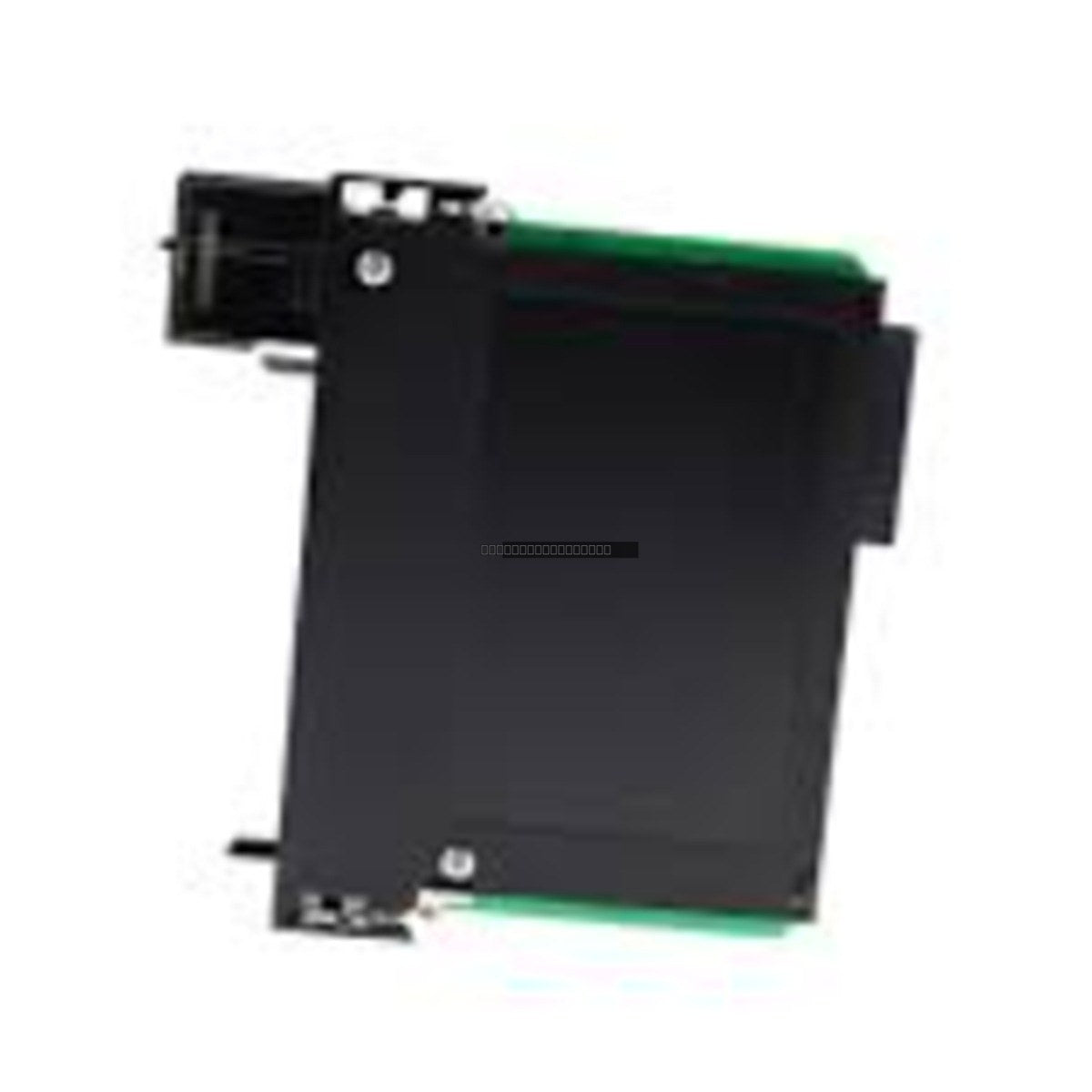

The Allen-Bradley 1756-IB16ISOE is a specialized 16-point DC digital input module designed for the ControlLogix platform. Engineered for high-precision timing, this module supports Sequence of Events (SOE) recording, enabling users to capture and timestamp critical system events with high resolution. It features individually isolated inputs, providing enhanced noise immunity and flexibility in complex industrial control environments.

Features

• 16 individually isolated DC input channels.
• Integrated Sequence of Events (SOE) recording functionality.
• Wide operating voltage range of 10-55 VDC.
• Front-panel status indicators for input state, communication health, and module diagnostics.
• Supports both sink and source wiring configurations.
• Optimized for high-speed event capture with configurable input filtering.

Applications

This module is ideal for applications requiring precise event logging, such as power distribution monitoring, safety-critical interlocking, and diagnostic analysis of industrial processes where the exact order of operations must be maintained for troubleshooting or regulatory compliance.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the chassis slot and that the backplane connector is fully engaged.
• Use shielded twisted-pair cabling for input wiring to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices for the chassis and field wiring to ensure signal integrity.
• Follow standard ESD precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 1756-IB16ISOE?
This module is designed for digital input acquisition with the added capability of Sequence of Events (SOE) recording, which allows for precise timestamping of state transitions.

Does this module require external isolation?
No, the 1756-IB16ISOE features individually isolated inputs, which provides electrical isolation between channels and the backplane.
