Description

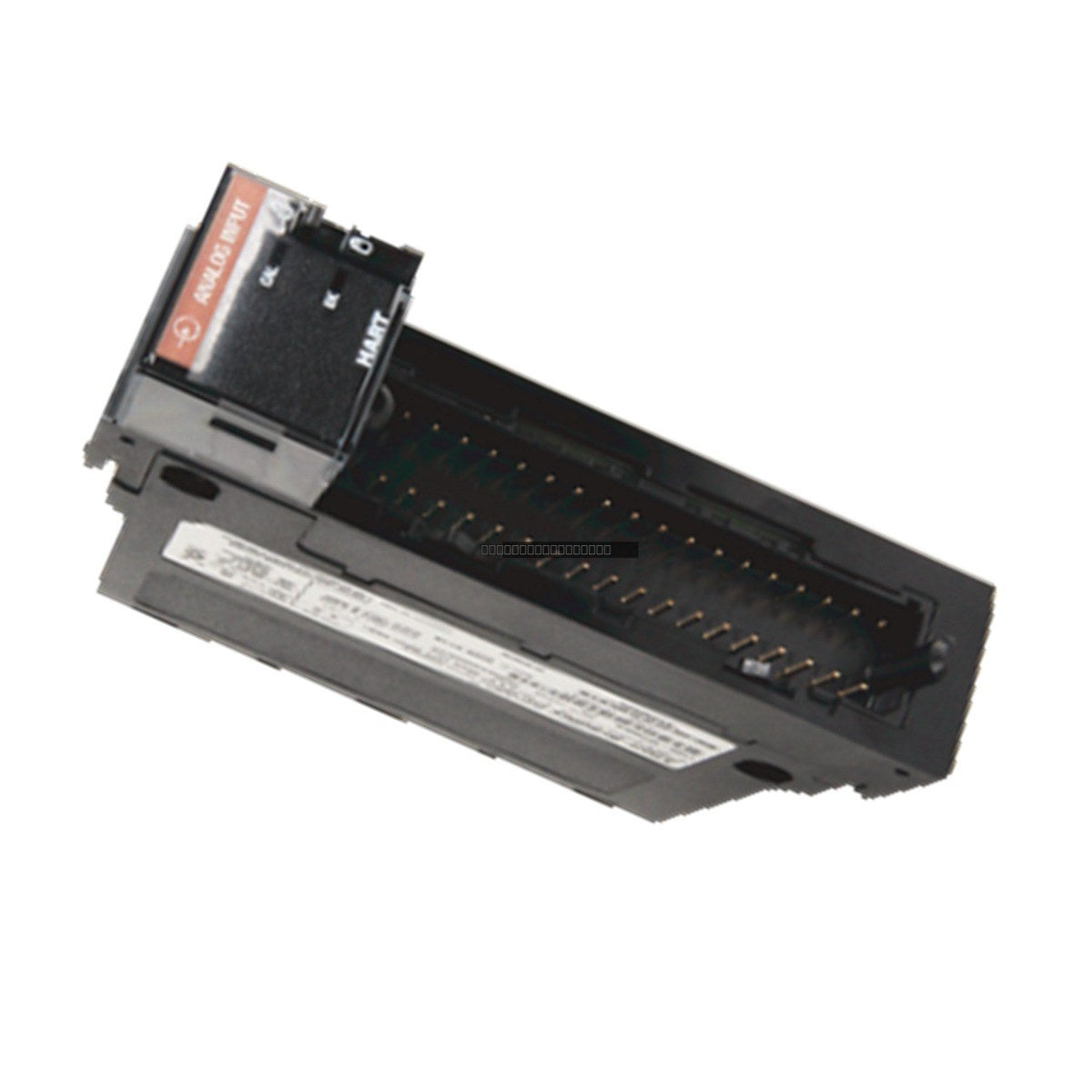

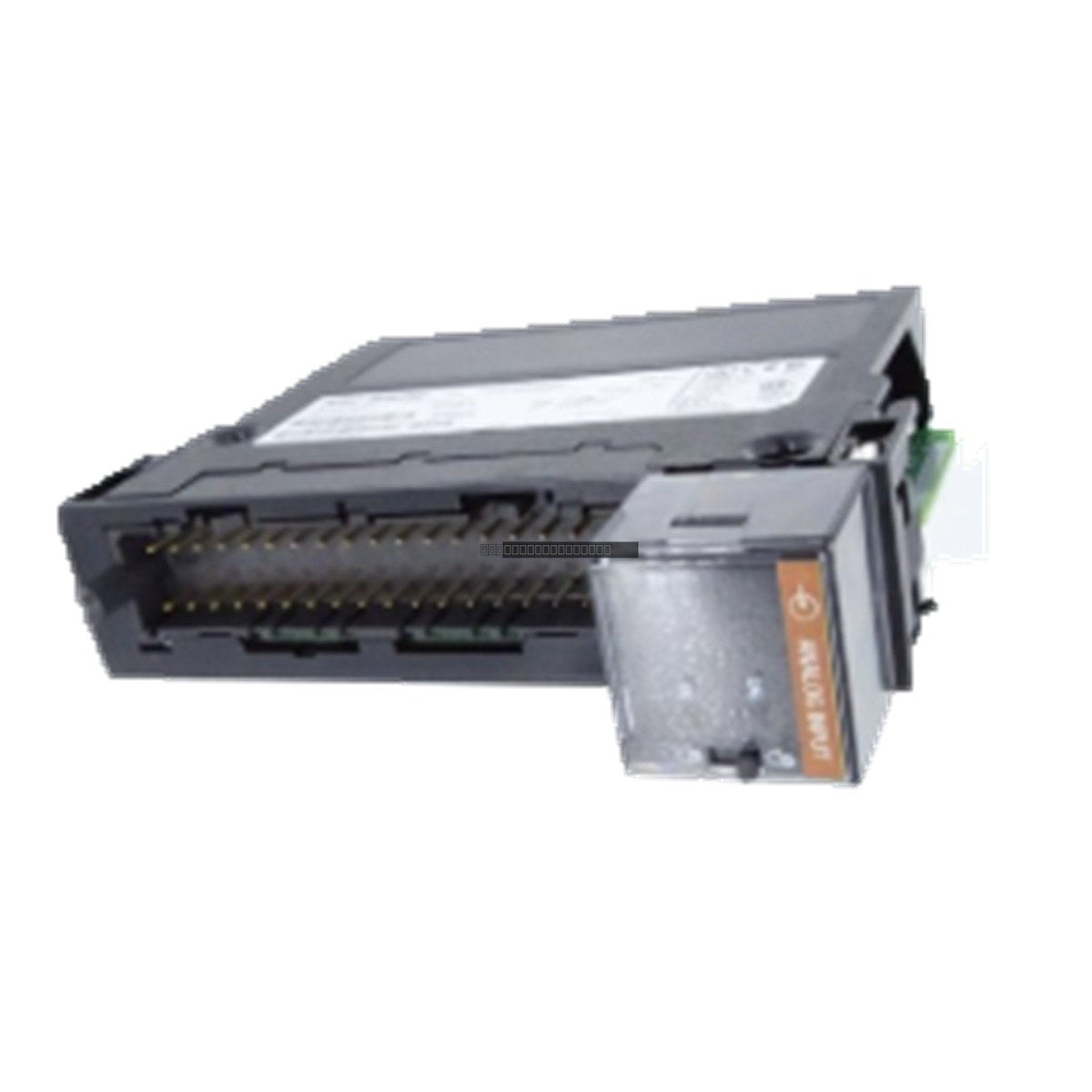

The Allen-Bradley 1756-IF16H is a high-density analog input module designed for the ControlLogix platform. This module provides 16 differential analog input channels with integrated HART (Highway Addressable Remote Transducer) protocol support, allowing for advanced diagnostics and configuration of field devices directly through the control system. It is engineered to deliver precise signal monitoring in demanding industrial environments, ensuring seamless integration with existing ControlLogix architecture.

Features

• 16 isolated differential input channels for high-density signal processing.
• Integrated HART communication support for intelligent field device management.
• Compatible with standard ControlLogix chassis and backplane power.
• Supports configurable input ranges to accommodate various sensor types.
• Provides comprehensive diagnostic data for improved maintenance and troubleshooting.

Applications

This module is typically deployed in process control applications where HART-enabled instrumentation is utilized, such as chemical processing, oil and gas, and power generation facilities. It is ideal for monitoring pressure, temperature, flow, and level transmitters that require both analog process variables and digital diagnostic information.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is properly seated in the chassis slot and that the locking tab is engaged.
• Use appropriate shielded cabling to minimize EMI/RFI interference, especially when dealing with low-level analog signals.
• Follow standard grounding procedures for the ControlLogix system to maintain signal integrity.
• Avoid installing the module in areas with excessive vibration or extreme temperatures outside the manufacturer's specified operating range.

FAQ

Does this module support HART device configuration?

Yes, the 1756-IF16H is specifically designed to facilitate HART communication, allowing for the configuration and monitoring of HART-compatible field devices through the ControlLogix system.

Is this module compatible with all ControlLogix chassis?

The 1756-IF16H is designed for the standard ControlLogix I/O chassis. Please ensure your firmware and Studio 5000 / RSLogix 5000 software versions support this specific module before installation.
