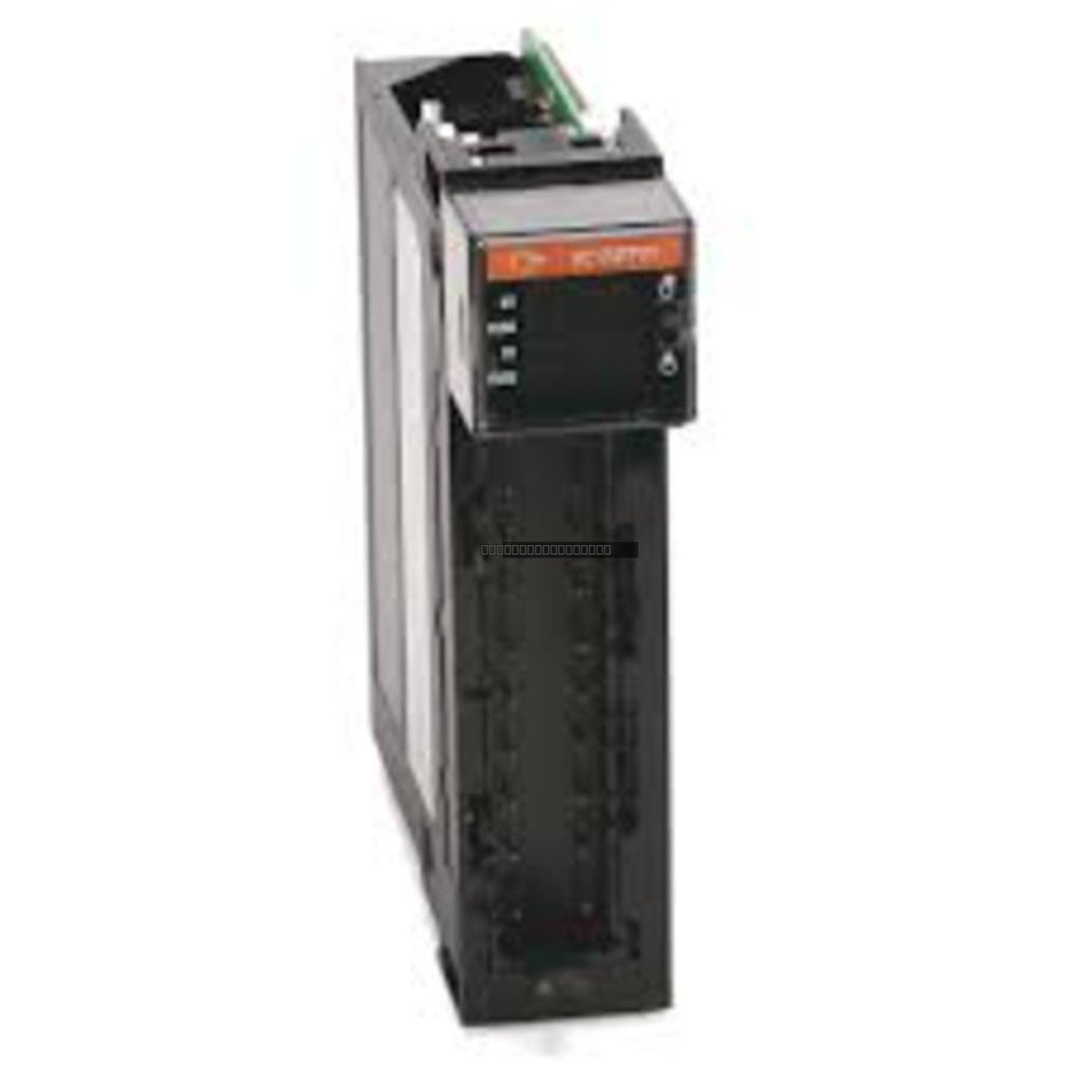

The Allen-Bradley 1756-IF8I is a high-performance analog input module designed for the ControlLogix platform. This module provides eight isolated input channels, allowing for flexible configuration across various industrial measurement applications. It supports both voltage and current signals, making it a versatile solution for process control and monitoring tasks requiring galvanic isolation between channels.

Features

• Eight isolated analog input channels.
• Supports configurable signal ranges including -10 to 10V, 0 to 10V, 0 to 5V, and 0 to 20mA.
• Sigma-Delta conversion method for high-resolution data acquisition.
• 16-bit to 21-bit resolution depending on configuration.
• Compatible with the standard ControlLogix backplane architecture.

Applications

This module is engineered for use in demanding industrial environments where signal isolation is critical to prevent ground loops and noise interference. It is frequently utilized in process automation, chemical processing, power generation, and manufacturing systems that require precise monitoring of analog sensors and transmitters.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Properly seat the module into the designated slot on the backplane and secure it using the integrated latching mechanism.
• Use shielded twisted-pair cabling for all analog inputs to minimize EMI and ensure signal integrity.
• Verify that all field wiring is terminated correctly at the Removable Terminal Block (RTB) before applying power.
• Maintain adequate ventilation around the chassis to ensure optimal operating temperatures.

FAQ

Is the 1756-IF8I module isolated? Yes, this module features 8 isolated channels, providing electrical separation between inputs to improve system reliability and noise immunity.

What is the resolution of this module? The 1756-IF8I provides a resolution ranging from 16 to 21 bits, depending on the specific input range and filter settings selected.
