Description

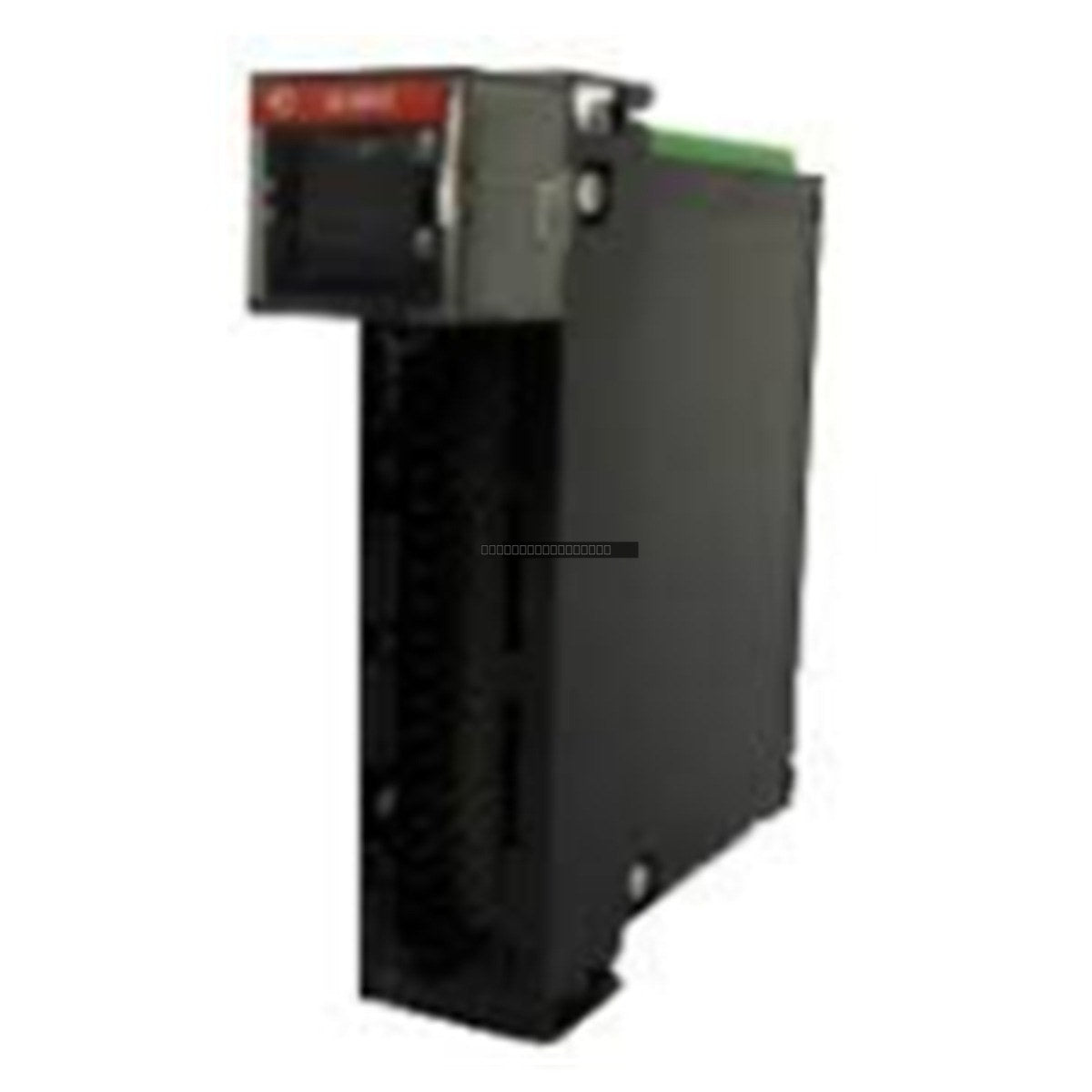

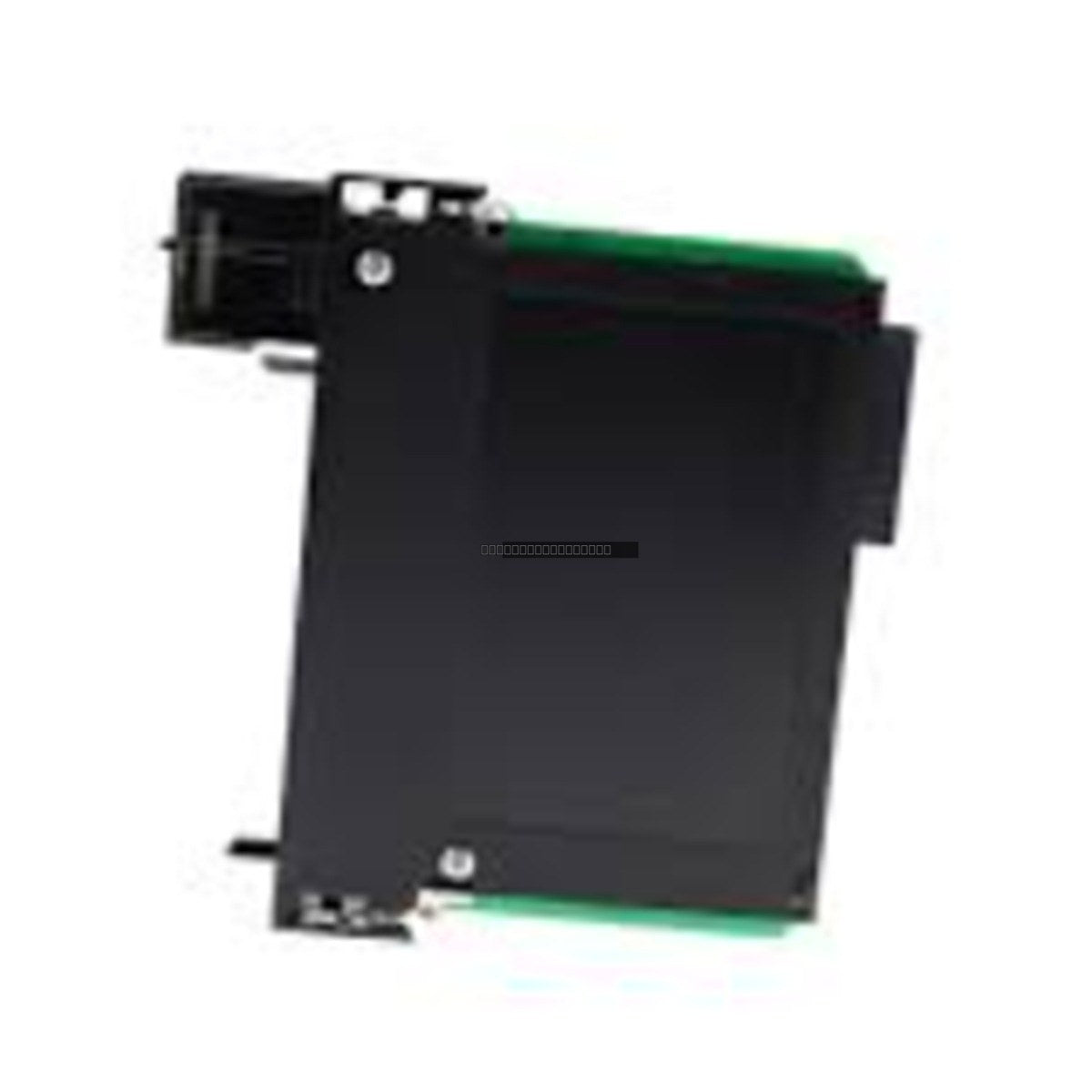

The Allen-Bradley 1756-IR6I is a high-performance isolated RTD input module designed for the ControlLogix platform. This module provides six isolated input channels, allowing for precise temperature monitoring and data acquisition in demanding industrial environments. It is engineered to support a variety of platinum RTD sensors, ensuring compatibility with standard industrial instrumentation.

Features

• 6 isolated input channels for RTD sensing.
• 16-bit resolution for high-accuracy temperature measurements.
• Compatibility with 100, 200, 500, and 1000 Ohm platinum RTD sensors.
• Designed for integration into standard ControlLogix chassis architectures.
• 20-pin terminal block interface for secure wiring connections.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before installing or removing the module to prevent electrical damage or bus errors.
• Verify that the module is fully seated in the chassis slot and that the locking tab is engaged.
• Use shielded cabling for RTD connections to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Maintain proper grounding practices for the chassis and field wiring to reduce noise and potential ground loops.
• Ensure adequate ventilation around the chassis to maintain operating temperatures within the specified limits.

FAQ

What types of RTD sensors are compatible with the 1756-IR6I?
This module supports 100, 200, 500, and 1000 Ohm platinum RTD sensors.

Does this module require external power for the RTD sensors?
The 1756-IR6I is designed to interface with RTD sensors directly; refer to the official Allen-Bradley user manual for specific wiring diagrams and excitation requirements.
