Description

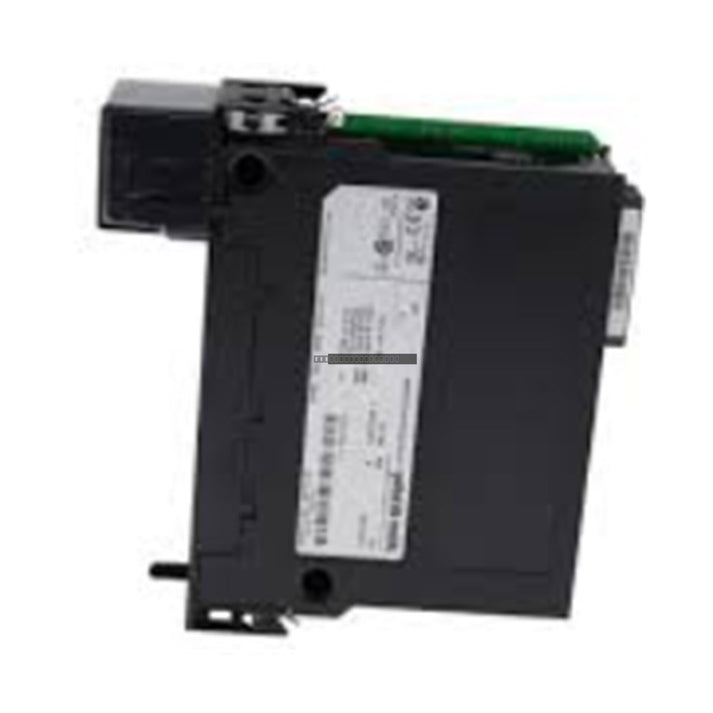

The Allen-Bradley 1756-IT6I is a high-performance analog input module designed for the ControlLogix platform. This module provides six isolated channels specifically engineered for thermocouple signal processing. It offers precise temperature monitoring capabilities, supporting a wide range of standard thermocouple types to ensure compatibility with diverse industrial sensing requirements.

Features

• Six isolated thermocouple input channels for noise immunity and signal integrity.
• Integrated Cold Junction Compensation (CJC) for accurate temperature readings.
• Supports a broad array of thermocouple types including B, C, E, J, K, N, R, S, and T.
• Designed for seamless integration into the ControlLogix backplane.
• Low power dissipation design suitable for high-density chassis configurations.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Use shielded thermocouple extension wire to minimize electromagnetic interference (EMI) in industrial environments.
• Verify that the Removable Terminal Block (RTB) is securely seated and locked into the module housing.
• Maintain adequate spacing within the chassis to allow for proper airflow and heat dissipation.
• Follow standard ESD (electrostatic discharge) precautions when handling the module to protect internal circuitry.

FAQ

What types of thermocouples are supported by the 1756-IT6I?
The module supports types B, C, E, J, K, N, R, S, and T.

Does this module require a specific terminal block?
Yes, the 1756-IT6I is compatible with the 1756-TBNH and 1756-TBSH removable terminal blocks.

What is the maximum power dissipation for this unit?
The maximum power dissipation is 4.3 Watts.
