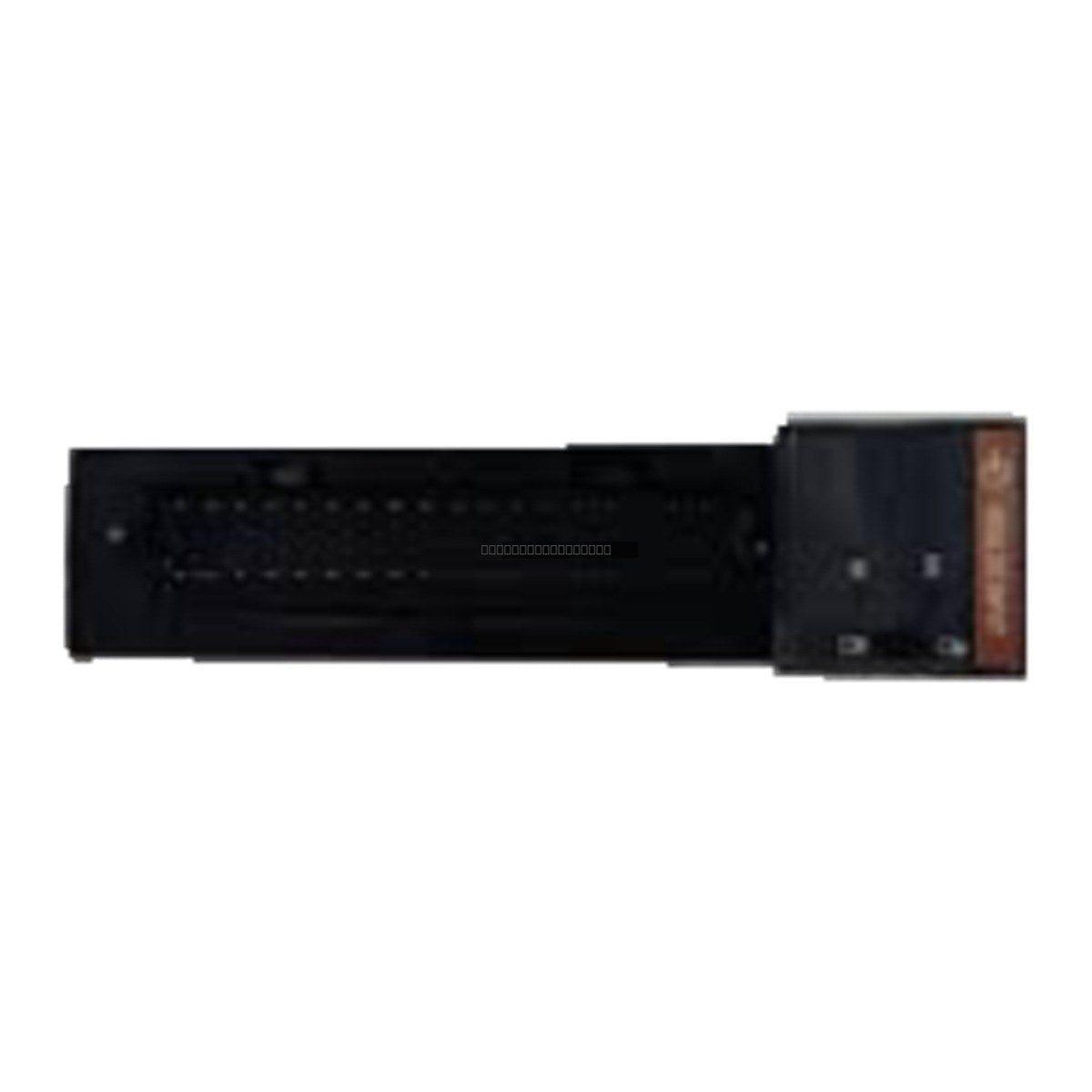

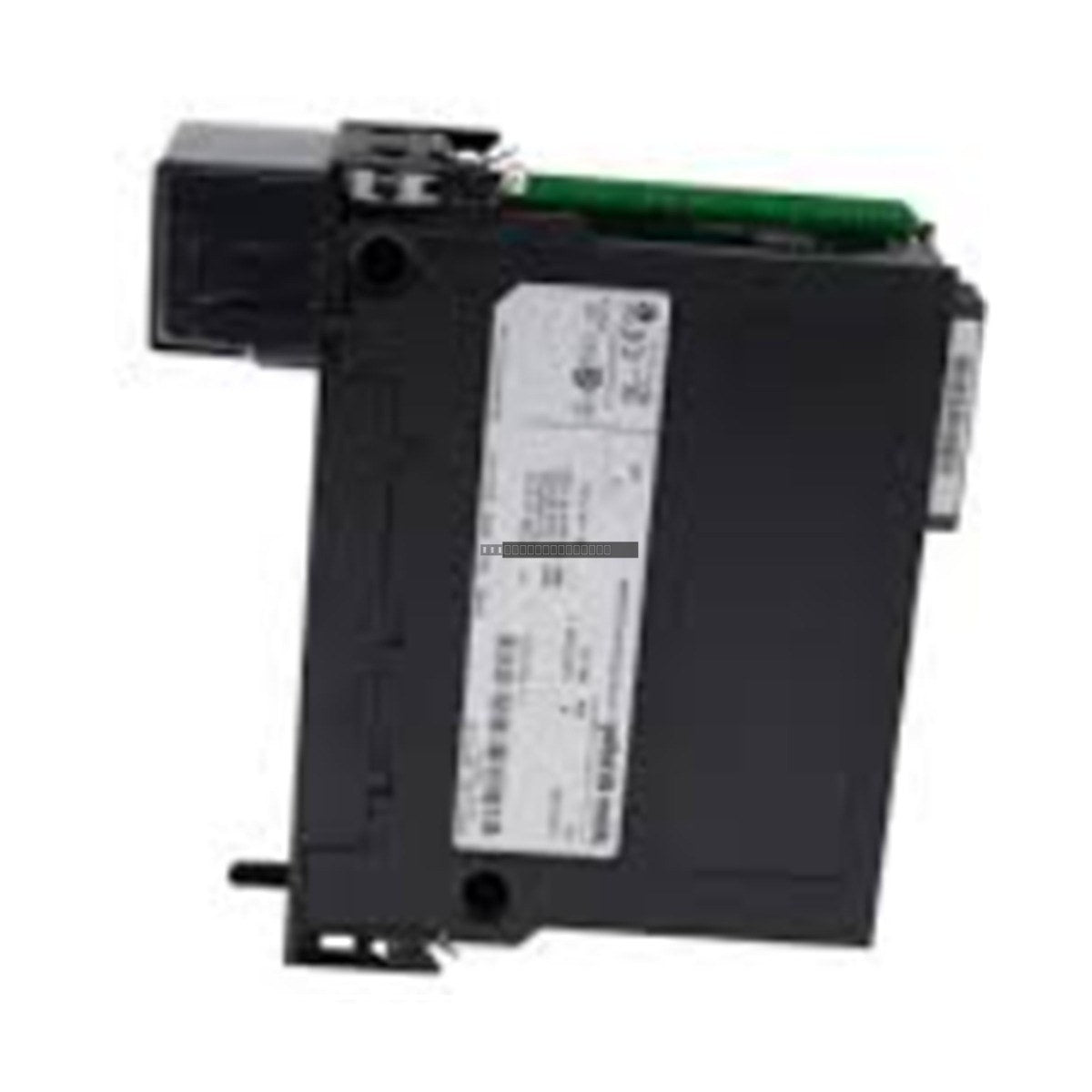

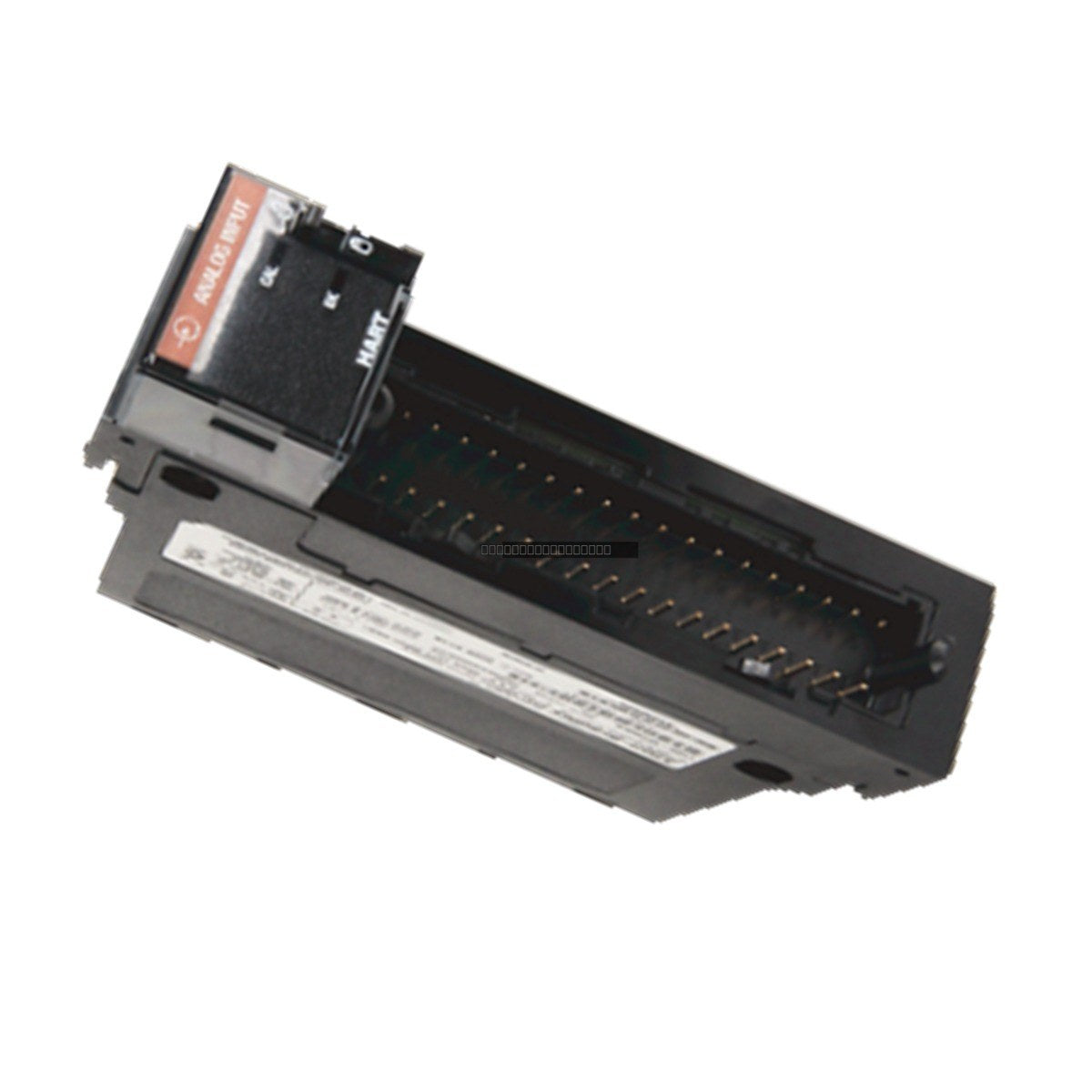

The Allen-Bradley 1756-IT6I2 is an enhanced isolated thermocouple input module designed for the ControlLogix platform. This module provides six isolated input channels, specifically engineered to interface with various thermocouple types for high-precision temperature monitoring in industrial control environments.

Features

• Six isolated input channels for thermocouple temperature sensing.
• High-resolution 16-bit analog-to-digital conversion.
• Enhanced isolation to minimize signal noise and ground loop interference.
• Configurable input ranges including -12 to 78 mV and -12 to 30 mV.
• Compatible with standard ControlLogix backplane power requirements.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis power is disconnected before installing or removing the module.
• Use a compatible Removable Terminal Block (RTB) such as the 1756-TBNH or 1756-TBSH for secure field wiring.
• Maintain proper grounding practices to protect against EMI; use shielded thermocouple cabling where necessary.
• Ensure adequate airflow within the enclosure to accommodate the 4.6W maximum power dissipation.
• Verify that the module is fully seated in the chassis slot and the locking latch is engaged.

FAQ

Is the 1756-IT6I2 still in production? No, this module was discontinued by the manufacturer effective March 31, 2017. We provide these units as legacy spare parts.

What terminal blocks are compatible with this module? The 1756-IT6I2 is designed for use with the 1756-TBNH or 1756-TBSH removable terminal blocks.
